DCTWB-400B

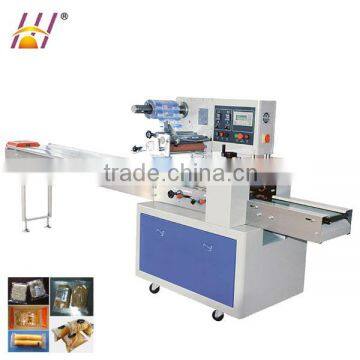

Horizontal pillow bag packaging machinery for chocolate bar, candies, fruit pies, rolls
1:Panasonic PLC&inverter
2:Magic eye, pillow bag,use compound roll film
3,Bag width: adjust bag maker
4,Bag lendth: could be set on the machine interface.
5,Machine frame: carbon steel or SS
Technical parameter:
Type | DCTWB-400B |
Film width | Max.400mm |
Bag length | 130-320mm |
Bag width | 50-185mm |
Product height | Max.40mm |
Film roll diameter | Max.320mm |
Packaging rate | 30-180bags/min |
Power | 220V 50/60Hz 2.6KW |
Machine size | (L)4020*(W)800*(H)1450mm |
Machine weight | 900kg |
remarks | Option air filling device |
Applications:
Packaging various kinds of regular objects like biscuits, pies, chocolates, instant noodles, cookies, candies, pies, bread, roll, drugs, daily appliances, industrial parts, paper boxes, plates etc.
Feature:
1, Dual transducers control and bag length can be let and cut in one step.
2, Interface are easy and quick to set and operate.
3, Failures can be self-diagnosised and displays clearly.
4, High sensitivity electrical eye traces and sealing position is input numerically for accuracy.
5, PID control temperature independently which is more suitable for packing different materials.
6, Positioned stop function without sticking knife and wasting film
7, Simple driving system, reliable working ,convenient maintenance.
8, All control is realized through software.easy for function adjusing and technical upgrading.
After-sale service:
1. One year quality guarantee, operating manual, tools and spare parts will be shipped with machine together.
2. Supply spare parts at low cost for life span.
3. Online technic service and offer solution within 24 hours in case of problem arise.
4. Staff training when you come to our factory.
Remark:
1. Machine Package: plastic film + wooden case.
2. Payment terms: 30% deposit should to be paid when order, 70% balance will be paid before delivery the goods to Chinese port.
3. Lead time: 20-35 days after receipt of desopit .
4. Stochastic bag forming 1 pcs.
5. Price availability: within 2 months.
6. Warranty: one year (Attention: Machine's warranty range don't include quick-wear parts; for other parts, providing new free parts for clients in a warranty period).
7. Tenure of use: over 10 years.
