Home > Products > Multi-function Horizontal Flow Packaging Machine > Down-paper Pillow Packing Machine for Jelly candy
Down-paper Pillow Packing Machine for Jelly candy
- 50 Set / Sets per Month
- Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
- CE certificated hydraulic press/Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
- 20 years manufacturer, automatic hay and straw baling machine
- more than 20 years factroy supply CE certificated used clothes and textile baling machine
- more than 20 years factory supply Hard plastic/ Fiber/Cotton/Woolen/Clothes/Textile Baler machine press
- more than 20 years factory supply plastic baler machine
- more than 20 years factory supply Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
Product Details
Condition: | New | Application: | Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, industry or electronic parts | Packaging Type: | Bags, Capsule, Case, Film, Pouch, Stand-up Pouch |
Packaging Material: | Paper, Plastic, Wood | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 220V | Power: | 2.4kw or 2.8kw | Place of Origin: | Guangdong, China |
Brand Name: | Chuansong | Model Number: | DCTWB-250X 350X | Weight: | 800/900kg |
Dimension(L*W*H): | 3900*940*1500mm | Certification: | SGS | After-sales Service Provided: | No overseas service provided |
Product Description

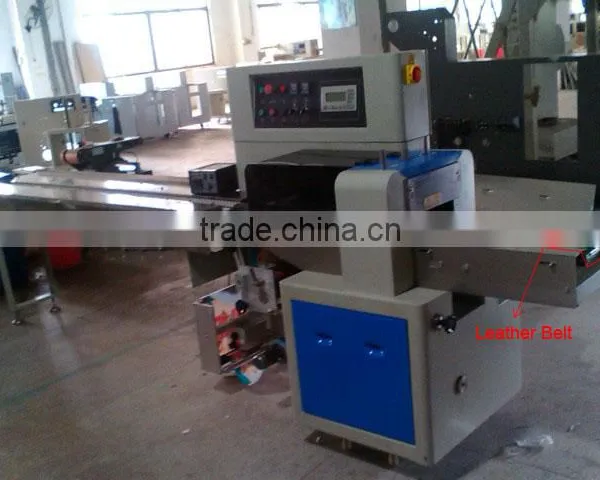

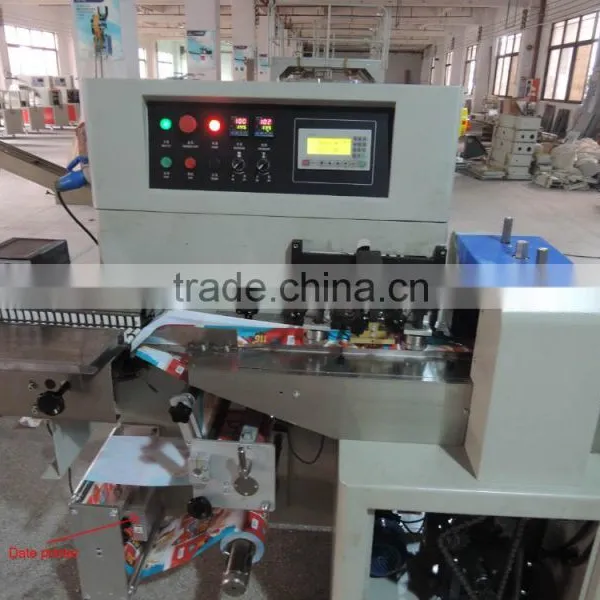

Down film Horizontal flow packing machine for jelly candy, confection etc.
Specifications
Type | DCTWB-250X | DCTWB-350X |
Film width | Max.250mm | Max.350mm |
Bag length | 65-190mm or 120-280mm | |
Bag width | 30-110mm | 50-160mm |
Product height | Max.40mm | |
Film roll diameter | Max.320mm | |
Packing rate | 40-230bags/min | |
Power | 220v 50/60Hz 2.4kw | 220v 50/60Hz 2.8kw |
Machine size | (L)3920*(W)670*(H)1320mm | (L)4020*(W)720*(H)1320mm |
Machine weight | 800kg | 900kg |
Remarks | Optional air filing device |
Features
1. Dual transducers control and bag length can be set and cut in one step
2. Interfaces are easy and quick to set and operate.
3. Failures can be self-diagnosed and displays clearly.
4. High sensitivity electrical eye traces and sealing position input numerically for accuracy.
5. PID control temperature independently which is more suitable for packing different materials.
6. Positioned stop function without sticking knife and wasting film.
7. Simple driving system, reliable working, convenient maintenance.
8. All control is realized through software, easy for function adjusting and technical upgrading.
Application
Packing soft, strip and unorganized objects like towels, tissues, noodles, egg rolls, sausages, fish, ice-lollies, soft candies, fresh fruits, etc.
Wooden case or as the customers required.
1. One year quality guarantee, operating manual, tools and spare parts will be shipped with machine together.
2. Supply spare parts at low cost for life span.
3. Online technical service and offer solution within 24 hours in case of problem arise.
4. Staff training when you come to our factory.
1.What’s material of machine frame?
Carbon steel and stainless steel are available.
2.What’s the material for conctacted parts of machine?
Stainless steel
3.For the control panel,how many languages are available?
Usually,English and Chinese are available,if you would like to have other language,pls let us know in advance.
4.What kind of packing film can be used?
Complex film roll,such as OPP/CPP,CPP/PE,MST/PE/PET/PE.
5.What is your advantage?
(1).Stable and reliable performance of machine, competitive price.
(2). To reply your inquiry promptly.
(3). Low price of spare parts if you need more.
(4). In case some malfunction,we promptly offer on-line service, such as E-mail,
Skype, Wechat, Whatsapp to supply videos,pictures.
(5). Professional technicians are available.
6.How to contact us?
To send your inquiry informations to us,pls click "Send".
Welcome to contact us for more informations.
