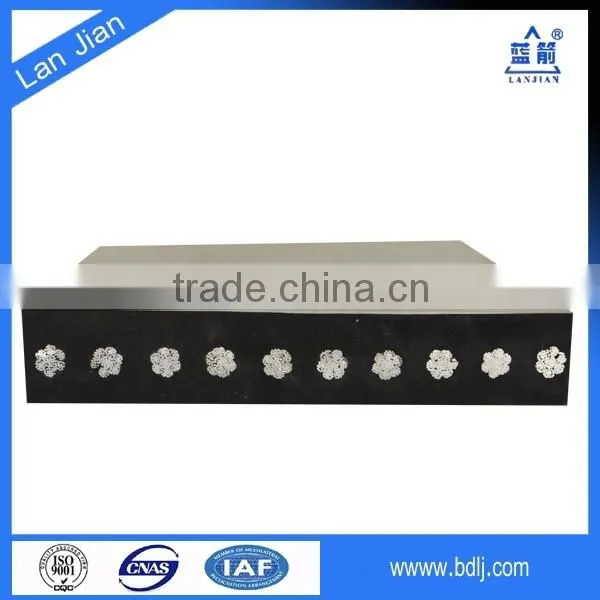

Steel Cord Conveyor Belt
Steel cord conveyor belts are widely used in high strength, long distance and heavy load transportation of materials, and they are also used in high strength and short distance transportation of materials on special occasions.
Application fields: Metallurgy, steel plant, building material and construction, energy, chemical,machinery equipment and port.
Tensile strength: 500 ~ 10000N/mm Width: 500 ~ 3200mm.
The Quantity of the Core
| Specificaiton | Belt Width mm | ||||||||
| 650 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | |
| ST630 | 60 | 75 | 95 | 113 | 133 | 115 | |||
| ST800 | 60 | 75 | 95 | 113 | 133 | 115 | 171 | ||
| ST1000 | 50 | 63 | 79 | 94 | 111 | 126 | 143 | 159 | 176 |
| ST1250 | 50 | 63 | 79 | 94 | 111 | 126 | 143 | 159 | 176 |
| ST1600 | 50 | 63 | 79 | 94 | 111 | 126 | 143 | 159 | 176 |
| ST2000 | 50 | 63 | 79 | 94 | 111 | 126 | 143 | 159 | 176 |
| ST2500 | 40 | 50 | 64 | 76 | 89 | 101 | 114 | 128 | 141 |
| ST2800 | 40 | 50 | 64 | 76 | 89 | 101 | 114 | 128 | 141 |
| ST3150 | 40 | 50 | 64 | 76 | 89 | 101 | 114 | 128 | 141 |
| ST3500 | 50 | 64 | 76 | 89 | 101 | 114 | 128 | 141 | |
| ST4000 | 50 | 64 | 76 | 89 | 101 | 114 | 128 | 141 | |
| ST4500 | 59 | 71 | 84 | 96 | 109 | 121 | 134 | ||
| ST5000 | 55 | 66 | 78 | 90 | 102 | 113 | 125 | ||
| ST5400 | 55 | 66 | 78 | 90 | 102 | 113 | 125 | ||
| ST6300 | 59 | 69 | 80 | 90 | 101 | 111 | |||
| ST7000 | 59 | 69 | 80 | 90 | 101 | 111 | |||
| ST7500 | 54 | 63 | 72 | 82 | 91 | 100 | |||
Main Types Standard of Steel Core Conveyor Belt
| Series | Types | Standard |
| 1 | Common | GB/T9770-2013, DIN22131-88, AS1333-94 |
| 2 | General Flame Resistance | HG2539-93, GB/T9770P, DIN22131K, reference GB/T10822 |
| 3 | Flame Resistance | MT668-2008, GB21352-08, AS1333 |
| 4 | Anti-Tearing | HG/T3646-99 |
| 5 | Heat Tesistance | HG/T2297-92, GB/T20021-2005 |
| 6 | Wear Resistance | GB/T9770D, DIN22131W |
| 7 | Cold Resistance | HG/T3647, GB/T9770P |
Steel Core Conveyor Belt Technical Data
| Type |
Longitudinal Tensile Strength N/m |
Max.Dia. of the Core mm |
Pitch of Cord mm |
Top Cover Thickness mm |
Bottom Cover Thickness mm |
Reference Weight kg/m2 mm |
Recommeded Diameter |
| ST630 | 630 | 3.0 | 10 | 5 | 5 | 18.3 | 500 |
| ST800 | 800 | 3.5 | 10 | 5 | 5 | 19.8 | 500 |
| ST1000 | 1000 | 4.0 | 12 | 6 | 6 | 23.5 | 630 |
| ST1250 | 1250 | 4.5 | 12 | 6 | 6 | 24.7 | 800 |
| ST1600 | 1600 | 5.0 | 12 | 6 | 6 | 26.9 | 800 |
| ST2000 | 2000 | 6.0 | 12 | 8 | 6/8* | 34.3 | 1000 |
| ST2500 | 2500 | 7.2 | 15 | 8 | 6/8* | 38.0 | 1250 |
| ST2800 | 2800 | 7.5 | 15 | 8 | 8 | 39.0 | 1250 |
| ST3150 | 3150 | 8.1 | 15 | 8 | 8 | 41.5 | 1250 |
| ST3500 | 3500 | 8.6 | 15 | 8 | 8 | 42.8 | 1400 |
| ST4000 | 4000 | 8.9 | 15 | 8 | 8 | 46.1 | 1400 |
| ST4500 | 4500 | 9.7 | 16 | 8 | 8 | 48.3 | 1600 |
| ST5000 | 5000 | 10.9 | 17 | 8.5 | 8.5 | 52.2 | 1600 |
| ST5400 | 5400 | 11.3 | 17 | 9 | 9 | 54.8 | 1800 |
| ST6300 | 6300 | 12.8 | 19 | 10 | 10 | 62.0 | 2000 |
| ST7000 | 7000 | 13.5 | 19 | 10 | 10 | 65.3 | 2000 |
| ST7500 | 7500 | 15.0 | 21 | 10 | 10 | 71.0 | 2200 |
Company Information
Why Choose us?
1.We are a manufacturer who has almost 25 years’ produce experience with best production capability. Our plant area is about 140,000 square meters ,and our annual production Value more than 60,000,000 U.S. Dollars.
2.We have advanced production equipment and testing equipment.
3.We have certificates by well-known standards.
4. Our Product quality has been recognized by many enterprises, and we have a long term cooperation with many large enterprises in domestic.
5. All Material we use is of high or medium quality and environment friendly. And we
ensure 100% QC inspection before shipment.
6.We have strong and responsible team who can ensure our product quality and
provide best service.
Welcome to Inquiry!
1. Product process
2. Advanced production equipment and testing equipment

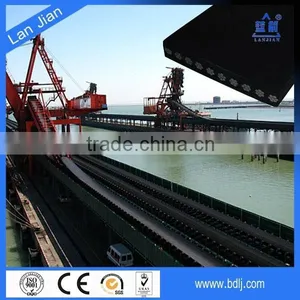

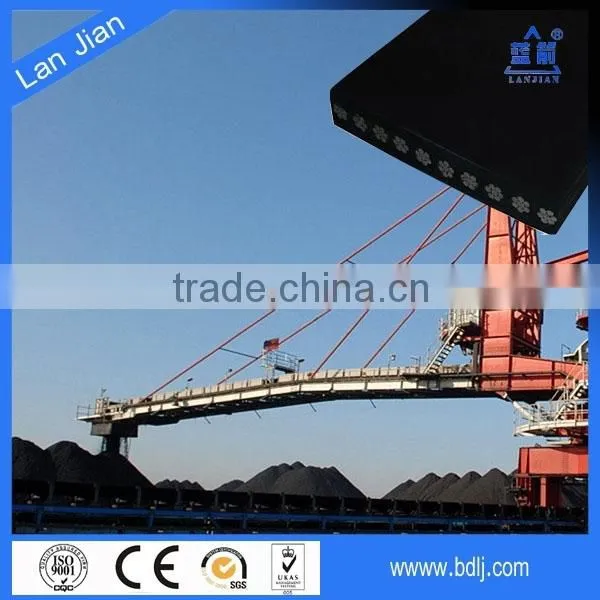

3.Application
Cement, concrete plants
Quarry , gravel, sand ,iron ore
Coal, mining, road construction Machinery
Metallurgy, steel industry
Heating and power station
Garbage incineration plants
Recycling, compost industry
Chemical industry, port,etc.

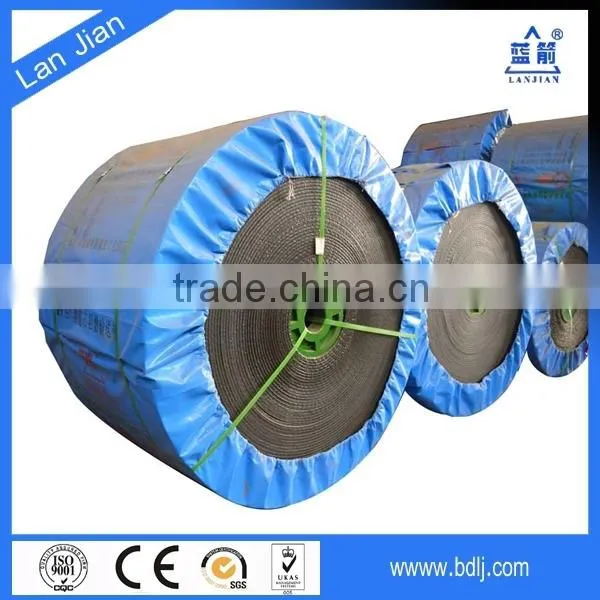

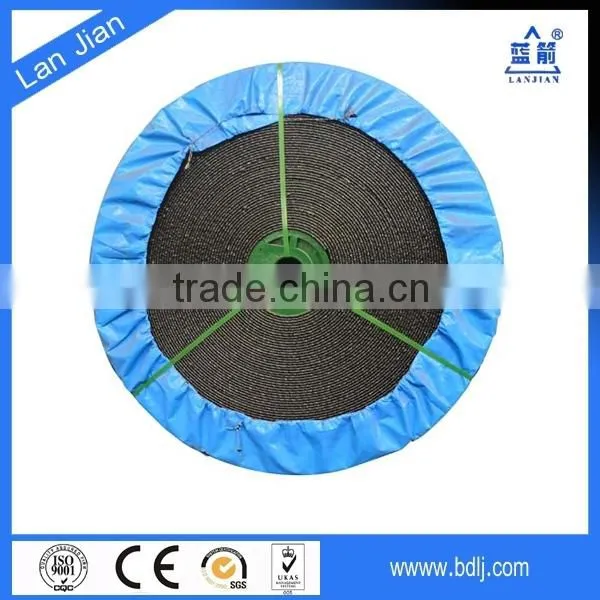

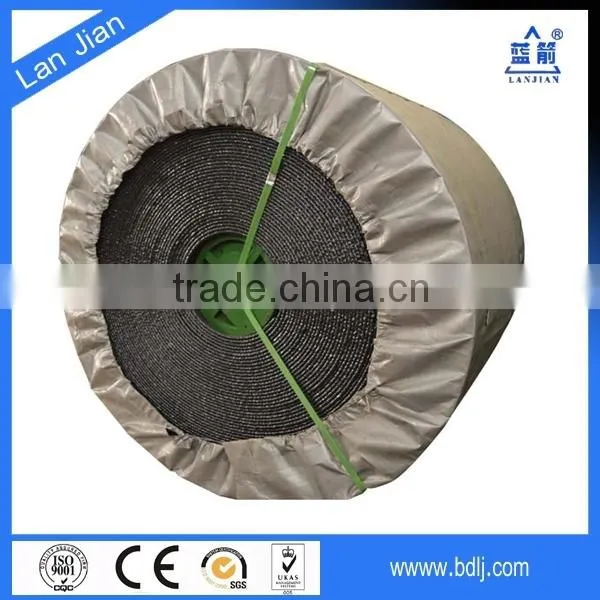

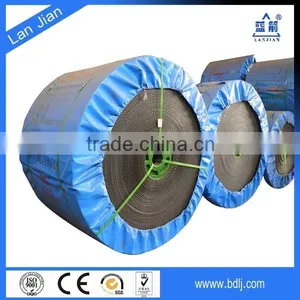

Packaging Detail:
1.Water-proof nylon wrapping package
2.Standard and suitable export package for marine transport
3.At your request
Shipping Detail:
1. By Sea for batch goods
2. Loading port: Tianjin, Shanghai or according to customer's requirement
3. Delivery Time: 3 -7 days for samples
15-25 days for 1-2 20ft containers
20-30 days for 3-4 20ft containers
