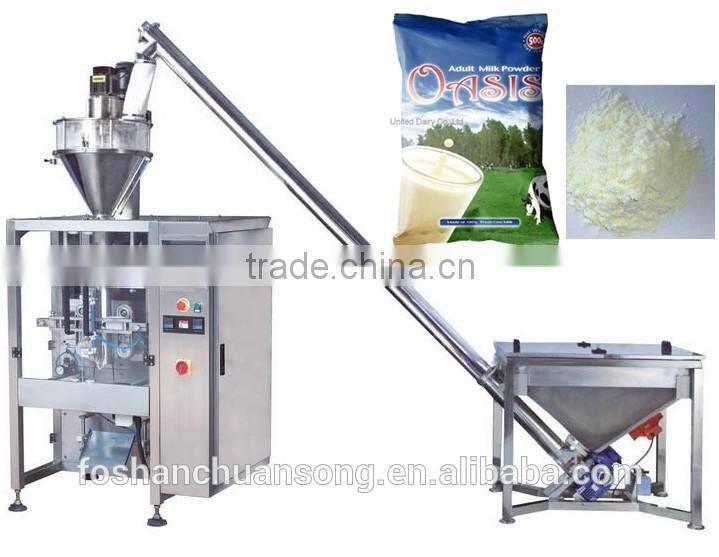

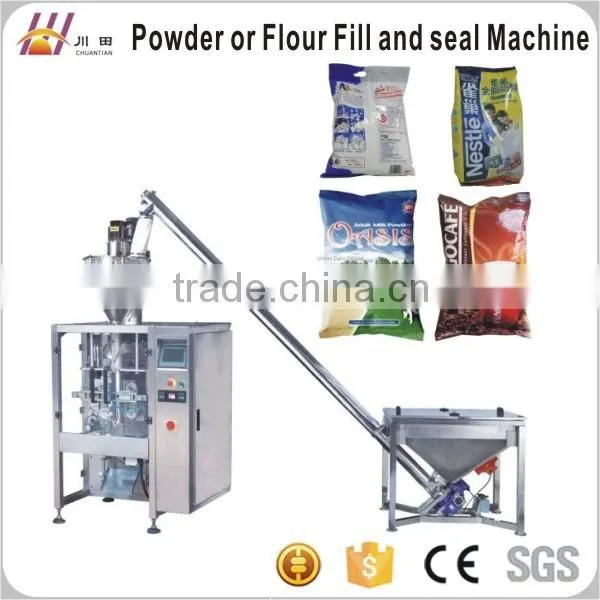

Automatic Vertical Powder or flour packing machine for Chilli powder DCTWB-420F
Technical Specifications of the packing machine
Item No. |
DCTWB-420F |
Bag forming type |
Pillow bag, side folded bag, square botton vertical bag. |
Packing speed |
Max.55bags/min(based on bag length) |
Bag forming length |
80-350mm |
Bag forming width |
80-250mm |
Packing film width |
Max. 420mm |
Packing volume |
2000ml |
Power supply specification |
220V, 3KW |
Total weight of machine |
650kg |
Complete sets
1: DCTWB-420F packing machine
2: Auger filler
3: Spiral material conveyor
4:Finished product conveyor
| Technical Specifications: | |||
| Item | Small type auger filler | Middle type auger filler | Large type auger filler |
| Filling range | 10-300g | 10-1000g | 10-5000g |
| Capacity | Max. 60bags / min | Max. 50bags / min | Max. 40bags / min |
| Accuracy | ±0.3-1.5% | ±0.3-1.5% | ±0.3-1.5% |
| Total power | 38V / 1KW | 38V / 2.5KW | 38V / 3KW |
| Auger filler dimension | L510*W585*H930mm | L690*W1030*H1100mm | L600*W1250*H2000mm |
| Auger filler weight | 100kg | 150kg | 220kg |
Characteristic
1. Controlled by PLC ,fast in packing, stable in operating, low malfunction rate, low energy wastage.
2. The packing is flexible enough for automatically packing powders with high or low fluidity.
3. Servomotor driving screws to rotate and measure the materials.
4.Adopting rotating screws to feed materials, mix independently and servomotor control system.
Have advantages of sensitive operation, quick measuring, high precision and stable performance.
5. Stainless open type material box, convenient to clean,meet the requirements of enterprise
safety and health management.
Applications
This machine is suitable for measuring powder materials with high or low fluidity, such as detergent powder,milk powder,flour Milk powder, bean flour, wheat flour, soybean milk powder, soybean drink, sesame paste, sesame powder, nutrition foodstuff, breakfast milk, walnut powder, instant oatmeal, cereals meal, cococa powder, coffee powder, protein powder, medicine powder, baking powder, ginger powder, flavoring, flavour, pepper, condiment, dressing, chily powder, yogurt powder, prawn powder, soda, rice flour, potato powder, starch, maize flour, oat meal, seasoning, curry powder, electuary, besan, chicken essence, thirteen spice, sachet spices
baby powder, washing powder, mask powder, ficial powder, pearl powder, deterget, additive, desiccant, saw dust.
One year warranty and lifetime maintenance for the packing machine.
Remark:
1. Machine Package: plastic film + wooden case.
2. Payment terms: 30% deposit should to be paid when order, 70% balance will be paid before delivery the goods to Chinese port.
3. Lead time: 20-35 days after receipt of desopit .
4. Stochastic bag forming 1 pcs.
5. Price availability: within 2 months.
6. Warranty: one year (Attention: Machine's warranty range don't include quick-wear parts; for other parts, providing new free parts for clients in a warranty period).
7. Tenure of use: over 10 years.
1.What’s material of machine frame?
Carbon steel and stainless steel are available.
2.What’s the material for conctacted parts of machine?
Stainless steel
3.For the control panel,how many languages are available?
Usually,English and Chinese are available,if you would like to have other language,pls let us know in advance.
4.What kind of packing film can be used?
Complex film roll,such as OPP/CPP,CPP/PE,MST/PE/PET/PE.
5.What is your advantage?
1.Stable and reliable performance of machine, competitive price.
2. To reply your inquiry promptly.
3. Low price of spare parts if you need more.
4. In case some malfunction,we promptly offer on-line service, such as E-mail, Skype, Wechat, Whatsapp to supply videos,pictures.
5. Professional technicians are available.
6.How to contact us?
Send your inquiry details in the below,please click "Send" now.
