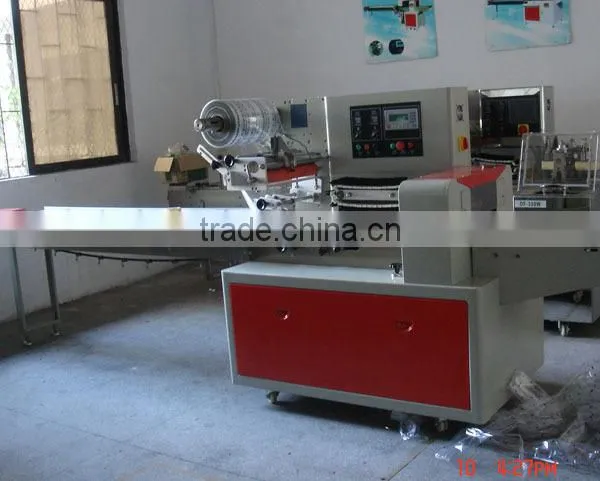

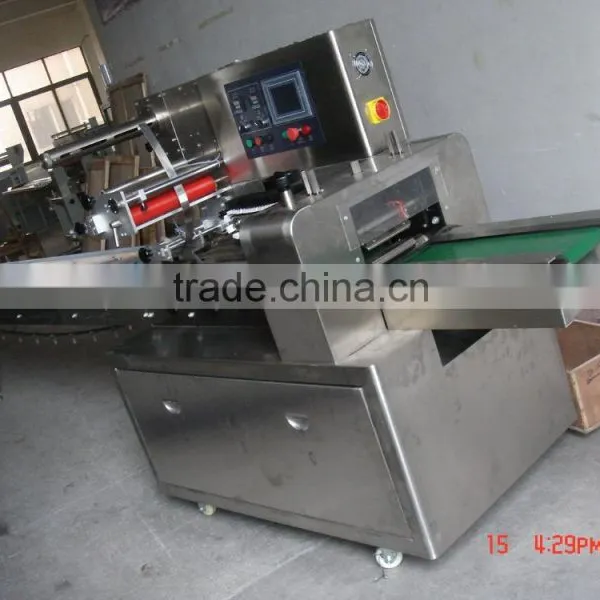

High speed layer cake packaging machine DCTWB-250X
Features
1. Dual frequency conversion control, bag length can be set and cut in one step, saving time and film
2. Interface features easy and quick setting and operation.
3. Self failure diagnosis, clear failure display.
4. High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra
accuracy.
5. Temperature independent PID control, more suitable for packaging different materials.
6. Positioned stop function, without sticking knife or wasting film.
7. Simple driving system, reliable working, convenient maintenance.
8. All controls realized through software, easy for function adjusting and technical upgrade.
Applications
Packaging soft,strip and unorganized objects like towels, tissues, noodles, egg rolls, sausages, fish,
ice-lollies, soft candies, fresh fruits, many kinds of food, many kinds of commodity, parts etc.
Specification |
|
|
Type |
DCTWB-250X |
DCTWB-350X |
Film width |
Max.250mm |
Max.350mm |
Bag length |
65-190 or 120-280mm |
|
Bag width |
30-110mm |
50-160mm |
Product height |
Max.40mm |
|
Film roll diameter |
Max. 320mm |
|
Packaging rate |
40-230bags/min |
|
Power |
220V 50/60Hz 2.4KW |
220V 50/60Hz 2.8KW |
Machine size |
(L)3920x(W)670x(H)1320mm |
(L)4020x(W)720x(H)1320mm |
Machine weight |
800kg |
900kg |
Remarks |
|
|

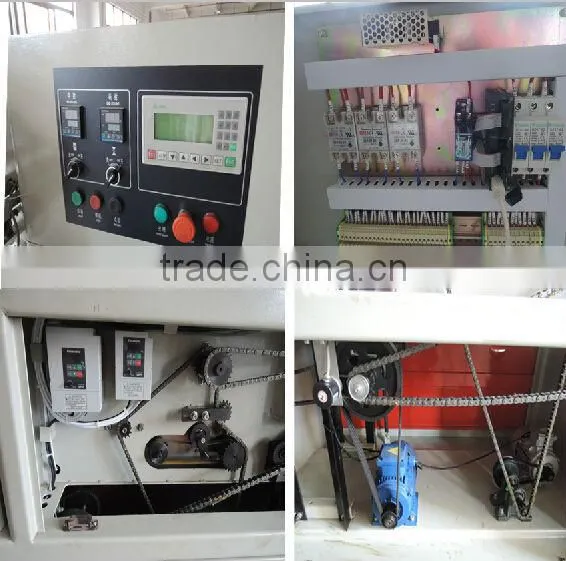

Machine Details:

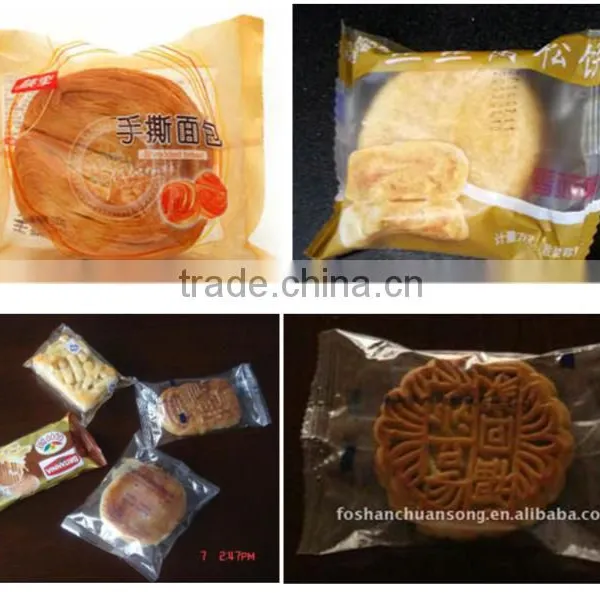

Sample for reference:
After-sell service:
A. The warranty would be one year. The damaged one (not include the part which is made damaged by man) can be changed by the supplier, but the demand-side needs to burden the transportation fee.
B. The above quotation is not including the maintenance fee which would happen at home or abroad. If the demand-side asks for maintenance door-to-door, then need to pay all the fees which will be charged.
C. The supplier will provide the spare parts of the machine and support for technology for the good.
What’s material of machine frame?
Carbon steel and stainless steel are available.
What’s the material for conctacted parts of machine?
Stainless steel
For the control panel,how many languages are available?
Usually,English and Chinese are available,if you would like to have other language,pls let us know in advance.
What kind of packing film can be used?
Complex film roll,such as OPP/CPP,CPP/PE,MST/PE/PET/PE.
What is your advantage?
1.Stable and reliable performance of machine, competitive price.
2. To reply your enquiry promptly
3. Low price of spare parts if you need more.
4. In case some malfunction,we promptly offer on-line service, such as E-mail, skype, wechat,viber, whatsapp to supply videos,pictures,
5. Professional technicians are available
How to contact?
Tel: +86 757 88554253, Fax: +86 757 88554252
Skype: yyh0219, QQ: 2536463647,
Wechat / WhatsApp / Mobile: +86 139 2772 8664
Add: Jianhao Building, Pingzhou Town, Naihai District,
Foshan City, Guangdong Province, China.
