High Speed Donut Packing Machine, Egg Cake Packaging Machinery, Egg Roll Wrapping Machine.

High Speed Donut Packing Machine, Egg Cake Packaging Machinery, Egg Roll Wrapping Machine. thumbnail-1
High Speed Donut Packing Machine, Egg Cake Packaging Machinery, Egg Roll Wrapping Machine. thumbnail-2
High Speed Donut Packing Machine, Egg Cake Packaging Machinery, Egg Roll Wrapping Machine. photo-1
High Speed Donut Packing Machine, Egg Cake Packaging Machinery, Egg Roll Wrapping Machine. photo-2
US$ 4,500 - 7,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Other, Apparel, Textiles, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles
Packaging Type:
Stand-up Pouch, Bags, Film, Pouch, Case
Contact Supplier Request Quote Chat Now
Foshan Chuansong Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Food, Beverage, Commodity, Medical, Chemical, Other, Apparel, Textiles, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles
Packaging Type Stand-up Pouch, Bags, Film, Pouch, Case
Packaging Material Plastic, Paper, Metal
Automatic Grade Automatic
Driven Type Electric
Voltage 220v
Power 2.4-2.8KW
Place of Origin Guangdong, China
Brand Name ChuanSong
Model Number DCTWB-250B ,DCTWB-250D
Dimension(L*W*H) 3770*670*1450mm
Weight 800kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

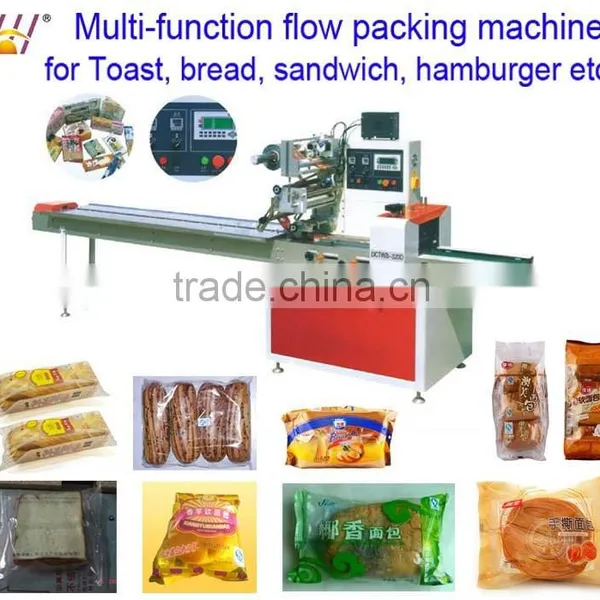

packing machine for bread, sandwich, pies, rolls.
1,Easy operate,40-230bags/min
2,Back center sealing type bag
3,PLC+inverter

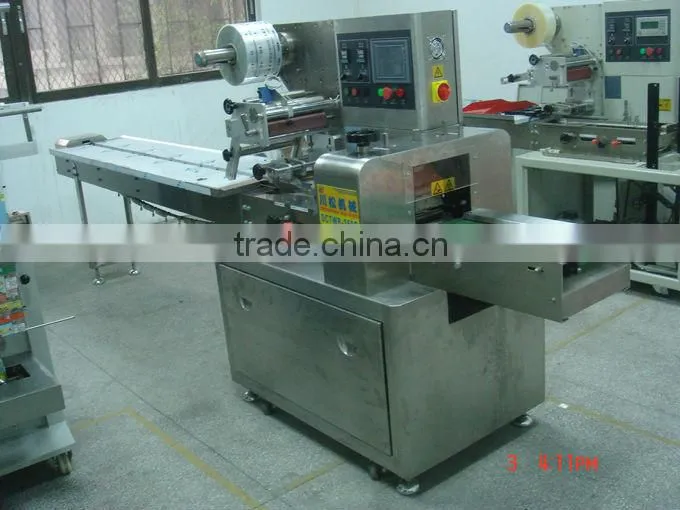

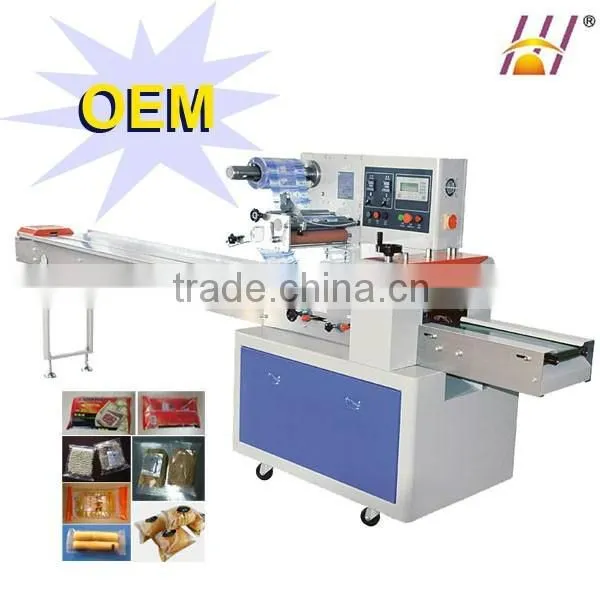

High speed donut packing machine, egg cake wrapping machine. DCTWB-250B/D/E/S

1,Easy operate,40-230bags/min
2,Back center sealing type bag
3,PLC+inverter + sensor

Technical  Specifications

Type

DCTWB-250B

DCTWB-250D

DCTWB-250E

DCTWB-250S

Film width

               MAX.250mm

          Max.180mm

Bag length

65-190 or 120-280mm

 90-220mm

50-115mm

45-90mm

Bag width

30-110mm

30-80mm

Product height

Max.40mm

Max.55mm

Max.35mm

Film roll diameter

                   Max.320mm

Packaging rate

        40-230bags/min

60-330bags/min

Power

220V 50/60Hz   2.4KW

220V 50/60Hz   2.8KW

Machine size

                (L)3770*(W)670*(H)1450mm

Machine weight

                                                800KG

remarks

                                 Optional air filling device



























high speed donut packing machine, egg cake packaging machinery, egg roll wrapping machine.

high speed donut packing machine, egg cake packaging machinery, egg roll wrapping machine.

Main capabilities and features

1,Dual transducers control and bag length can be let and cut in one step.

2,Interface are easy and quick to set and operate.

3,Failures can be self-diagnosised and displays clearly.

4,High sensitivity electrical eye traces and sealing position is input numerically for accuracy.

5,PID control temperature independently which is more suitable for packing different materials.

6,Positioned stop function without sticking knife and wasting film

7,Simple driving system, reliable working ,convenient maintenance.

8,All control is realized through software.easy for function adjusing and technical upgrading.



























Applications:

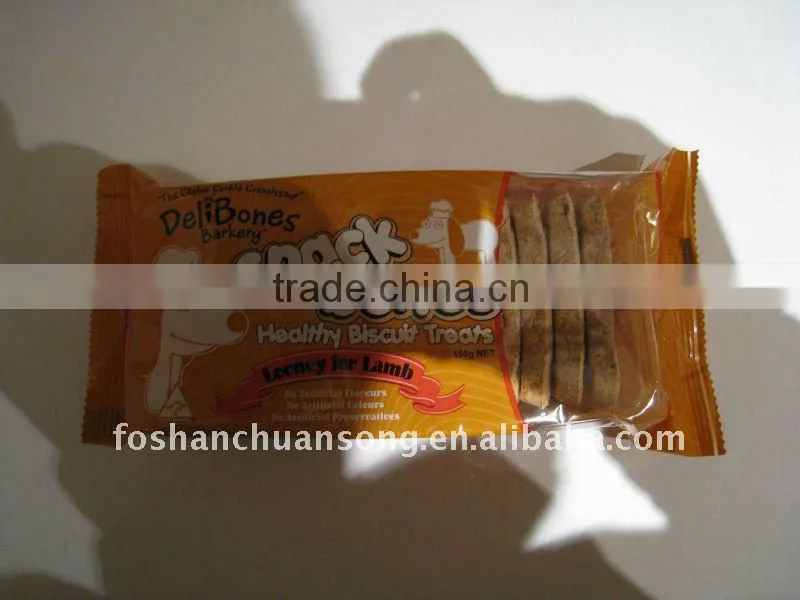

Packing various kinds of regular objects like biscuit, pie, chocolates, bread, instant noodles, moon-cakes, drugs, daily appliances, industrial parts, paper boxes, plates, etc.
