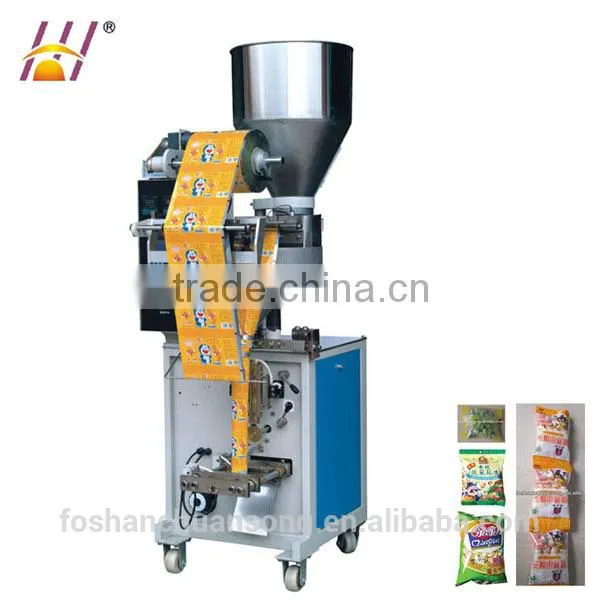

Full automatic small vertical cup measuring packing machine

Specifications

1. durable,logical design & precise, hot sale.
2. Magic eyes,reliable,good performance.
3. Finish all processes automatically.

Full automatic Volumetric cup measuring packing machine for grain, seeds, peanuts, rice, sugar, salt etc. DCTWB-160A

Features

1: the machine is featured with compact structure,durable, logical design and precise.

2: It adopts light sensor control system, and is featured with reliable, stable performance.

3: It can finish automatically all processes, such as measuring., filling and bag marking,

  date stamping and finishing goods output.



Optional Parts:

1.SCM and step motor controller

2.Electromagnetic on-off control

3.Linked bags control device



Technical specification :

Item No.	DCTWB-160A
Max width of coiled film	320mm
Bag length	30-200mm
bag width	50-150mm
Measuring range	50-500ML
Packing speed	30-100bags/ min
External diameter of coiled material	Max.300mm
packing film thickness	0.05-0.08mm
Power supply specification	220V, 50HZ, 2kw
Machine weight	350KG
Sealed bags	3 sides , 4 sides
Packing Material	OPP/CPP,OPP/CE, MST/PE/PET/PE



Application scope:

Suitable for packing puffed food, shrimp strip, peanuts, cooked seeds, rice, seeds, monoso dium glutamate,

popcorn and other grain, bean, sugar, salt, strip and flake shaped solid material.
