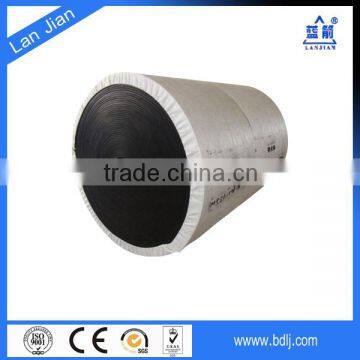

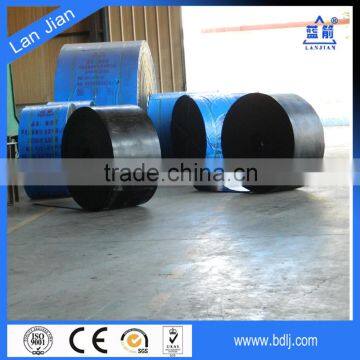

popular rubber heat resistant belt for hot coke for industry
Intenational standard EP canvas heat resistant belt for hot coke

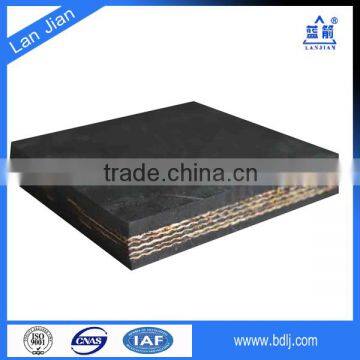

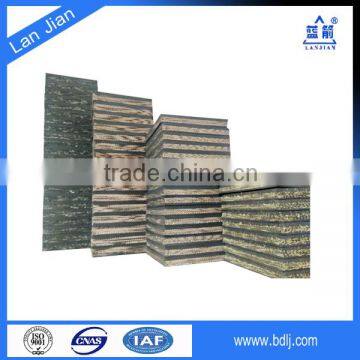

1. The tensile body of polyester cotton conveyor belt is interwoven by cotton-polyester blended fabric in longitude and cotton fiber in latitude. The belt body is thinner and lighter, better shock resistance, so the belt has greater functional performance, of energy conservation and consumption reduction, and gain more benefits.
2. Application fields: Metallurgy, steel plant, building material and construction, energy, chemical, machinery equipment and port.
3. Tensile Strength:500-3000N/mm; Width:500-2400mm
| Cover Properties of the Belts: | |||||
| Cover Grade | Tensile Strength | Elongation | Abrasion | Change Rate of Tensile Strength and Elongation after Aging | |
| ≥ | ≤ | ≤ | |||
| Mpa | kgf/cm2 | % | mm3 | % | |
| Heavy(H) | 24 | 240 | 450 | 120 | -25~+25 |
| Medium(M) | 18 | 180 | 400 | 100 | -25~+25 |
| Light(L) | 15 | 150 | 350 | 200 | -30~+30 |
| Specification and Technical Data of Multi-ply Polyester Conveyor Belt: | |||||||||||||
| Fabric Type | Fabric Structure | Fabric |
Ply Thickness (mm/P) |
Strength Series(N/mm) |
Cover Thickness (mm) |
Width | Length | ||||||
| Warp | Weft | Specs | 2 ply | 3ply | 4ply | 5ply | 6ply | Top | Bottom | mm | m | ||
| Polyester | Polyester | Polyeter | EP-80 | 0.8 | 160 | 240 | 320 | 400 | 480 | 2.0~8 | 0~4.5 | 400~500 | <=300 |
| (EP) | (EP) | (EP) | EP-100 | 0.8 | 200 | 300 | 400 | 500 | 600 | ||||
| EP-125 | 0.85 | 250 | 375 | 500 | 625 | 750 | |||||||
| EP-150 | 0.9 | 300 | 450 | 600 | 750 | 900 | |||||||
| EP-160 | 0.9 | 320 | 480 | 640 | 800 | 960 | 500~2500 | ||||||
| EP-200 | 1.05 | 400 | 600 | 800 | 1000 | 1200 | |||||||
| EP-250 | 1.25 | 500 | 750 | 1000 | 1250 | 1500 | |||||||
| EP-300 | 1.35 | 600 | 900 | 1200 | 1500 | 1800 | |||||||
| EP-350 | 1.5 | - | 1050 | 1400 | 1750 | 2100 | 600~2500 | ||||||
| EP-400 | 1.8 | - | - | 1600 | 2000 | 2400 | 600~2500 | ||||||
| EP-500 | 2 | - | - | 2000 | 2500 | 3000 | |||||||
Intenational standard EP canvas heat resistant belt for hot coke
Intenational standard EP canvas heat resistant belt for hot coke
Intenational standard EP canvas heat resistant belt for hot coke

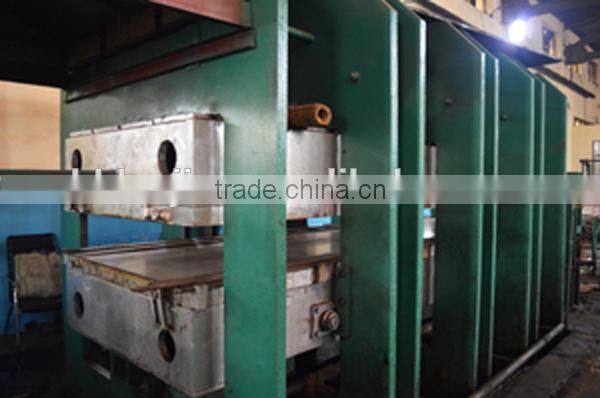

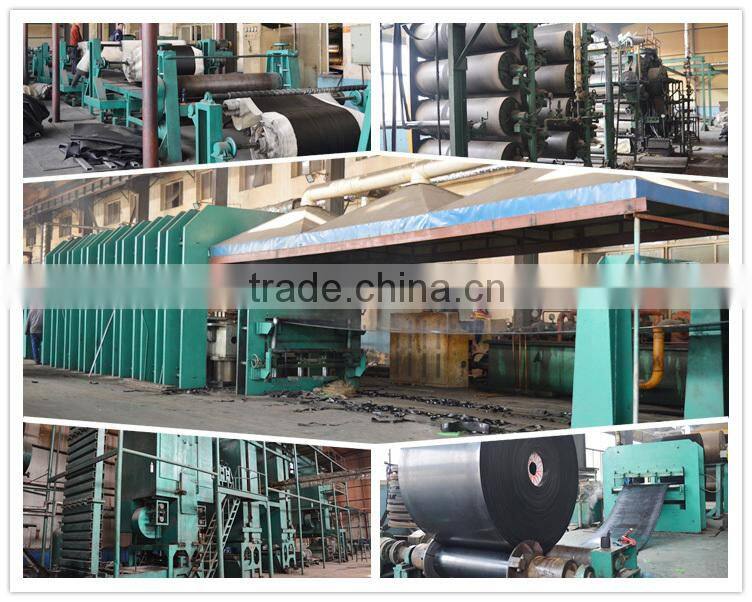

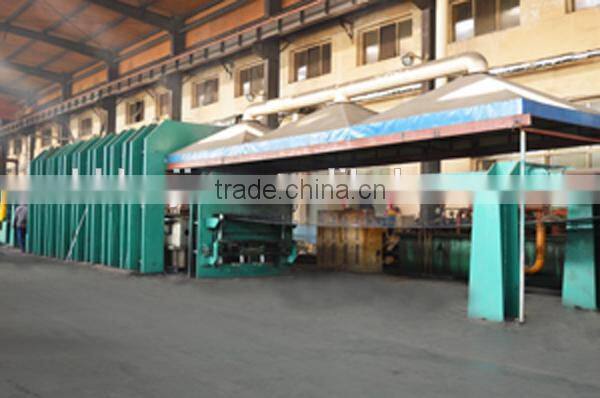

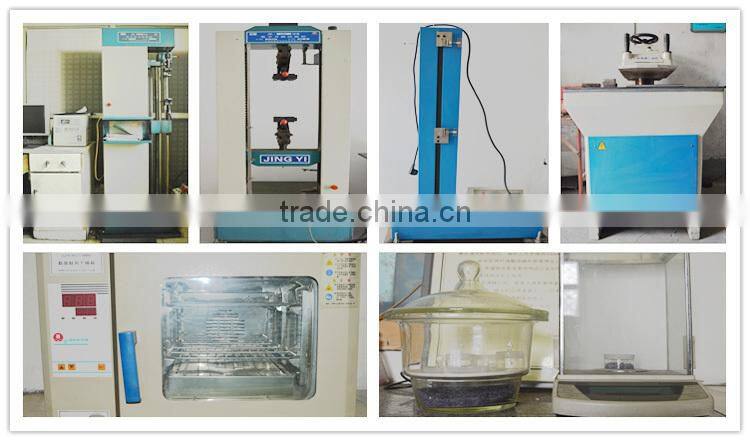

Advanced production equipment, newest testing instruments, rigorous test engineers.
Intenational standard EP canvas heat resistant belt for hot coke

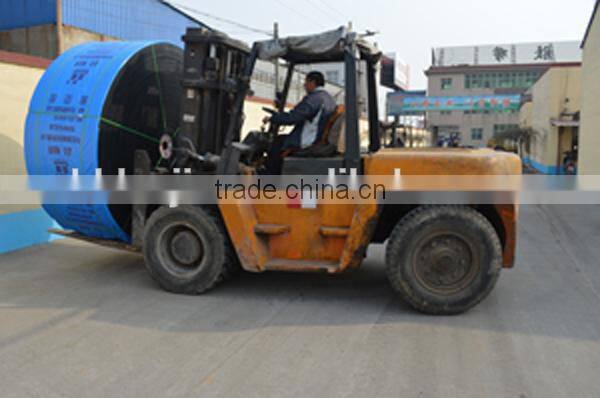

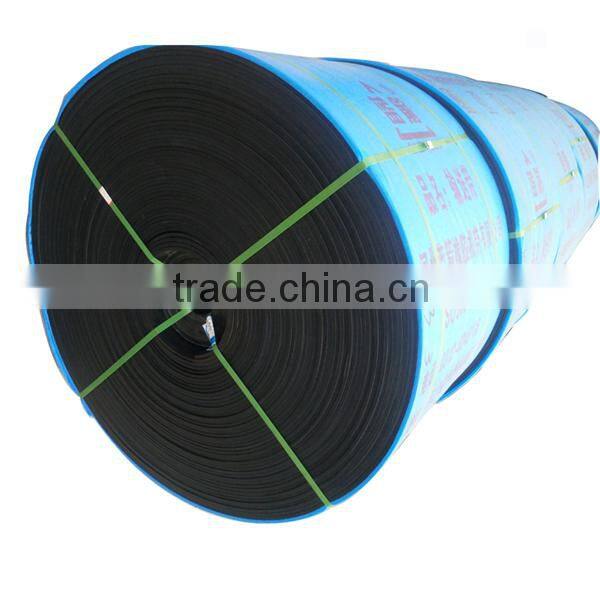

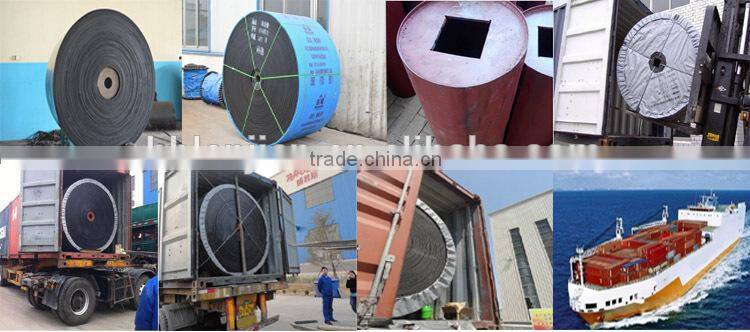

1. Hebei Lanjian China suppliers CE certificate cotton canvas conveyor belt rubber chevron package: Water proof cloth
2. Loading port: Tianjin, Shanghai or according to customer's requirement
3. Delivery Time: 3 -5 working days for samples
10-13 days for each 20ft containers
13-15 days for each 40ft containers
Intenational standard EP canvas heat resistant belt for hot coke used
It can convey powdered,granulated and small lump materials at the gradient of no more than 40 degrees. It can also convey packaged materials.
1.What is your mainly product?
Our mainly product as :
EP/NN/CC56 conveyor belt,PVC PVG solid woven conveyor belt, Steel cord conveyor belt.The PVC PVG solid woven fire-resistant belt is our advantage.
2. What about the specification, standard or nonstandard? Can we product in your special requirements?
Most of our belts are nonstandard and of course we can produce in your requirements. For those standard products, you can chose your sizes of different width, length and also thickness.
3.What is the your MOQ?
The MOQ is 100-200mtr any kind of belt. that is too say :1-2 rolls
4. What about the samples?
can supply some free samples if you have a DHL, TNT, UPS or FedEx account or other courier freight collectable account and agree to pay the courier freight.
a.If you don't have courier account, you can send your courier to collect samples from our company, or send us the the courier cost and we will arrange the sample for you.
b.The charge both sample and courier cost will be return you once the mass order placed.
5. What’s your usual payment term for orders?
a.T/T 30% as the deposit, and T/T 70% balance paid before loading.
b.Or any payment term to discuss.
6. What’s your advantage?
a. Competitive price
b. High quality production
c. Fast production period
d. Quick delivery
e. Stable product supply
- Any Inquires will be replied within 24 hours.
- Professional manufacturer,we have professional team to design and manufacture conveyor belt as customer requested.
- All of our products 100% inspection before shipment, we guarantee to use our products safety.
- We own the best after-sale service.If there any problems happen, our team will do our best to solve for customers.
- Faster delivery, 7-10 days after we receive the payment.
- Any problems during use, you can freely contact with us by email or by telephone.
- Sample is available.
- OEM or ODM is possible.
