Convenient Flexible Easy Maintenance Coal Movable Belt Loader/Mobile Band Conveyor

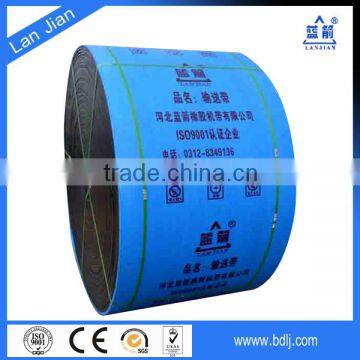

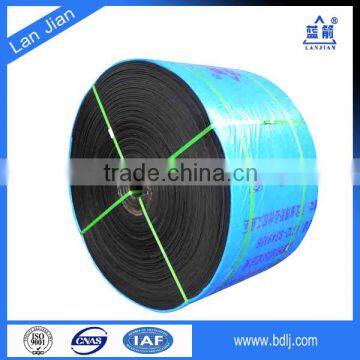

Heat Resistance Conveyor Belt
The carcass of this product has very high adhesion after the special treatment of coating and shaping.Under normal working temperature of below 180℃, the belt is low in elongation, excellent in anti-abrasion,and can bear 250℃(in the cooling condition, 300℃-600℃) high temperature for a short time.The belt is suitable for use in cement,metallurgical and steel industry.
Standard:GB/T20021-2005
Application fields: Metallurgy, steel plant, building material and construction, energy, chemical,machinery equipment and port.
Tensile strength: 500~3000N/mm Width:500~2400mm
Features & Advantages:
1,Heat-resistant cover resists cracking and hardening
2,High-temperature resistance to tearing and abrasion
3,High strength carcass construction
4,The carcass with heat-resistant material
| Item | Between Piles |
Between Cover and Belt Carcass |
| Average of all samples(>=) | 2.1 | 2.1 |
|
The all samples' lowest peak value is not less than(>=) |
1.6 | 1.6 |
Abrasion between Piles
| Item | Between Piles | Between Cover and Cloth | ||
|
Cover Thickness<=1.5mm |
Cover Thickness >1.5mm |
|||
|
Chemical Fiber Filement Fabric Carcass |
Longitudunal Average Value ≥,N/mm |
4.5 | 3.5 | 3.5 |
|
Longitudinal Lowest Peak,N/mm |
3.9 | 2.9 | 2.9 | |
After the high temperature resistance belt heating test,its physical and mechanical performance should be in accordance with the provisions below.
| Item | Type | ||||
| T1 1 type | T2 2 type | T3 3 type | T4 4 type | ||
| Variation Range | |||||
| Hardness | Differences before and after Aging | +20 | +20 | ±20 | ±20 |
| Maximium Value after Aging | 85 | ||||
| Tensile Strength | Change Rate after Aging | 12 | 10 | 5 | 5 |
| The Minimum Value after Aging | -25 | -30 | -40 | -40 | |
| Elongation | Performance Change Rate | -50 | -50 | -55 | -55 |
| Minimium Value after Aging | 200 | 200 | 180 | 180 | |
1. Product process
2. Advanced production equipment and testing equipment

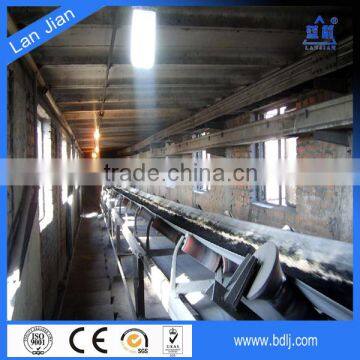

3.Application
Cement, concrete plants
Quarry , gravel, sand ,iron ore
Coal, mining, road construction Machinery
Metallurgy, steel industry
Heating and power station
Garbage incineration plants
Recycling, compost industry
Chemical industry, port,etc.
4. Certificates for CC/ EP/NN rubber conveyor belt
Why Choose us?
1.We are a manufacturer who has almost 25 years’ produce experience with best production capability. Our plant area is about 140,000 square meters ,and our annual production Value more than 60,000,000 U.S. Dollars.
2.We have advanced production equipment and testing equipment.
3.We have certificates by well-known standards.
4. Our Product quality has been recognized by many enterprises, and we have a long term cooperation with many large enterprises in domestic.
5. All Material we use is of high or medium quality and environment friendly. And we
ensure 100% QC inspection before shipment.
6.We have strong and responsible team who can ensure our product quality and
provide best service.
Welcome to Inquiry!
A. OEM or ODM is possible
Most of our belts are nonstandard and of course we accept customized. While pls kindly inform Detailed Specification and your requirements. We will try our best to meet your request and give the program to you ASAP!
B. Sample is available.
We can supply some free samples if you have a DHL, TNT, UPS or FedEx account or other courier freight collectable account and agree to pay the courier freight.
By the way, all the cost will return to you or reduced from the payment when you placed the order.
C. Best Ever After-sale Service
Any problems during use, you can freely contact with us by email or by telephone. Our Customer Service Center and Technicists are always at your services.
1.When Hebei Lanjian Rubber Belts Co., Ltd. established ? are we a Manufacturer?
Hebei Lanjian was established in 1992, 100% manufacturer, welcome you to visit our production line.
2.What is the location of your company?
Our company is located in Boye Rubber Industrial Zone, Baoding City, Hebei,China.Very close from Beijing.
If you like to have a visit, you are the most welcome.
3. What about the specification, standard or nonstandard? Can we product in your requirements?
Most of our belts are nonstandard and of course we can produce in your requirements.
For those standard products, you can chose your sizes of different width, length and also thickness.
4. What about the samples?
We can supply some free samples if you have a DHL, TNT, UPS or FedEx account or other courier freight collectable account and agree to pay the courier freight.
5. What’s your advantage?
a.Competitive price b. High quality production
c. Fast production period d. Quick delivery e. Stable product supply
Packaging Detail:
1.Water-proof nylon wrapping package
2.Standard and suitable export package for marine transport
3.At your request
Shipping Detail:
1. By Sea for batch goods
2. Loading port: Tianjin, Shanghai or according to customer's requirement
3. Delivery Time: 3 -7 days for samples
15-25 days for 1-2 20ft containers
20-30 days for 3-4 20ft containers
For Other Types, Welcome to inquiry!
- Polyester conveyor belt, (EP)
- Nylon conveyor belt, (NN)
- Cotton conveyor belt, (CC)
- Sidewall conveyor belt (SW)
- Chevron conveyor belt, (C5 C10 and C15)
- Oil Resistance conveyor belt, (OR and MOR)
- Hot Resistance conveyor belt, (HR)
- Fire Resistance conveyor belt, (FR/PVC/PVG)
- Heat Resistance conveyor belt, (OHR/ OFR)
- Cold Resistance conveyor belts, (CR)
- Endless belts
- Conveyor roller, idler
- Conveyor Pulley, frame,bracket, etc.
