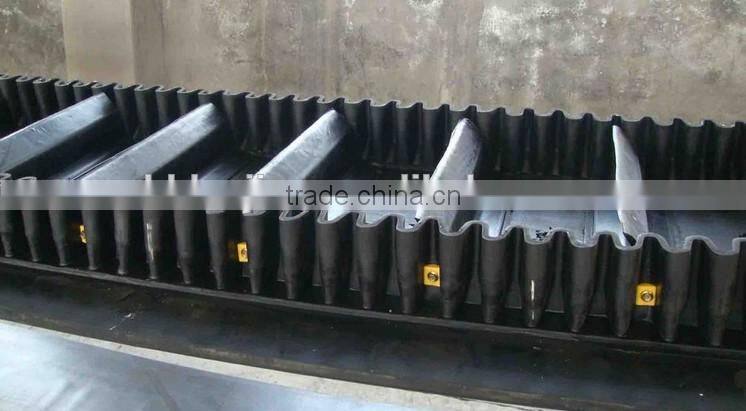

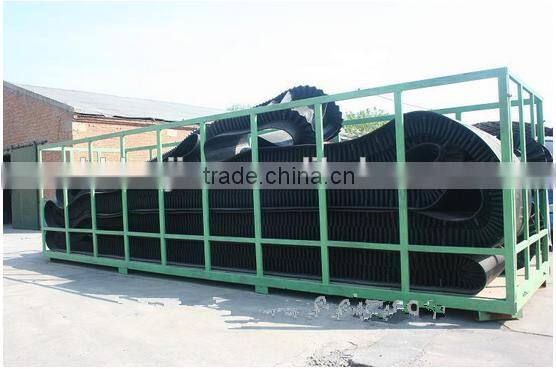

Corrugated Sidewall Conveyor Belt/Transmission Belt for Cement
Features of high angle corrugated sidewall rubber conveyor belt:

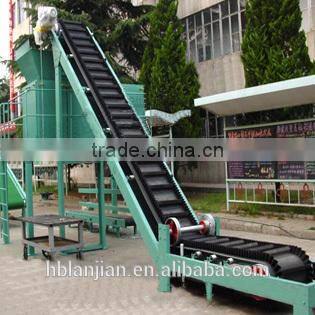

Corrugated sidewall belt generally is used with corrugated wall conveyor together, and also used with general belt conveyor.
Corrugated sidewall belt is suitable for the horizontal, short distance condition..The angle will be not less than 30 degrees.
Corrugated Sidewall Conveyor Belt Structure:
1.Base belt
Carcass: EP, NN, ST
Base belt width : 400- 1400mm

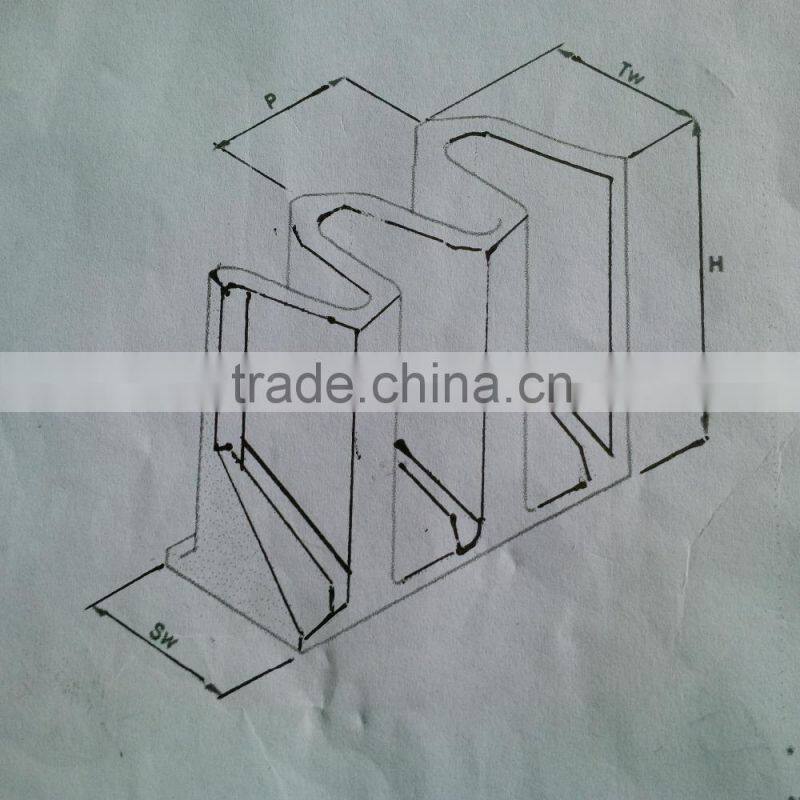

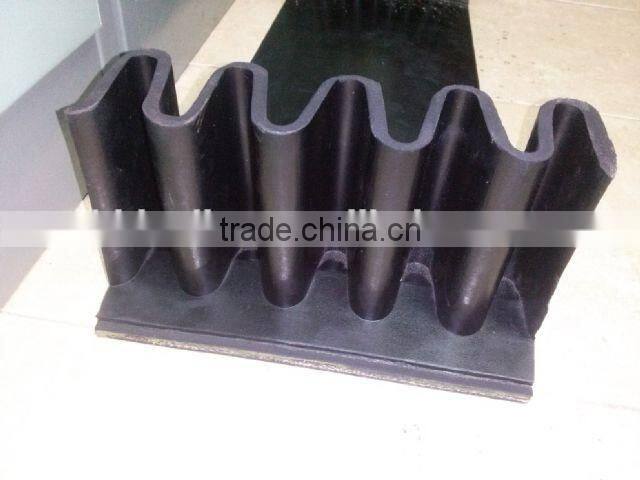

Corrugated Sidewall Conveyor Belt Sidewall:
Type: Light, Medium, Heavy, Extra heavy.
Hight: 40-400(mm)
Width: 35-110(mm)
Corrugated Sidewall Conveyor Belt Cleat:
Type: T,TC
Hight: 35-360(mm)
Width: 55-230(mm)
|
Base Belt Width |
Sidewall Hight H |
Horizontal Baffle Hight H1 |
Corrugation Bottom Width B1 |
Effective Belt Width B2 |
Free Edge Width B3 |
Horizontal Baffle Shape |
| 300 | 40 | 35 | 25 | 180 | 35 | TC |
| 60 | 55 | 50 | 120 | 40 | ||
| 80 | 75 | |||||
| 400 | 60 | 55 | 50 | 180 | 60 | |
| 80 | 75 | |||||
| 100 | 90 | |||||
| 500 | 80 | 75 | 50 | 250 | 75 | |
| 100 | 90 | |||||
| 120 | 110 | |||||
| 650 | 100 | 90 | 50 | 350 | 100 | |
| 120 | 110 | |||||
| 160 | 140 | 75 | 300 | |||
| 800 | 120 | 110 | 50 | 460 | 120 | |
| 160 | 140 | 75 | 410 | |||
| 200 | 180 | |||||
| 1000 | 160 | 140 | 75 | 550 | 150 | |
| 200 | 180 | |||||
| 240 | 220 | |||||
| 1200 | 160 | 140 | 75 | 690 | 180 | |
| 200 | 180 | |||||
| 240 | 220 | |||||
| 300 | 260 | 75 | 640 | |||
| 1400 | 200 | 180 | 75 | 830 | 210 | |
| 240 | 220 | |||||
| 300 | 260 | |||||
| 400 | 360 | 100 | 780 |

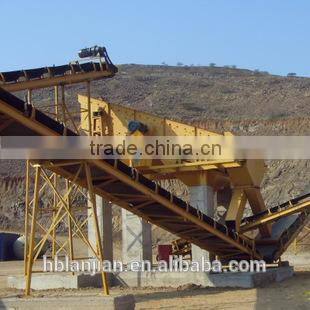

Usage:
- Construction industry
- Potash and salt mining
- Stones and earth
- Fertilizer
- Chemical industry
- Recycling industry
- Rural co-ops and traders in agricultural commodities
- Agriculture
We produced NN/EP/CC rubber conveyor belt.
Detail specification as below:
Muti-ply EP conveyor belt |
EP100---EP600 |
Muti-ply NN conveyor belt |
NN100---NN600 |
Muti-ply CC conveyor belt |
CC-56 |
Steel cord conveyor belt |
ST630--ST5400 |
Pattern conveyor belt |
"Open V" "Close V" "L Type" "A Type" "Y Type" ''F Type'' |
Heat Resistant conveyor belt |
HRT-1≤100°C HRT-2≤125°C HRT-3≤150°C HRT-4≤175°C |
Cold Resistant conveyor belt |
-45°C —— +50°C -60°C——+50°C |
Oil Resistant conveyor belt |
MOR Type OR Type |
Chemical Resistant conveyor belt |
A1 A2 A3 grade |
Endless conveyor belt |
No Joint |
Flame Resistant conveyor belt |
MT680 Standard K2 K3 grade |
Sidewall conveyor belt |
"T" "TS" "C" "TC" "TCS" |

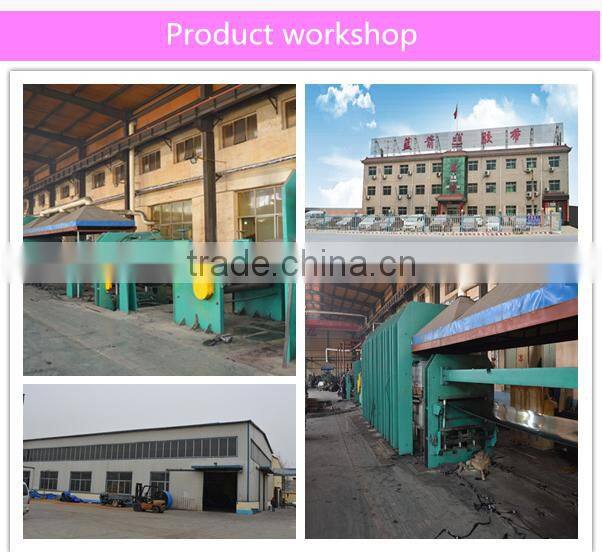

Company information
Hebei lanjian rubber belts co.,ltd is a medium rubber belts manufacturing enterprise with “Lanjian” series conveyor belt as its leading products.we have first class producing equipment and manageing system,and the quality of our products is stable and produced follows the state or internatinal standard strictly .we have ISO 9001 Quality Control System.
The major products include:normal converor belts below endless conveyor belt,NN/EP conveyor belt,pattern conveyor belt,oil-resistant conveyor belt,chemical resistant conveyor belt,anti-tear conveyor belt and so on.
FAQ
1. What's the raw materail mainly used in our products?
All kinds of conveyor belt: natural rubber and EP/NN/CC fabric
2. Lead time(depend on specific quantity and detail information ):
(1)Classical conveyor belt: 15days-30 days
(2)Steel cord conveyor belt: 60 days
(3)Sidewall conveyor belt: 25days-35 days
(4)Flat transmission belt: 25-35 days
3. Samples
We are pleased to provide the free samples in order to protect customers business and the express cost should be on your account as usual.
4. MOQ( can be adjusted)
(1) Conveyor belt: 100m
(2) Pattern/sidewall conveyor belt:50m

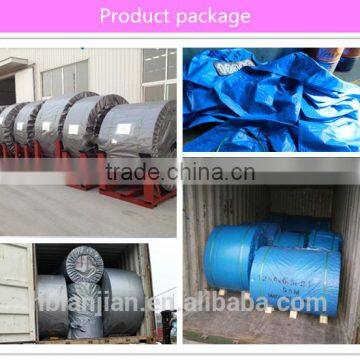

5. Packing:
Generally PP bag around surface of the roll with rubber core inside and 10-20 rolls can be loaded in a 20' GP container as usual.
