Multi-Ply Fabric Ep Nn Rubber Conveyor Belt
Multi-Ply Fabric Ep Nn Rubber Conveyor Belt :
Multi-Ply Fabric Ep Nn Rubber Conveyor Belt
Welcome inquiry Lanjian!

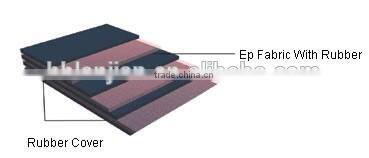

Polyester conveyor belt:
Polyester conveyor belt, also called EP or PN conveyor belt, whose tension resistant body is canvas woven by polyester in warp and polyamide in weft.
The belt has the characteristics of low elongation in warp and good trough ability in weft, good water resistance, good wet strength, suitable for medium, long distance and heavy-load transportation of materials.
Because of the high initial modulus of polyester, the belts can choose a relative low safety factor.
| Carcass | Fabric structure | Type | No. of plies |
Cover thickness (mm) |
Belt width (mm) |
||
| Warp | Weft | Top | Bottom | ||||
| EP | Polyester | Nylon-66 | EP80 | 2-6 | 3.0-18.0 | 1.5-10.0 | 300-5000 |
| EP100 | |||||||
| EP125 | |||||||
| EP150 | |||||||
| EP200 | |||||||
| EP250 | |||||||
| EP300 | |||||||
| EP350 | |||||||
| EP400 | |||||||
| EP500 | |||||||

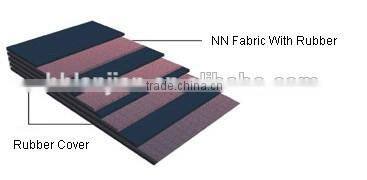

Nylon Conveyor Belt:
Nylon is one of the best quality synthetic fibers the rubber industry uses nowadays.
The nylon canvas is woven by nylon fabric both in warp and in weft.
It is the most widely used fabric in rubber industry, and its outstanding merits are its high abrasion resistance, high tensile strength and good fatigue resistance.
Conveyor belt with nylon canvas inside has the characteristics of thin belt body, high tensile strength, good shock resistance, good trough ability, high adhesion between plies, splendid flexibility and long working life.
Nylon conveyor belts are suitable for medium, long distance and heavy-load transportation of materials, widely used in mining, metallurgical industry and architectural industry, ports.
| Carcass | Fabric structure | Type | No. of plies |
Cover thickness (mm) |
Belt width (mm) |
||
| Warp | Weft | Top | Bottom | ||||
| NN | Nylon-66 | Nylon-66 | NN80 | 2-6 | 3.0-18.0 | 1.5-10.0 | 300-5000 |
| NN100 | |||||||
| NN125 | |||||||
| NN150 | |||||||
| NN200 | |||||||
| NN250 | |||||||
| NN300 | |||||||
| NN350 | |||||||
| NN400 | |||||||
|
NN500 | |||||||

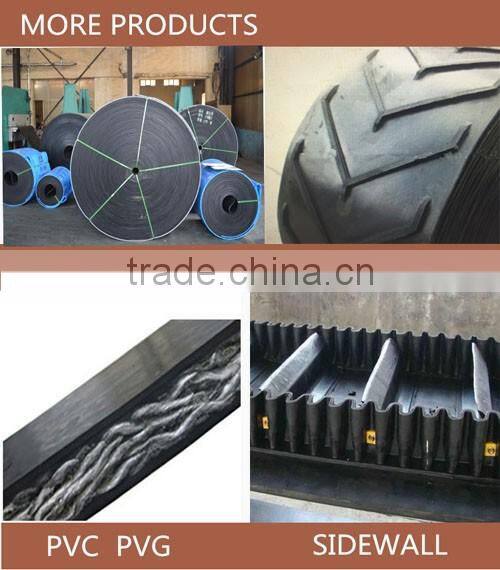

More product:
Muti-ply EP conveyor belt |
EP100---EP600 |
Muti-ply NN conveyor belt |
NN100---NN600 |
Muti-ply CC conveyor belt |
CC-56 |
Steel cord conveyor belt |
ST630--ST5400 |
Pattern conveyor belt |
"Open V" "Close V" "L Type" "A Type" "Y Type" ''F Type'' |
Heat Resistant conveyor belt |
HRT-1≤100°C HRT-2≤125°C HRT-3≤150°C HRT-4≤175°C |
Cold Resistant conveyor belt |
-45°C —— +50°C -60°C——+50°C |
Oil Resistant conveyor belt |
MOR Type OR Type |
Chemical Resistant conveyor belt |
A1 A2 A3 grade |
Endless conveyor belt |
No Joint |
Flame Resistant conveyor belt |
MT680 Standard K2 K3 grade |
Sidewall conveyor belt |
"T" "TS" "C" "TC" "TCS" |
