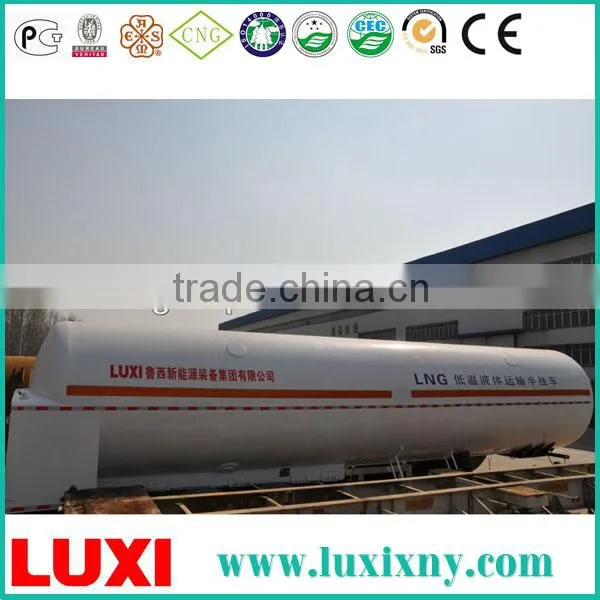

| LNG Cryogenic Liquid Storage Tank truck |
Product Pictures of CNG gas cylinder
Type |
30m³/0.8 |
CFL-60/1.2 |
CFW-60/1.2 |
CFL-100/1.2 |
CFL-150/1.2 |
CFW-54/1.2 |
CFW-54/1.2 |
Lay form |
Vertical |
Horizontal |
Vertical |
Vertical |
Vertical |
Horizontal |
Vertical |
Medium |
LO2/LN2/LAr |
LNG |
LNG |
LNG |
LNG |
LNG |
LNG |
|
Working temperature (°C) |
-196 |
-162 |
-162 |
-162 |
-162 |
-162 |
-162 |
|
Working pressure (Mpa) |
0.8 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
|
Inner and Outer Wall thickness (mm) |
10/10 |
14/12 |
14/12 |
16/12 |
18/12 |
14/12 |
14/12 |
|
Design temperature (°C) |
-196 |
-196 |
-196 |
-196 |
-196 |
-196 |
-196 |
|
Design pressure (Mpa) |
0.84 |
1.26 |
1.26 |
1.26 |
1.26 |
1.44 |
1.44 |
|
Leakage test pressure (Mpa) |
0.84 |
1.26 |
1.26 |
1.26 |
1.26 |
1.44 |
1.44 |
Main pressure units |
Q235B/S30408 |
Q345R/S30408 |
Q345R/S30408 |
Q345R/S30408 |
Q345R/S30408 |
Q345R/S30408 |
Q345R/S30408 |
|
Total volume (m³) |
31.6 |
66.6 |
66.6 |
111.1 |
166.7 |
60 |
60 |
|
Effective capacity (m³) |
30 |
60 |
60 |
100 |
150 |
54 |
54 |
Filling coefficient |
0.95 |
0.9 |
0.9 |
0.9 |
0.9 |
0.9 |
0.9 |
Dimension |
2520×12060 |
3024×16000 |
3024×14866 |
3524×18123 |
3724×23405 |
3024×14967 |
3024×15181 |
|
Product Description of CNG gas cylinder
Outer diameter: 406mm,559mm,610mm, to 914mm etc; Working pressure:200bar, 250bar; Water capacity: 0.4CBM, 0.7CBM,1.056CBM,2.21CBM, 2.3CBM or more |
|
♦Our Company Luxi New Energy Equipment Group Co., Ltd. is specialized in producing all types of CNG, LNG cylinders and gas equipment. Our company belongs to Luxi Group Corp., which is a large, state-owned chemical enterprise group. We are an integrated chemical enterprise of compound fertilizer, chemical engineering and chemical equipment. Our company is one of the largest pressure vessel factories in China, with trademark "Luxi" as brand name. |
.| Our company is one of the largest pressure vessel factories in China, with trademark "Luxi" as brand name. Our high quality products are widely used in China market, as well as oversea markets: Armenia, Colombia, Malaysia, India, Indonesia, Iran, Peru, Russia, Thailand, Uzbekistan, etc.. |
|

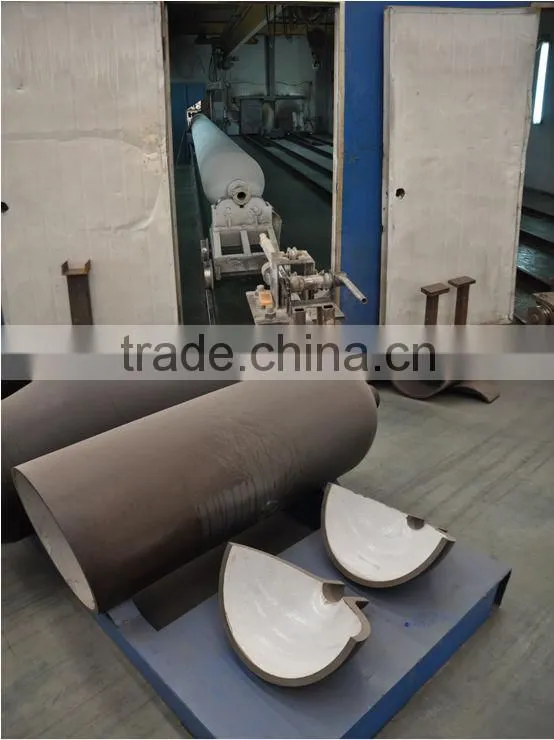

♦Factory Show We use the most advanced production line equipment, large punching machine, large rolling machine, CNC automatic welding machine, vacuum unit, CNC spinning shut, closed end equipment, automated heat treatment equipment, CNC winding equipment, electrostatic spraying equipment, helium mass spectrometer leak detector, spectrum analyzer, automatic ultrasonic flaw detector, X-ray detection machine, universal testing machine, impact testing machine and other sound sophisticated detection equipment. |
Why Choose
◊ Certifications
◊ Internal coating
| A layer of special powder on the inner wall will prevent the filling medium from contacting with the inner wall directly. The special power is non-metal material that is compatible with the filling medium in the cylinder, and has the resistance to erosion and the ability to isolate hydrogen so as to maintain the cylinder’s mechanical behaviors. This method would significantly lengthen the service life and improve the operation safety. This technology is generally applied in CNG containing higher hepatic gas and petroleum pipelines. After the coating process , the steel cylinder’s service life will be doubled even if erosive impurities are contained in the filling gas |
◊ Inspection
Each of our exported products will be checked by customs inspector
◊ Our Servise
1 We are china leading CNG&LNG equipment manufacture
2 We are GOLD supplier of Alibaba
3 Inspected by the inspection institution of Bureau Veritas Certification
4 Best quality & Best service with competitive price.
Q: Are you a factory or trading company?
A: We are a factory.
Q: Where is your factory located ?
A: No. 28, Liaohe Road, Economic Development Zone, Liaocheng, Shandong, China (Mainland)
Q: How does your factory do regarding quality control ?
A: ISO11120 by BV
Q: Trade terms ?
A: T/T , L/C
