Custom Wholesale High Quality Mobile Cng Station For Car Fueling

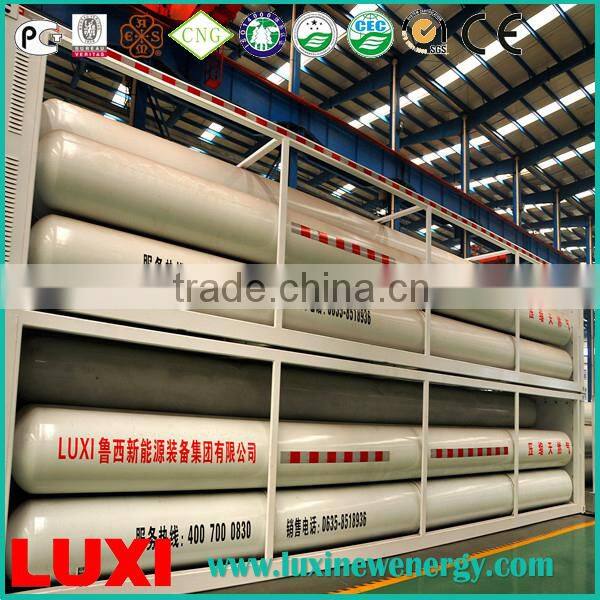

Product Pictures of Mobile Cng Station For Car Fueling
Product Description of Mobile Cng Station For Car Fueling
9-tube bundle container | |||||
|
Execution standard : ISO11120 Cylinder-design , structure and test of seamless and reusable steel tube with a capacity between 150 L to3000 L .ISO 668 Classification , dimensions and ratings of series 1 container | |||||
|
Tube Bundle Container |
Item |
Data |
Cylinder |
Item |
Data |
Type |
GSJ09-2210-CNG-25 |
Working pressure |
25MPa |
||
Container quality |
28721Kg |
Working temperature |
-50~65℃ |
||
Filling quality |
4511Kg |
Main material |
4130X |
||
Rated quality |
33232Kg |
cylinder QTY |
9 |
||
Major risk category |
2.1 |
Total volume |
19.89M3 |
||
UN code |
1049 |
Pressure for water pressure test |
37.5MPa |
||
Filling medium |
CNG |
Dimension |
559x14.8x10950 |
||
|
Pressure for gas tightness test |
25MPa |
Design temperature |
65℃ |
||
|
Pressure for pipeline water pressure |
37.5MPa |
Medium property |
Explosive |
||
Filling volume |
6265Nm3 |
Bursting discs |
Burst pressure |
37.5MPa |
|
Dimension |
12192x2438x1890 |
||||
Transporting |
Highway combined transport |
Bursting disc device discharge aperture |
≥20 |
||
Design service life |
Fifteen years |
||||
♦Factory Show
We use the most advanced production line equipment, large punching machine, large rolling machine, CNC automatic welding machine, vacuum unit, CNC spinning shut, closed end equipment, automated heat treatment equipment, CNC winding equipment, electrostatic spraying equipment, helium mass spectrometer leak detector, spectrum analyzer, automatic ultrasonic flaw detector, X-ray detection machine, universal testing machine, impact testing machine and other sound sophisticated detection equipment.
Why Choose
◊ Certifications
◊ Internal coating
A layer of special powder on the inner wall will prevent the filling medium from contacting with the inner wall directly. The special power is non-metal material that is compatible with the filling medium in the cylinder, and has the resistance to erosion and the ability to isolate hydrogen so as to maintain the cylinder’s mechanical behaviors. This method would significantly lengthen the service life and improve the operation safety. This technology is generally applied in CNG containing higher hepatic gas and petroleum pipelines. After the coating process , the steel cylinder’s service life will be doubled even if erosive impurities are contained in the filling gas.
◊ Inspection
Each of our exported products will be checked by customs inspector
◊ Our Servise
1 We are china leading CNG&LNG equipment manufacture
2 We are GOLD supplier of Alibaba
3 Inspected by the inspection institution of Bureau Veritas Certification
4 Best quality & Best service with competitive price..
Q: Are you a factory or trading company?
A: We are a factory.
Q: Where is your factory located ?
A: No. 28, Liaohe Road, Economic Development Zone, Liaocheng, Shandong, China (Mainland)
Q: How does your factory do regarding quality control ?
A: ISO11120 by BV
Q: Trade terms ?
A: T/T , L/C
