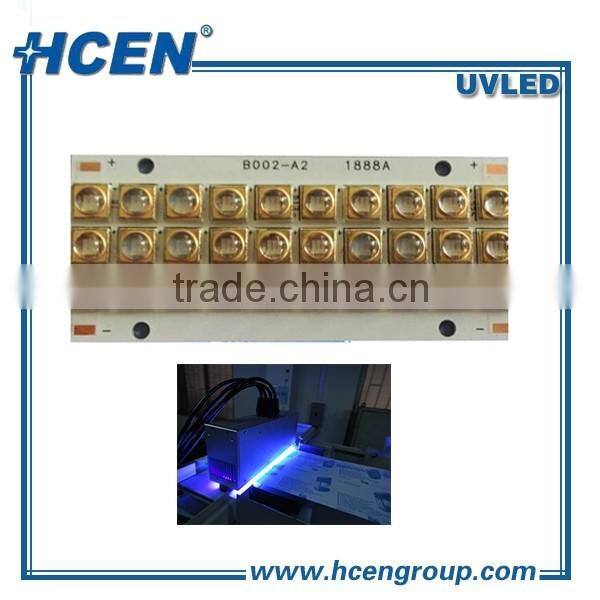

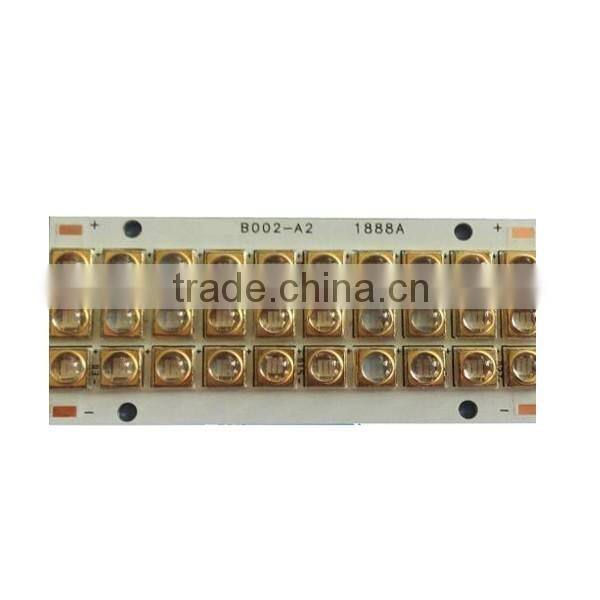

High current/ 365nm Solution (4W/cm2 at 365nm)Chip on board 100w 365 uv led
Features

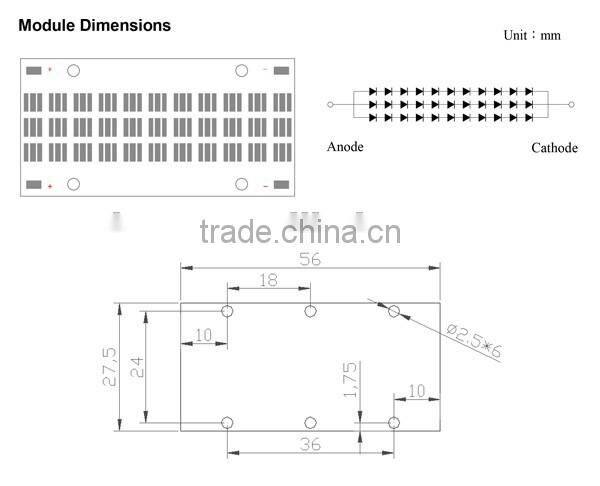

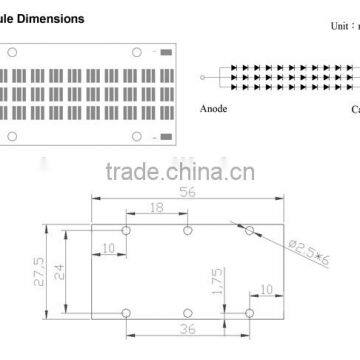

1. Size 56mm×27.5mm×1.5mm
2. Efficient lighting area 56×14mm
3. Long operating life
4. High reliability
5. RoHS compliant

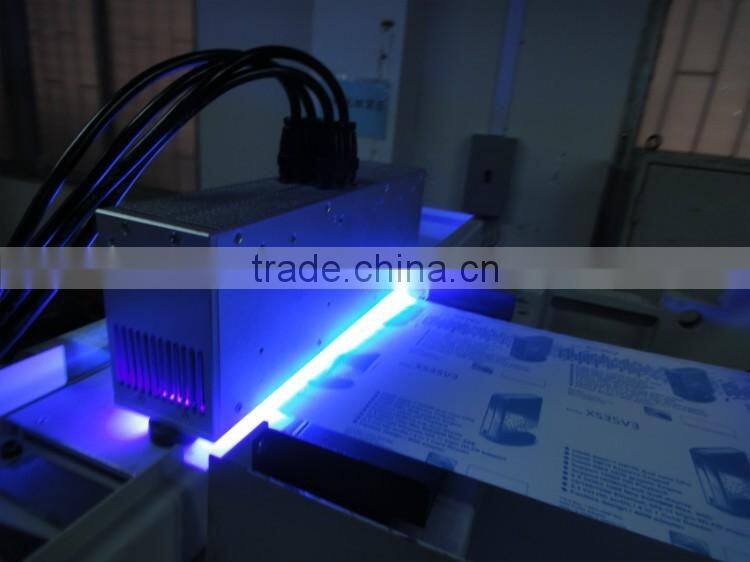

Applications
1. Ink curing
2. Resin curing
3. Fluorescence excitation
4. Lithography
Characteristics of UV LED
(1) Absolute Maximum Ratings at TA=25°C
Parameter |
Symbol |
Rating |
Uni6ts |
|
Input Power |
Pi |
99 |
W |
|
DC Forward Current |
IF |
2100 |
mA |
|
Junction Temperature |
Tj |
125 |
°C |
|
Operating Temperature Range |
Topr |
-40°C To +85°C |
|
|
Storage Temperature Range |
Tstg |
-40°C To +100°C |
||
(1) Electrical / Optical Characteristics
Ta=25℃ RH=40%
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Units |

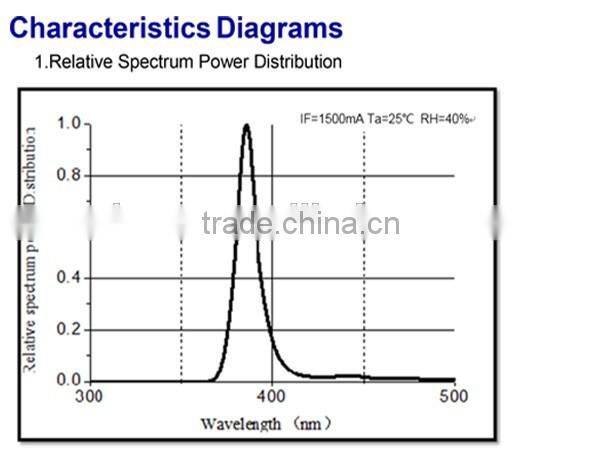

Peak Wavelength[1] |
λp |
— |
385 |
— |
nm |
|
Radiant quantity[2] (500mA[3],10mm[4],10s) |
ω[5] |
— |
12600 |
— |
mJ/cm2 |
|
Radiant quantity[2] (500mA[3],50mm[4],10s) |
ω[5] |
— |
2600 |
— |
mJ/cm2 |
|
Radiant quantity[2] (500mA[3],100mm[4],10s) |
ω[5] |
— |
9500 |
— |
mJ/cm2 |
Forward Voltage [4] |
VF |
38 |
— |
42 |
V |
Spectrum Half Width |
Δλ |
— |
14 |
— |
nm |
Notes:
1.Peak wavelength measurement tolerance:±3nm
2.Radiant flux measurement tolerance:±10%
3.500mA is single light emitting diode DC forward current
4.Distance between light exiting surface and UV energy apparatus
5.ω is the total radiant quantity as measured with an UV energy apparatus
Sample Availability & Policy:
We will provide samples of products upon customer's request. To help us decide favorably on sample requests, we ask interested customers to send comprehensive buyer information for our review.
Guarantees/Warranties/Terms and Conditions:
We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any products found to be defective under normal use.
Export/Import Processing Support:
We are according to your requirements and provide export services to your location via express delivery.
After Sales Service:
Our customer service personnel are experienced product specialists who can answer your questions five days a week from 9am to 5am. Please contact us today.
HCEN group is the professional manufactuer of UV LED emiter.
R&D team member back from Japan and Germany.
we can provide customized solution for your uv led applicaiton case.
Feel free to contact:
Shenzhen HCEN Technology Co., Ltd.
Add:Rm 1704B-1705, Tower A, Times Bldg, Tian'an Cyber Park, Futian Distric ,Shenzhen, China
