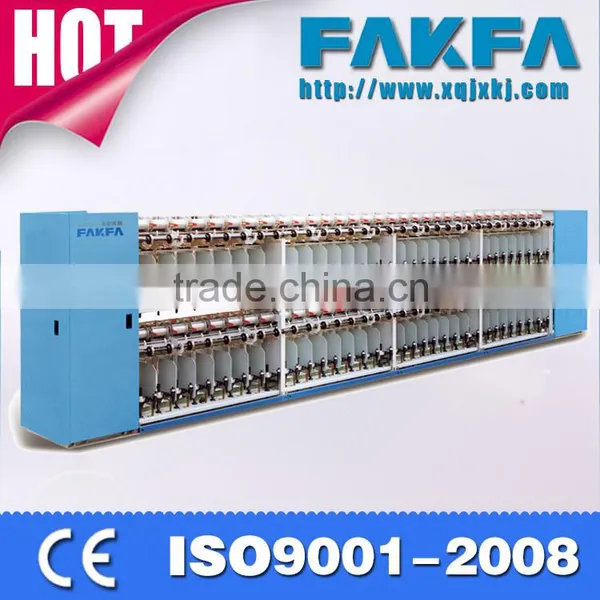

textile machinery Two for one Twister for Synthetic Yarn

FOB Price

USD $11,500 - $24,500 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Type:	Other, Chemical Fiber	Place of Origin:	Zhejiang, China
Brand Name:	XIANQU	Model Number:	XQ310G	Voltage:	380V
Power(W):	15kw	Dimension(LWH):	245008401900mm	Certification:	ISO9001:2008
Warranty:	One Year	After-sales Service Provided:	Overseas third-party support available

Features:

1.The reasonable layer height without carts makes operation easier.

2.The spindles treated with special technology, malking the machine adaptable to a wider range.

3. Simple and effective driving system makes the maintenance extremely easy and convenient.

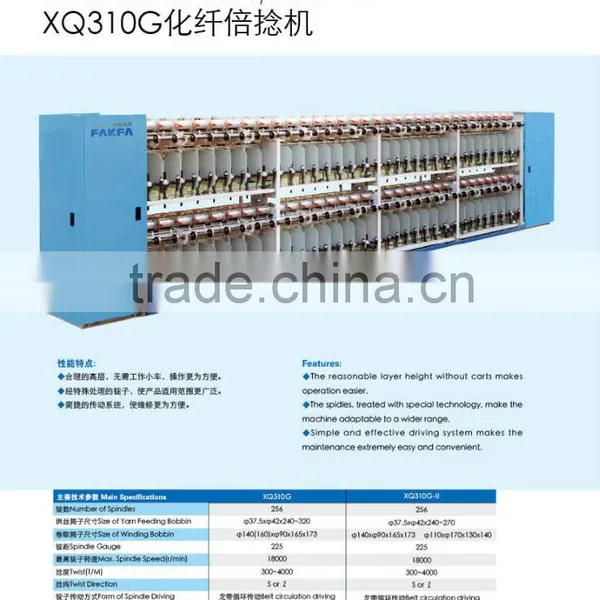

Technical Specification

Number of Spindles	256 Spindles As Basic Number(16 Multiplication and so on)
Spindle Distance	225mm
Size of Yarn Feeding Bobbin	Φ37.5Φ42240 ~(270~320)
Size of Winding Bobbin	Φ140(160)Φ90165173 Φ140Φ90165173 Φ110Φ170130*140
Max. Spindle Speed	18000 r/min
Twist	300 ~4000 T/M
Twist Direction	S or Z
Form of Spindle Driving	Belt Circulation Driving

Xinchang Pioneer Machinery Science & Technology Co., Ltd.: Contact nameIan Lu; Phone86-575-86332466; Address(No. 5, Lingchi Road, Xinchang County) Floor 3, Bldg. 4, Science And Technology Incubator, High-Tech Zone, Xinchang County
