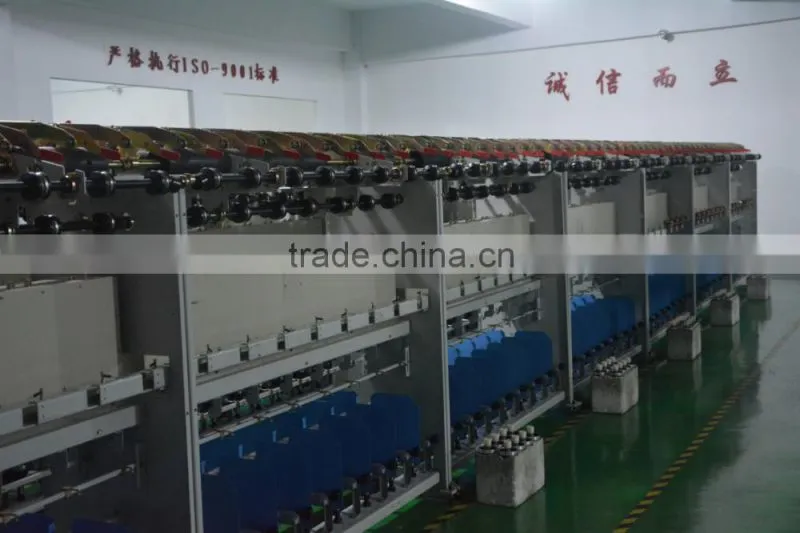

Textile Machinery False Yarn Twisting Machine
US$ 21,500 - 26,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Chemical Fiber
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Ning Bo OR Shang Hai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Two-For-One Twisting Machine For Short Fibre ManufacturerUS$ 10,500 - 13,500MOQ: 1 Set -
Full Electronic Elastane Spandex Lycra Yarn Covering MachineUS$ 15,500 - 20,000MOQ: 1 Set
-
False Twisting Machine/False Two-for-one Twisting MachineUS$ 21,500 - 26,500MOQ: 1 Set
-
Yarn Twisting Machine/two for One Yarn Twisting MachineUS$ 21,500 - 26,000MOQ: 1 Set
-
Two for One Twisting Machine for Cotton Yarn Making MachieUS$ 10,500 - 14,500MOQ: 1 Set
Condition
New
Type
Other, Chemical Fiber
Place of Origin
Zhejiang, China
Brand Name
XIANQU
Model Number
XQ328G
Voltage
380V
Power(W)
19kw
Dimension(L*W*H)
24500*840*1900mm
Certification
ISO9001:2008
Warranty
One Year
After-sales Service Provided
Overseas third-party support available
Features:
1.The thermal box is of German technology to achieve stable temperature a still longer and more stable service life.
2.A Japanese technology is applied to achieve a more stable spindle speed.
3. The integrated mechanico-electrical design to make operation and management much easier.
Technical Specification
| Number of Spindles | 192 Spindles As Basic Number(16 Multiplication and so on) | Type | Two Side,Single Layer |
| Spindle Distance | 225mm | Spindle | Spindle Bell Wheel Diameter:Φ28 |
| Spindle Speed | 9000-16000 rpm | Faise Twist Range | Motors for winding and spindles are separate. Theoretically the number of thrns are settable as one likes and intinitely regulatable |
| Twis Direction | S or Z | Tension Control | Multi-sectional tension ball and tensiong ring are jointly put in use. |
| Maximum Winding Capacity | Φ160*152 | Applicability | 50D-400D Polyester & Chemical Fiber Filament Yarns |
| Unwinding Spool Specification | Φ110*Φ42*270-290 | Max.Speed of the false twister rotor | 260000RPM |
| Electro-Thermal Power | 10.5kw | Thermal Box Yarn-Pass Length | 400mm |
Overall size |
24500*840*1900mm | Winding Angle | Regulatable at will |
