Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > 2016 Hot Selling New Cctv System Product 720P Digital Security Camera Wireless Nvr Kit

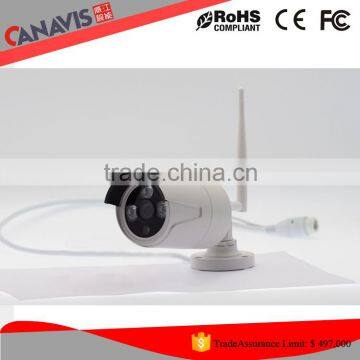

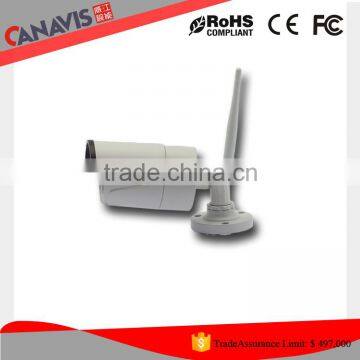

2016 Hot Selling New Cctv System Product 720P Digital Security Camera Wireless Nvr Kit
US$ 100 - 100
MOQ: 3 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Canavis
Model Number:
CA-WL-1MP
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Home Security System 1.0 Megapixel ir Night Vision Wholesale 720p Cctv Ahd CameraUS$ 10.12 - 12.12MOQ: 1 Piece -
Wholesale Cctv Security System 1.0 Megapixel 720p High Definition Outdoor Ahd CameraUS$ 11.11 - 13.11MOQ: 1 Piece
-
Outdoor/indoor Waterproof Bullet 1.0 Megapixel 720p for Home Security System Cctv Ahd CameraUS$ 22.15 - 24.15MOQ: 1 Piece
-
Home Security System 2.0 Megapixel 1080p With ir Cut Night Vision Plastic Indoor Dome Cctv Ahd CameraUS$ 10.92 - 12.92MOQ: 200 Pieces
-
Promotion 2.0 Megapixel High Definition Indoor 1080P Night Vision Cctv Security System Ahd Dome CameraUS$ 12 - 12MOQ: 500 Pieces
Place of Origin
Guangdong, China
Brand Name
Canavis
Model Number
CA-WL-1MP
Type
IP Camera
Style
Bullet Camera
Sensor
Other, 1/4" Progressive Scan Sensor
Technology
NetWork
Special Features
Waterproof / Weatherproof
Reated Products
2016 hot selling new cctv system product 720P digital security camera wireless nvr kit
Model name: CA-WL-1MP

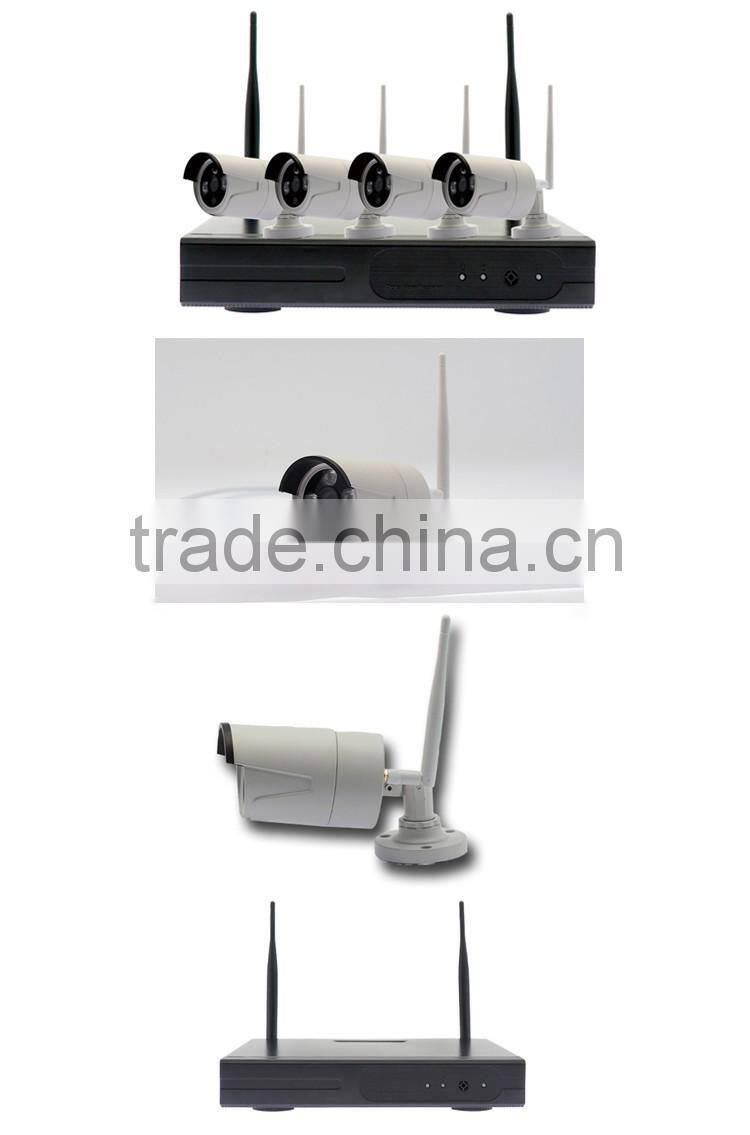

Product Show

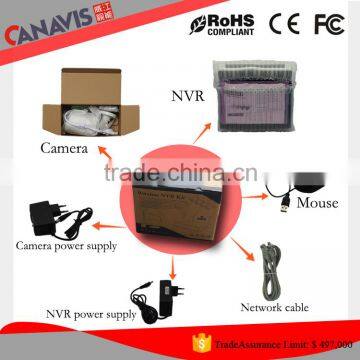

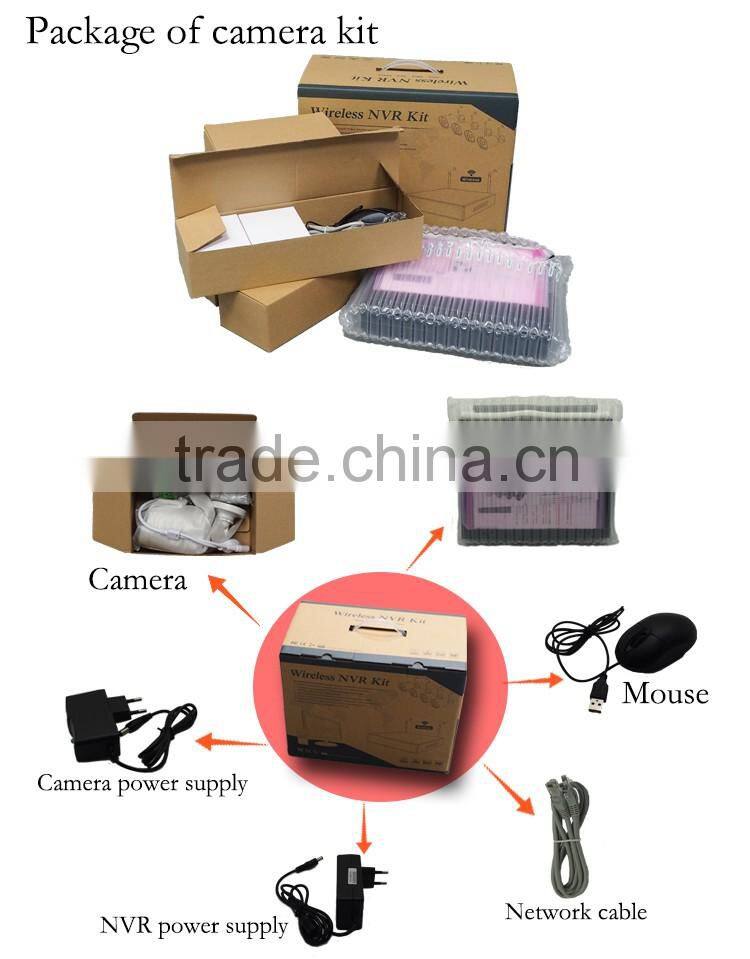

Item specifics
- 4 pcs 720P camera
- 1pcs 4ch 720P NVR
- 1pcs network cable
- 1pcs12V 3A+4pcs 12V 2A power supply
- English User Manual
- CD(CMS,mobile app,manual), Mouse
Features:
1. HD video output
2. Automatic connection with IP, save installation cost
3. Plug and play, P2P service
4. Mobile viewing, iphone&android app
5. Free DDNS :,no need DDNS setting
Product Description

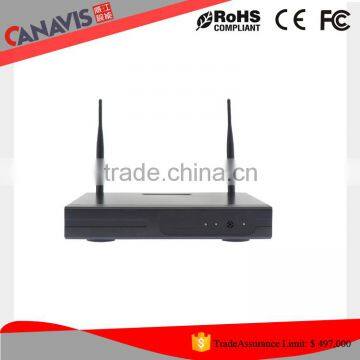

| Wireless NVR Specification | ||
| Model | K9504-W | |
| Operating System | Embedded Linux OS | |
| AV(audio/video)input | Network Video | 4CH |
| Network video input broadbank | 20Mbps | |
| AUdio Bitrate | 64Kbps | |
| AV (audio/video) output | HDMI input | 1ch,resolution:1024x768,1366x768, 1440x900,1920x1080p |
| VGA output | 1ch,resolution:1024x768,1366x768, 1440x900,1920x1080p |
|
| AV CODEC Specification | Video Resolution | D1/720P |
| synch-playback | 4CH | |
| Video Control | Video/Capture mode | Maual,Time,Motion,Alarm |
| Playback mode | Real time,Routine,Event | |
| Backup | USB backup | |
| Alarm | Alarm Input | 4ch (optional) |
| Alarm Output | 1ch (optional) | |
| Hard Disk | Type | 1*SATA interface |
| Max Capacity | 4 TB at most for each | |
| External Interface | Network Interface | 1 adaptable RJ45 10M/100M, 1 WIFI interface |
| USB Interface | 2 USB 2.0 | |
| Protocol | UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up) DHCP (Automatically obtain an IP address), etc… |
|
| Network Control | ||
| Others | Power Supply | DC12V 3A |
| Power Consumption (W) | ≤5W(Without HDD) | |
| Operate Temperature (°C) | -10℃~+55℃ | |
| Working Humidity (%) RH | 10%~90% | |
| Size | 257mm(W)×210mm(V)×45mm(H) | |
| Weight(excluding HDD) | ≤1Kg | |
| IPC Specification | ||
| Technical Parameters | Model | PE3010-W |
| Sensor | 1/4” Progressive Scan Sensor | |
| Signal System | PAL/NTSC | |
| Resolution | 1280 x 720 16 : 9 High Defination | |
| Minimum illumination | Color: 0.1 Lux; B/W: 0.01 Lux | |
| Shutter | 1/25s to 1/25,000s | |
| Lens | 3.6MM | |
| OSD | Date Time & Title | |
| White Balance | Auto | |
| Day&Night | Auto / Color / BW | |
| 3D-DNR | Auto | |
| Mirror/Flip | On / Off | |
| Frame Specification | Three Streaming at the Same Time: H.264 128x720@30fps or below H.264 640x480@30fps or below |
|
| S/N | > 39.1 Db | |
| Interface | RJ45 / WIFI 802.11b/g/n | |
| General Specification | Anti-thunder Level | Standard IEC61000-4-5 |
| Working Temperature/Humidity | -10℃ to +50℃ / 30% to 80% RH | |
| Storage Temperature/Humidity | -20℃ to +60℃ / 20% to 90% RH | |
| Power Input | DC12V-1A | |
| Power consumption | ≤6W | |
| Size | 205(L)×70(W)×55 (H)mm | |
| Weight | 500g | |
| Level of Protection | IP66 | |
