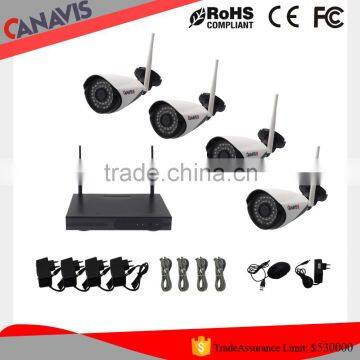

Home security camera 1080P nvr kits 4 channel 3g wireless surveillance camera

Wireless NVR Specification

System

Operating System

Embedded Linux OS

AV (audio/video) output

HDMI input

1ch,resolution:1024x768,1366x768,
1440x900,1920x1080p

VGA output

1ch,resolution:1024x768,1366x768,
1440x900,1920x1080p

AV CODEC Specification

Video Resolution

D1/720P

synch-playback

4CH

Video Control

Video/Capture mode

Maual,Time,Motion,Alarm

Playback mode

Real time,Routine,Event

Backup

USB backup

Hard Disk

Type

1*SATA interface

Max Capacity

4 TB at most for each

External Interface

Network Interface

1 adaptable RJ45 10M/100M, 1 WIFI interface

Others

Power Supply

DC12V 3A

Power Consumption (W)

≤5W(Without HDD)

Operate Temperature (°C)

 -10℃~+55℃

Size

257mm(W)×210mm(V)×45mm(H)

Weight(excluding HDD)

≤1Kg

IPC  Specification

Technical Parameters

Sensor

1/4” Progressive Scan Sensor

Resolution

1280 x 720 16 : 9 High Defination

Minimum illumination

Color: 0.1 Lux;  B/W: 0.01 Lux

Shutter

1/25s to 1/25,000s

Lens

3.6MM

OSD

Date Time & Title

White Balance

Auto

Day&Night

Auto / Color / BW

3D-DNR

Auto

S/N

> 39.1 Db

Interface

RJ45 / WIFI 802.11b/g/n

General Specification

Anti-thunder Level

Standard IEC61000-4-5

Working Temperature/Humidity

 -10℃ to +50℃ / 30% to 80% RH

Storage Temperature/Humidity

 -20℃ to +60℃ / 20% to 90% RH

Power Input

DC12V-1A

Power consumption

≤6W

Level of Protection

IP66
