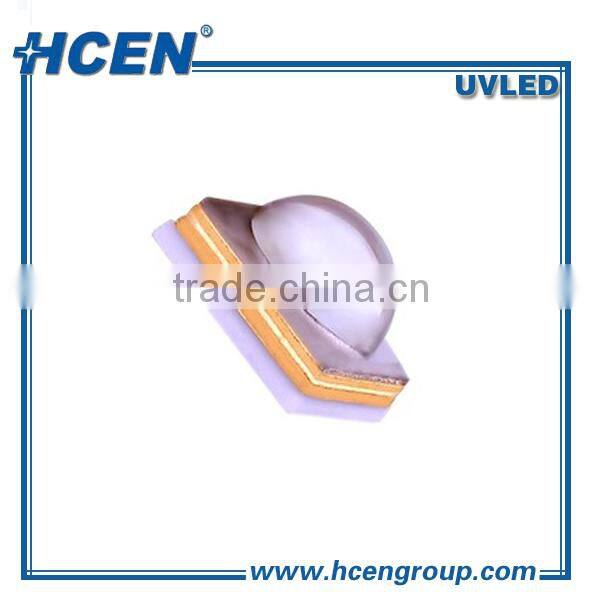

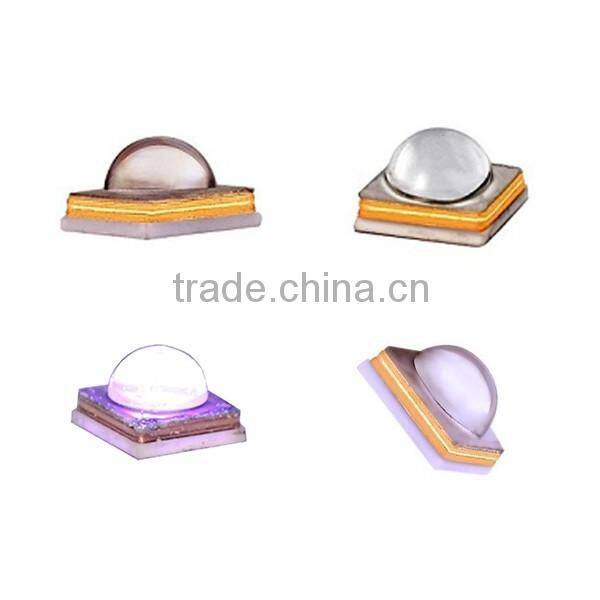

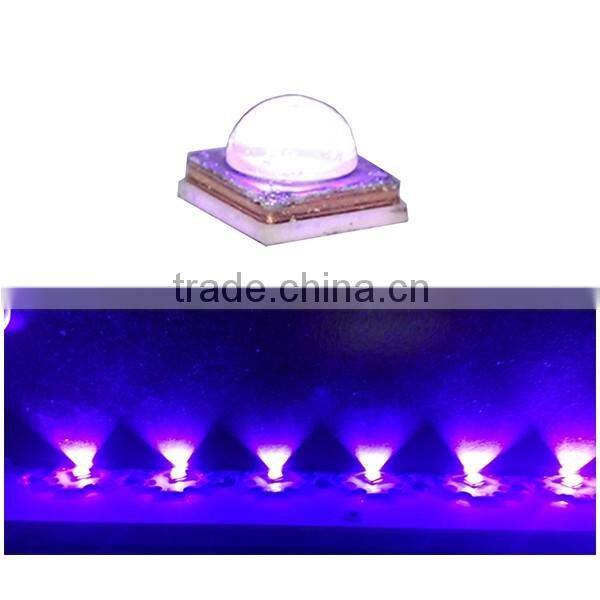

385nm 395nm 405nm High Power UV LED Diode for UV Curing
Features

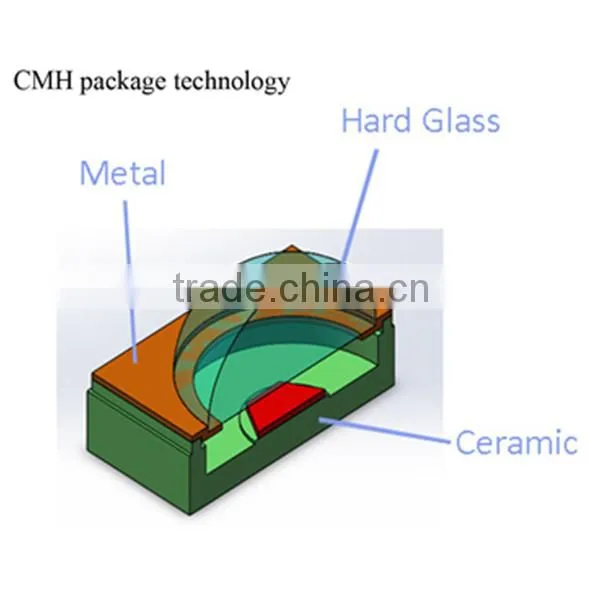

1. CMH real inorganic package
2. Hermetic package

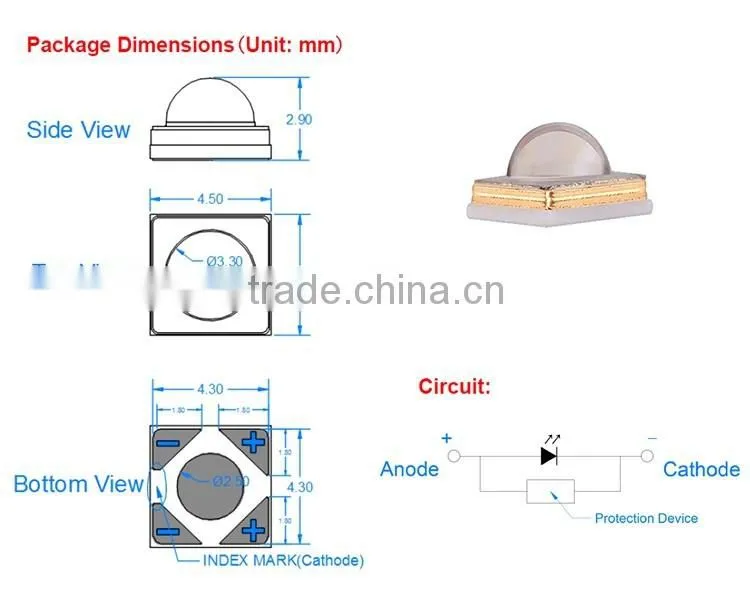

3. Dimension 4.5mm×4.5mm×2.9mm
4. Long operating life
5. High reliability
6. Superior ESD protection
7. RoHS compliant
Applications
1. Fluorescent spectroscopy
2. Sensors and monitors
3. Bio-analysis/detection
4. Phototherapy

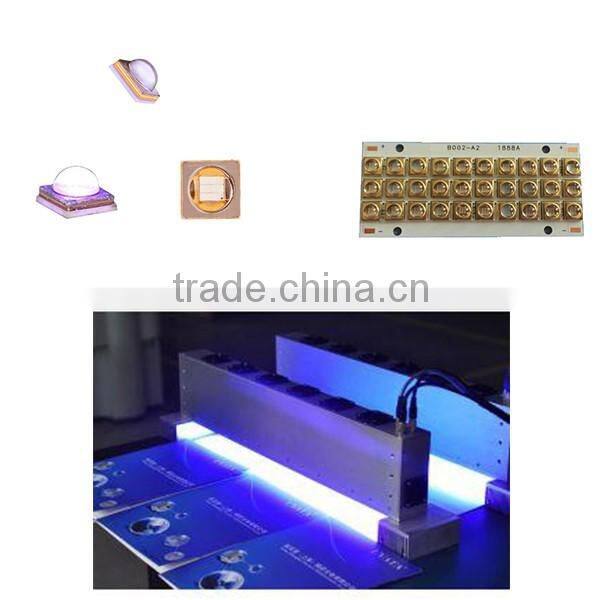

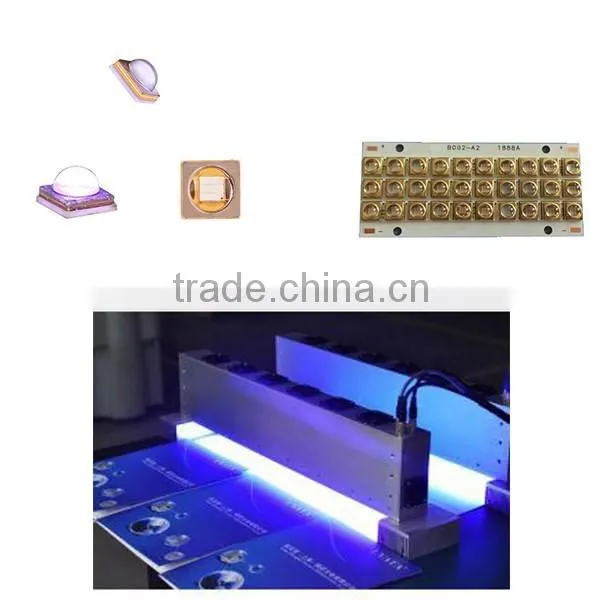

5. UV curing

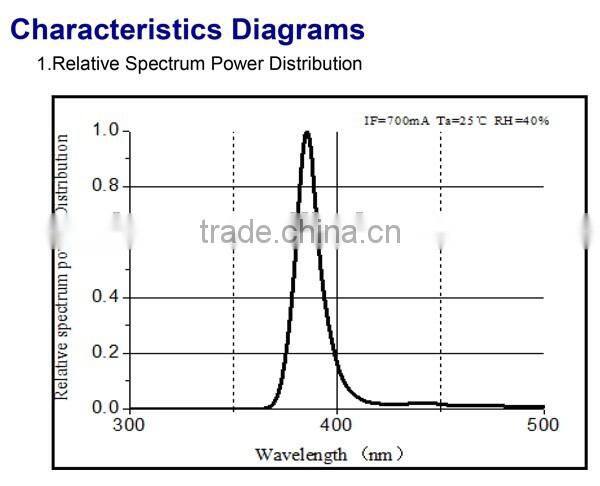

Characteristics of UV LED
(1) Absolute Maximum Ratings at TA=25°C
Parameter |
Symbol |
Rating |
Units |
Input Power |
Pi |
3 |
W |
DC Forward Current |
IF |
700 |
mA |
Junction Temperature |
Tj |
125 |
°C |
Operating Temperature Range |
Topr |
-40°C To +85°C |
|
Storage Temperature Range |
Tstg |
-40°C To +100°C |
|
(1) Electrical / Optical Characteristics
Ta=25℃ RH=40%
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Units |

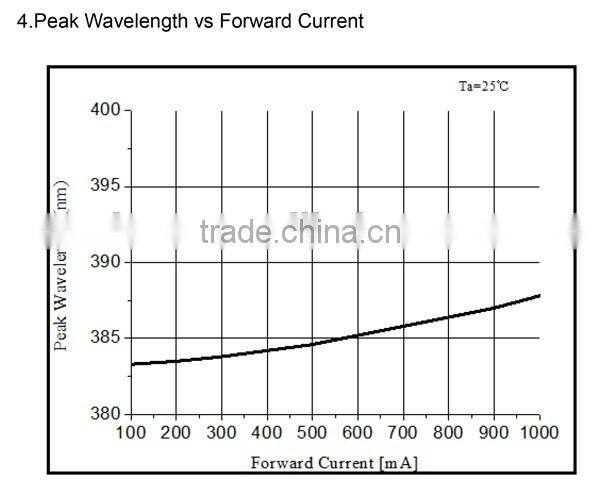

Peak Wavelength[1] |
λp |
— |
385 |
— |
nm |
Radiation Flux [2](500mA) |
Φe[3] |
700 |
— |
800 |
mW |

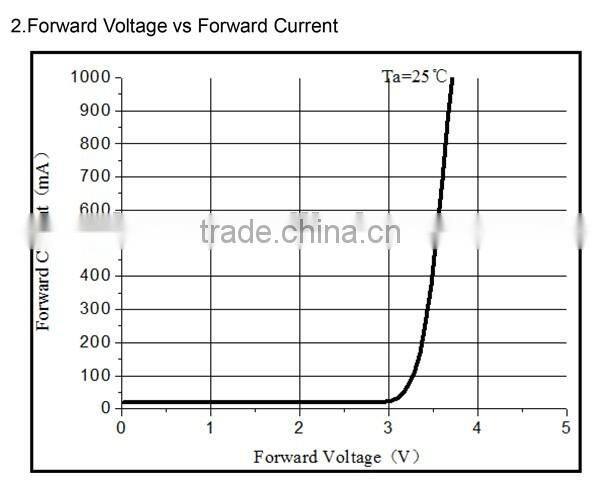

Forward Voltage [4] |
VF |
— |
3.4 |
3.8 |
V |
Radiation Flux [2](700mA) |
Φe[3] |
1000 |
— |
1200 |
mW |
Forward Voltage [4] |
VF |
— |
3.6 |
4.0 |
V |
Thermal Resistance[5] |
Rth |
— |
10 |
— |
°C/W |
Thermal Resistance[5] |
Rth |
— |
12 |
— |
°C/W |

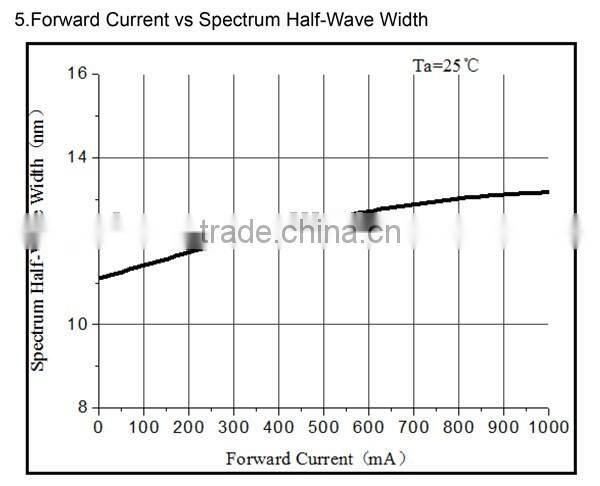

Spectrum Half Width |
Δλ |
— |
13 |
— |
nm |

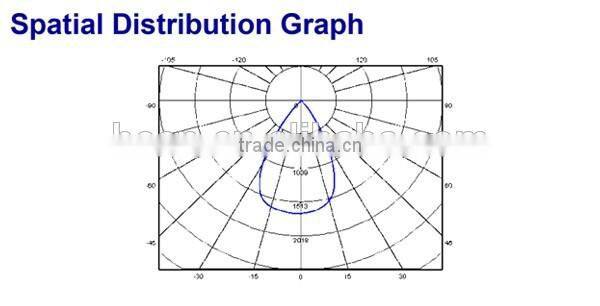

View Angle |
θ1/2 |
— |
60 |
— |
deg |
Notes:
1.Peak wavelength measurement tolerance:±3nm
2.Radiant flux measurement tolerance:±10%
3.Φe is the total radiant Flux as measured with an integrated sphere
4.Forward voltage measurement tolerance:±3%
5.Rth is the thermal resistance between chip junction to PCB board bottom
Sample Availability & Policy:
We will provide samples of products upon customer's request. To help us decide favorably on sample requests, we ask interested customers to send comprehensive buyer information for our review.
Guarantees/Warranties/Terms and Conditions:
We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any products found to be defective under normal use.
Export/Import Processing Support:
We are according to your requirements and provide export services to your location via express delivery.
After Sales Service:
Our customer service personnel are experienced product specialists who can answer your questions five days a week from 9am to 5am. Please contact us today.
Skype:Rita_Zhl
HCEN group is the professional manufactuer of UV LED emiter.
R&D team member back from Japan and Germany.
we can provide customized solution for your uv led applicaiton case.
Feel free to contact:
Shenzhen HCEN Technology Co., Ltd.
Add: RM 17EF, Tower B NEO Bldg, Futian Distric ,Shenzhen, China
