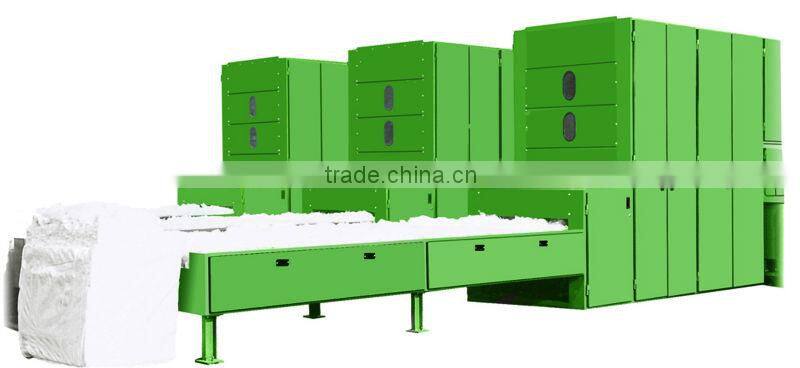

bale opener

Specifications

used for opening different kinds of fibre bales. It can weigh the fibre accurately according to the required fibre proportion

1. Main specification:

Production Capacity: 250kg/h

Working width: 1600mm

Applicable fibre : cotton, wool, chemical fiber ,PPS,Acrylic,META-ARAMID,etc.

Fiber length: up to 75mm

Installed power: 4.45kw.

Scale measuring accuracy: 2-4%

Supplied compressed air: Air volume: 0.8m³/h. Air pressure: 8-10kg/cm²

2. Main performance:

The machine is used for opening different kinds of fibre bales. It can weigh the fibre accurately according to the required fibre proportion.

3. Main structural features

²  Reliable photocell control can guarantee a continuous feeding and accurate weighing system. .

²  The conveying belt and spiked lattice are controlled by step-less variable-frequency motors, thus the feeding quantity is easy to adjust.

²  Weight to be weighed can be preset.

²  Pneumatic control of the open and close of the bucket by the preset programme.

²  Automatic difference compensation control.

²  Automatic production accumulation.
