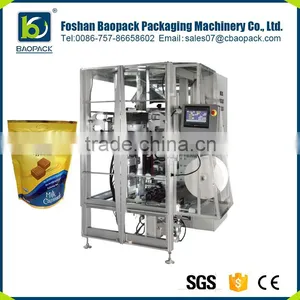

New Arrival Pneumatic vacuum packing machine used
SPECIFICATIONS:
| Item | Content |
| Model | CB-VM52 |
| Film with range | 300mm-520mm |
| Bottom gusset depth | 40-80mm |
| Die way | Double pull |
| Max packing speed | 40 bag/min |
| Film thickness | 0.04--0.09mm |
| Type of bag making | Standard Doy-pack,Doy-pack with Zipper |
| Bag size | (L)40-130(w)95-180mm |
| Voltage | 5.3kw, 220v, 50/60HZ |
| Air consumption | 0.8Mps 0.7m³/min |
| Net weight | 750KG |
| Dimension | (L)1920X(W)1460X(H)2100mm |
| Package material | BOPP/CPP/VMCPP,BOPP/PE,PET/VMPET, PE,PET/PE,etc |
Please watch video about principle of operation as following
link https://youtu.be/ai34OG-nEMY

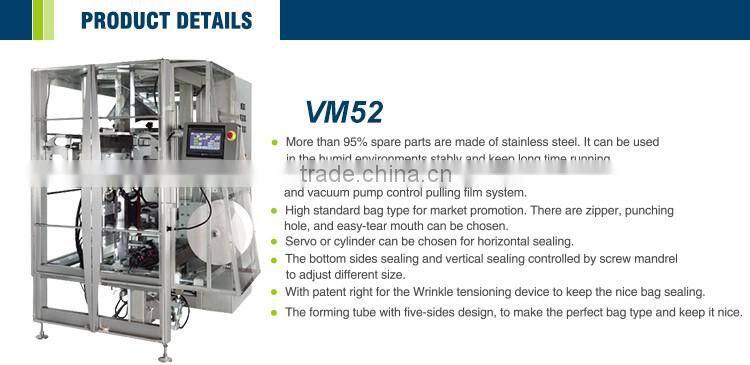

Main Features:
1: More than 95% spare are made of stainless steel. It can be used in the humid environments stably and keep long time running.
2: All conteolled by servo motor withe planetary gear box. There are belts and vacuum pump control pulling film system.
3: High standard bag type for market promotion. There are zipper, punching hole, and easy-tear mouth can be chosen.
4: Servo or cylinder can ba chosen for horizontal sealing.
5: The bottom sides sealing and vertical sealing controlled by screw mandrel to adjust different size.
6: With patent right for the Wrinkle tensioning device to keep the nice bag sealing.
7: The forming tube with five-sides design, to make the perfect bag type and keep it nice.
Pre-sales Services:
BAOPACK have the best salesmen to provide the most professional services.
Standing in the perspective of the customer to solve your queries.
Medium-sales Services:
BAOPACK have the trained team to follow your orders methodically to guarantee
the products can be finished on time with high quality.
After-sales Services:
BAOPACK have the technician team with many years of technical experience to
provide you the most professional after-sales services.
Q1: Can you send me the video of this machine in operating mode?
A: Yes, please check the link for this video https://youtu.be/ai34OG-nEMY
Q2:What is the material of contact food/material parts?
A: The contact food/material parts are made of 304# stainless steel.
The machine body can be 304# stainless steel or carbon steel.
Q3:Can this machine make different bag sizes?
A: One former can make one bag width, and the bag length can be adjustable within a range.
It should be ordered an extra former if you want to make the other bag width.
Q4: Does your company accept OEM?
A: Yes, we have a professional design and technical team to accept customization.
Q5:When you can deliver the machine after the order is placed?
A: We usually can arrange shipment after 30-40 working days,
but it depends on the quantity of the products.
Q6:How about your warranty?
A: We provide one year warranty and lifelong maintenance.
Q7:What can you provide after service?
A: We can provide machine testing video and pictures before delivery,
English manual, some free spare parts, installation in clients' factory and technical training.
