Specifications
1 single board double drive2 PLC and inverter control
3 high needle frequency
4 Touchable panel
5 min order 1 set
OPTIMIZED SOLUTIONS:
BEST CONFIGURATION, HIGH EFFICIENCY AND AUTOMATION
Inspiration is from you and it is for you. QTM is continuously striving for new products and seeking best solutions to meet different kinds of customers’ request. Tell us what you want,we will give you a prompt reply.
QTM has possessed mature technique in manufacturing various complete nonwoven production lines. Tell us your requirements; we will tailor made your own nonwoven production line.
Machine Details:

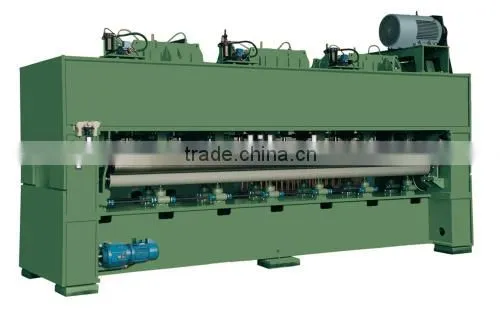

QBG411Z--Down stroke
QBG412---UP STROKE
Working width: |
1000mm-7200mm |
Maximum frequency of punching: |
1200/min |
Punching stroke |
40mm |
Needle density: |
3000-7500 /m |
Installed power |
23.46kw,42.2kw |
Board arrangement |
single board |
Compressed air quantity needed |
0.3m3/h |
Product use
The machine is mainly used to punch the non-woven fabrics.
Main structural features
a. Crankcase is driven by double shafts, it runs stably, has low fluttering.
b. There is aerodynamic brake structure in crankcase, ensuring needle board stop in the upper limit position, so that the board is easy to disassemble and assemble.
c. Output roller and input roller are driven by frequency motor, which speed can be automatically regulated according to technics needs. Crankcase motor is frequency motor, and frequency punching can be automatic regulated.
d. Cool lubricate, there is separate lubricate system in the machine.
e. One set of spare boards are equipped with the machine.
Workshop
Our service
- 90 years professional textile machinery manufacture experience, excellent service team
- sufficient spare parts with secured partner: Siemenz, Siegling, Danfoss, NSK, ABB, AB, Bekaert.Habsit
- One-for-one demonstration of model machine, fully understand your requirements
- Considerate installation and adjustment service, train your operator skillfully and professionally
- Regular return visit, technical support and sincere service
- 7x24 hours service line for your consult at any time
- overseas: 0086-532-84963363/84892458
- Please tell us your service requirement without hesitance when you need any support
- Free replacement of spare parts during 12 months of guarantee period
