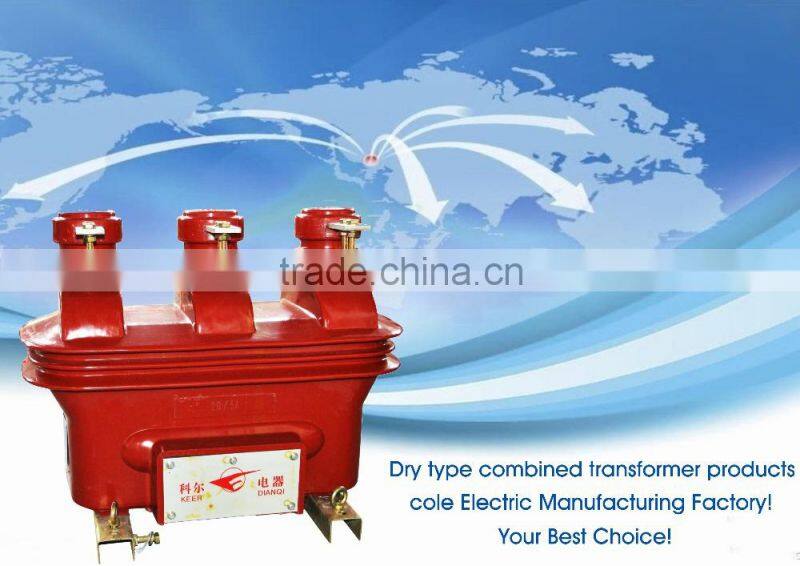

JLSZ-6,10KV Dry Type Electric Metering Box

Cole Electric Manufacturing Factory

 1.Safe, hardly inflammable, no pollution.

2.High accuracy voltage transformer.

3.Small volume, oil free, large capacity, easy installation

4. Lowloss.low noise.high reliablity.

5.Good quality and best price.

6. Passed IOS9001.

2.JLSZ-6,10 series power transformer technical parameters

current   technical parameters

A general without oil, no maintenance, high-performance products.

This company produces the JLSZ - 6, 10 kv binary combined transformer, using epoxy resin by pouring two current transformer two voltage transformer with fully enclosed insulation structure, it is a total of three phase outdoor 6, 10 kv power system voltage, voltage, electric energy metering in use.Especially in the country two network transformation, in the power grid line loss assessment, electricity precision measurement in use is the ideal product.

3.Using conditions

     Ambient temperature:
      Highest air temperature +40 °C

     Lowest  air temperature -25°C

     Highest daily average air temperature +30 °C

      Highest annual average air temperature +20 °

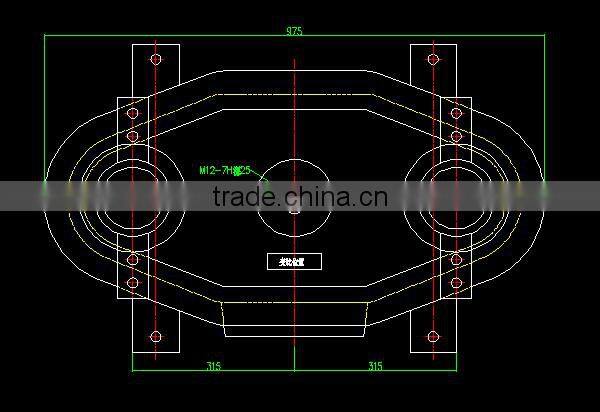

 4.Product Dimension

Cole Electric Manufacturing Factory Located in the chengdu cross-strait science and technology industrial development park,Sichuang Province ,With its inception in 2003,Company is mainly specialized in design, development, production, sales below 35 kv level combined transformer, 10 kv power transformer, outdoor vacuum switch and the combined substation as one camp in the name of the company.

 Product show

 Our Factory
