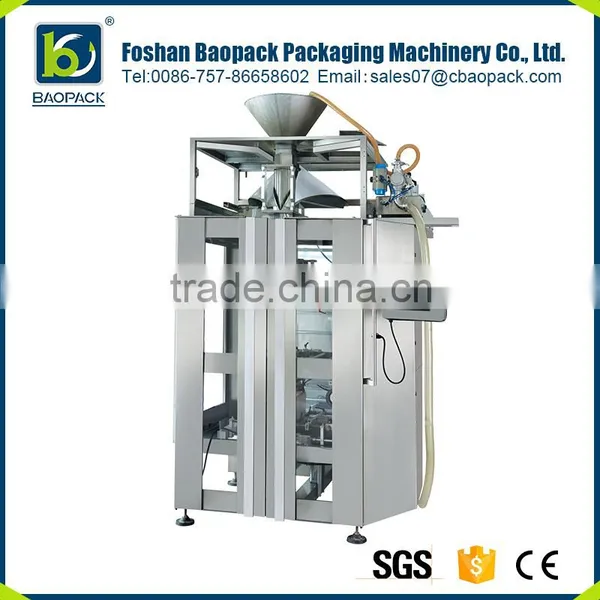

Alibaba hot sale automatic liquid packing machine
SPECIFICATIONS
| Item | Content |
| Model | CB-VZ82 |
| Film with range | 360mm-820mm |
| Accuracy | ≤±1.5% |
| Die way | Cots traction |
| Max packing speed | 30 bag/min |
| Film thickness | 0.04--0.09mm |
| Type of bag making | 4 Sides sealing bag |
| Bag size | (L)180-520mm (W)180-410mm |
| Voltage | 6.7kw, 220v, 50/60HZ |
| Air consumption | 0.8Mps 0.5m³/min |
| Net weight | 850KG |
| Dimension | (L)1920X(W)1860X(H)2500mm |
| Package material | BOPP/CPP,BOPP/VMCPP,BOPP/PE, PET/VMPET/PE,PET/PE,etc |
Please watch video about principle of operation as following
link https://youtu.be/_e8gaibXrE4

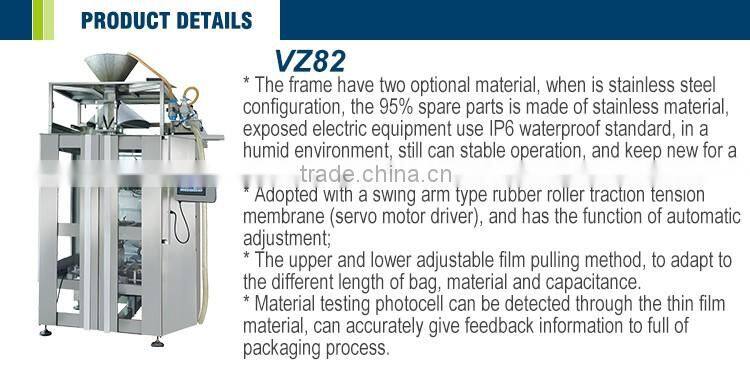

Main Features:
1: 95% spare parts are made of stainless material, exposed electric equipment use IP65 waterproof standard, in a humid environment, still can stable operation, and keep new for a long time.

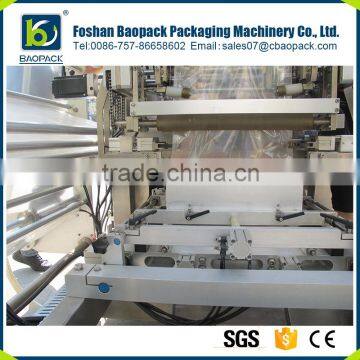

2: Adopted with a swing arm type rubber roller traction tension membrance (servo motor with planetary gear box), and has the function of automatic adjustment.
3: The upper and lower adjustable film pulling adapt to the different length of bag, material and capacities.
4: Material testing photocell can through the thin film material, can accurately give feedback information to full of packaging process.

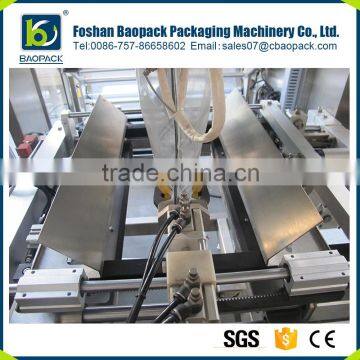

5: The eight unfolding wheel easily solve the four sides sealing bag easily overlappling problem.

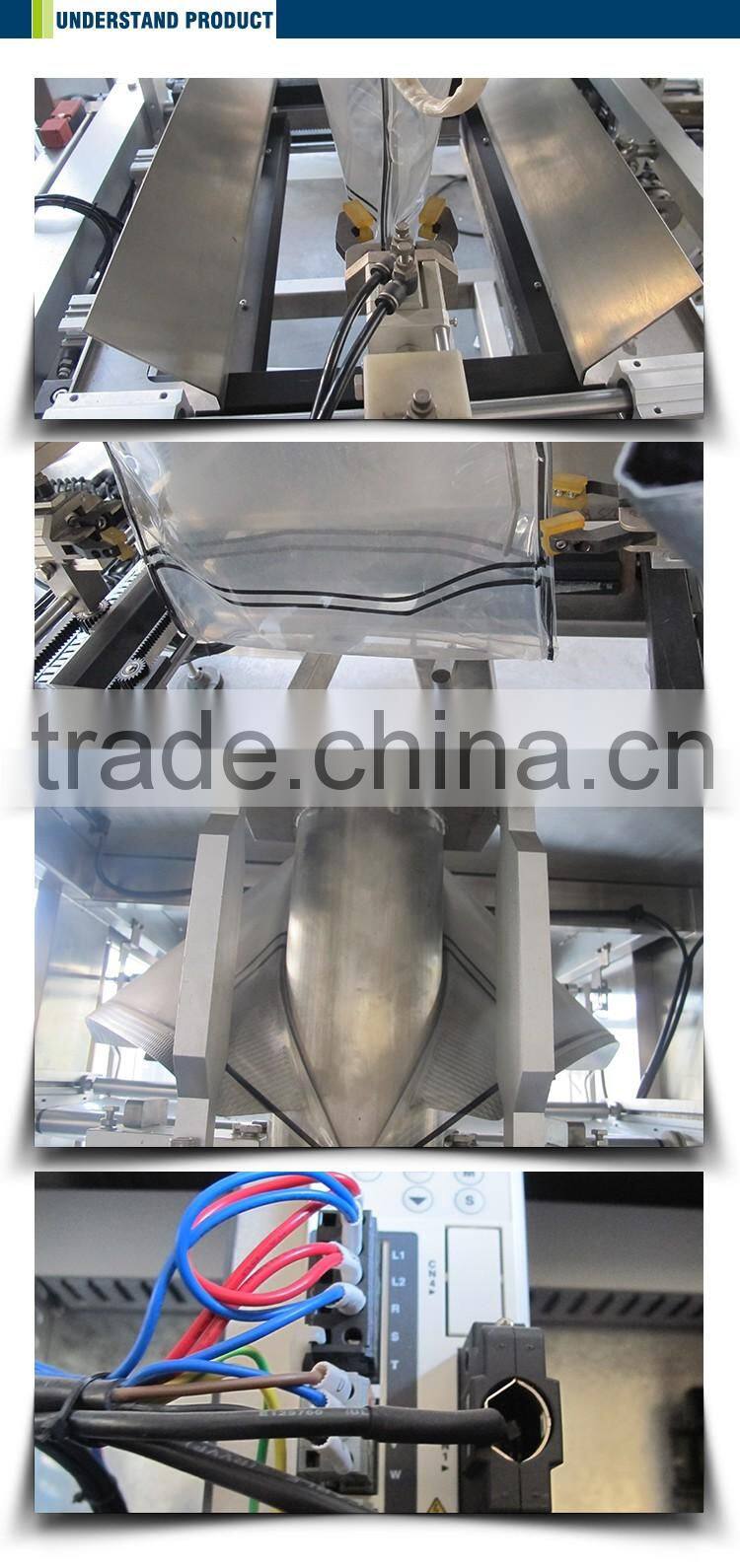

6: The hexagonal former design, molding bag better, a strong guarantee the apperance of the bag.
7: Horizontal sealing dynamic design have two optional device that cylinder power and servo fast transverse sealing.
8: The vertical sealing structure using a new type of screw mandrel to adjust different specifications.
Pre-sales Services:
BAOPACK have the best salesmen to provide the most professional services.
Standing in the perspective of the customer to solve your queries.
Medium-sales Services:
BAOPACK have the trained team to follow your orders methodically to guarantee
the products can be finished on time with high quality.
After-sales Services:
BAOPACK have the technician team with many years of technical experience to
provide you the most professional after-sales services.
Q1: Can you send me the video of this machine in operating mode?
A: Yes, please check the link for this video https://youtu.be/_e8gaibXrE4
Q2:What is the material of contact food/material parts?
A: The contact food/material parts are made of 304# stainless steel.
The machine body can be 304#stainless steel or carbon steel.
Q3:Can this machine make different bag sizes?
A: One former can make one bag width, and the bag length can be adjustable within a range.
It should be ordered an extra former if you want to make the other bag width.
Q4:Does your company accept OEM?
A: Yes, we have a professional design and technical team to accept customization.
Q5:When you can deliver the machine after the order is placed?
A: We usually can arrange shipment after 30-40 working days,
but it depends on the quantity of the products.
Q6:How about your warranty?
A: We provide one year warranty and lifelong maintenance.
Q7:What can you provide after service?
A: We can provide machine testing video and pictures before delivery,
English manual, some free spare parts, installation in clients' factory and technical training.
