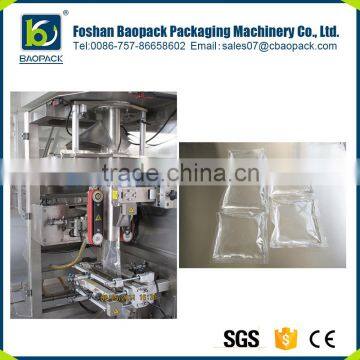

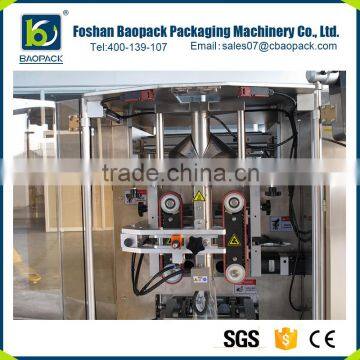

Automatic small packet pill sugar packing machine
SPECIFICATIONS
| Item | Content |
| Model | CB-VS52 |
| Film with range | 190mm-520mm |
| Accuracy | ≤±1.5% |
| Die way | Double pull |
| Max packing speed | 40 bag/min |
| Film thickness | 0.04--0.09mm |
| Type of bag making | 3-side-seal, 4-side-seal |
| Bag size | (L)50-350(w)95-260mm |
| Voltage | 4.0kw, 220v, 50/60HZ |
| Air consumption | 0.8Mps 0.35m³/min |
| Net weight | 900KG |
| Dimension | (L)1400X(W)1260X(H)1680mm |
| Package material | BOPP/CPP,BOPP/VMCPP,BOPP/PE, PET/VMPET/PE,PET/PE,etc |
Please watch video about principle of operation as following
link https://youtu.be/SEnTteih9u4
Main Features:
1: Max bag width is 260mm.
2: The horizontal sealing using the new anti-folding device, easy to adjust, stable performance.
3: Servo vacuum film pulling system makes the machine high quality, work stable & longer life.
4: Advanced automatic correction system, tracking and positioning accuracy.
5: New vertical sealing structure is easy to adjust & use.
6: The improved former beautiful desiged and the best manufacturing process.
7: The film pulling frame is simple deign, easy to adjust the eye mark and install the film.
8: It is convenient for user operate the machine by the separate film installation system of the film pulling frame.
Pre-sales Services:
BAOPACK have the best salesmen to provide the most professional services.
Standing in the perspective of the customer to solve your queries.
Medium-sales Services:
BAOPACK have the trained team to follow your orders methodically to guarantee
the products can be finished on time with high quality.
After-sales Services:
BAOPACK have the technician team with many years of technical experience to
provide you the most professional after-sales services.
Q1: Can you send me the video of this machine in operating mode?
A: Yes, please check the link for this video https://youtu.be/SEnTteih9u4
Q2:What is the material of contact food/material parts?
A: The contact food/material parts are made of 304# stainless steel.
The machine body can be 304#stainless steel or carbon steel.
Q3:Can this machine make different bag sizes?
A: One former can make one bag width, and the bag length can be adjustable within a range.
It should be ordered an extra former if you want to make the other bag width.
Q4:Does your company accept OEM?
A: Yes, we have a professional design and technical team to accept customization.
Q5:When you can deliver the machine after the order is placed?
A: We usually can arrange shipment after 30-40 working days,
but it depends on the quantity of the products.
Q6:How about your warranty?
A: We provide one year warranty and lifelong maintenance.
Q7:What can you provide after service?
A: We can provide machine testing video and pictures before delivery,
English manual, some free spare parts, installation in clients' factory and technical training.
Automatic small packet pill sugar packing machine
