Specifications
1.UP and DOWN STROKE2 WIDTH:1500--6000
3 Siemens PLC CONTROL AND TOUCHABLE PANEL
4 Stroke 30-60 mm
Qingdao Textile Machinery Co., Ltd was founded in 1920
Largest nonwoven and weaving machinery manufacturer in China
First one to pass CE and ISO9001 in Chinese textile machinery industry
5 modern factories in China, covers 800040 m2 with 400000 m2 of building area
Machine Details:

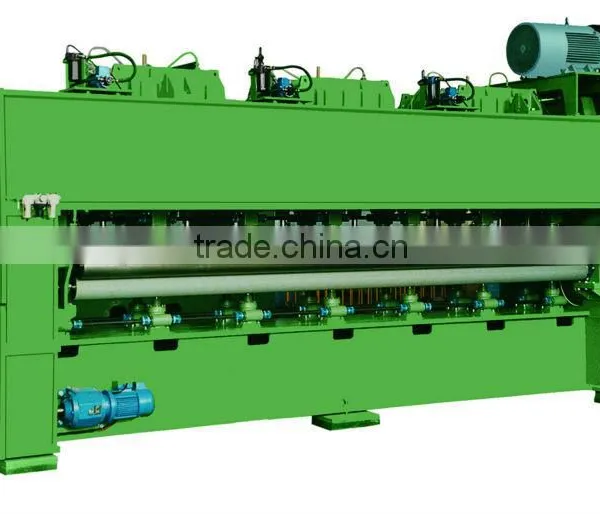

Tandem needle loom
Working width: |
1500mm-6000mm |
Maximum frequency of punching: |
1400/min |
Punching stroke |
30-60 mm |
Needle density: |
7500/m |
Installed power |
23.46kw,42.2kw |
Board arrangement |
Double boards |
Compressed air quantity needed |
0.3m3/h |
Product use
The machine is mainly used to punch the non-woven fabrics.
Main structural features
a. Crankcase is driven by double shafts, it runs stably, has low fluttering.
b. There is aerodynamic brake structure in crankcase, ensuring needle board stop in the upper limit position, so that the board is easy to disassemble and assemble.
c. Output roller and input roller are driven by frequency motor, which speed can be automatically regulated according to technics needs. Crankcase motor is frequency motor, and frequency punching can be automatic regulated.
d. Cool lubricate, there is separate lubricate system in the machine.
e. One set of spare boards are equipped with the machine.

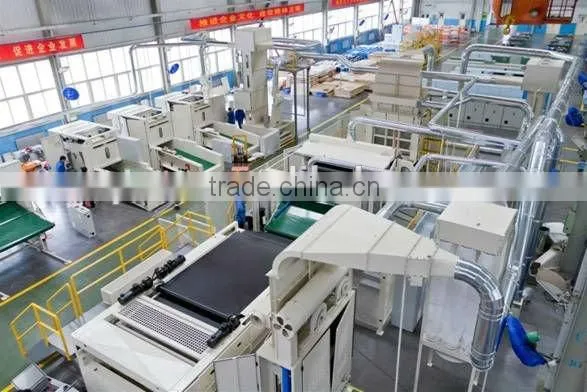

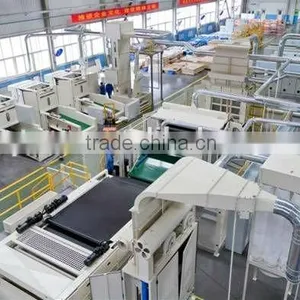

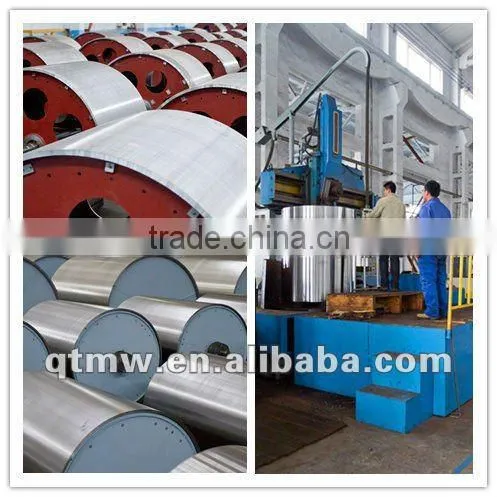

Workshop
Some of our customers
- 90 years professional textile machinery manufacture experience, excellent service team
- sufficient spare parts with secured partner: Siemenz, Siegling, Danfoss, NSK, ABB, AB, Bekaert.Habsit
- One-for-one demonstration of model machine, fully understand your requirements
- Considerate installation and adjustment service, train your operator skillfully and professionally
- Regular return visit, technical support and sincere service
- 7x24 hours service line for your consult at any time
- overseas: 0086-532-84963363/84892458
- Please tell us your service requirement without hesitance when you need any support
- Free replacement of spare parts during 12 months of guarantee period
