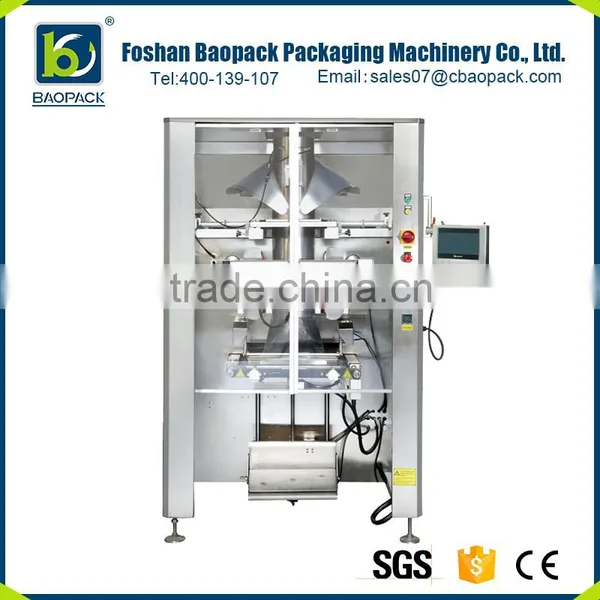

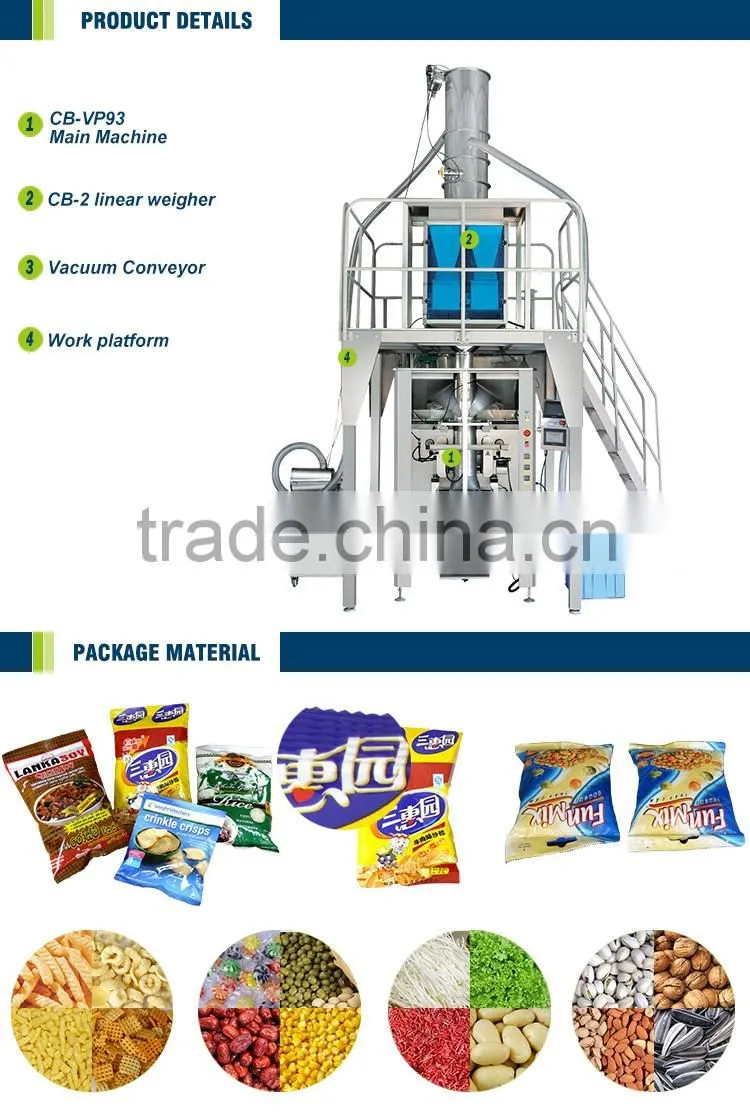

Cheap price tea bag packing machine
Please watch video about principle of operation as following link https://youtu.be/KtDbSC1yYSk
1:The electrical box is hided after the film going bracket. In this case, the machine looks more thin and simple than before. But on the other side, it is becoming longer than the normal.
The electrical box is waterproof.
2:The film going shaft is full-covered now. And the design of it is different than before. At the beginning and the end of the shaft, they are all with brush to clean the film.
3:Film pulling structure is adopted independent controlling system, each side with one servo. Compares to before, we use single servo to control both sides of film pulling.
4:Horizontal sealing structure is more simple than before.
5:All the moving parts, such as the horizontal sealing structure. The slide bearing on it are all used the plastic bearing from Igus to make sure the using life of it longer and more clean, less noise.
6:The design of gusseted device is more synchronous than before.

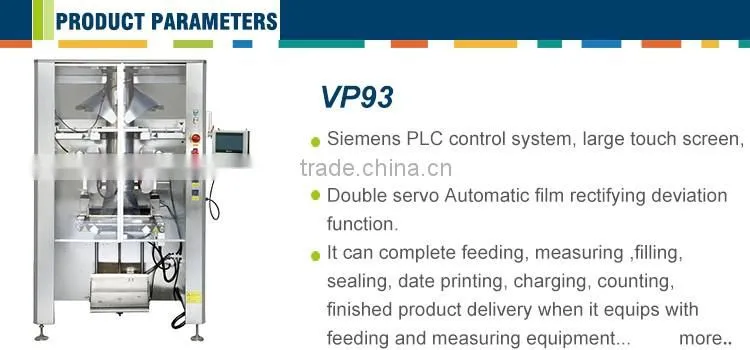

| Product name | Cheap price tea bag packing machine |
| Item | CB-VP93 |
| Range of measuring | ≤ 29 L |
| Weight | 740 kg |
| Range of film roll | 560-930mm |
| Film thickenss | 0.04-0.09mm |
| Air consumption | 0.8 Mpa 0.7 cmb/min |
| Power | 4 KW/220V 50-60Hz |
| Dimension | L2000*W1400*H2000mm |
| Bag size | (L)380-650mm (W)270-450mm |
| Bag type | Pillow-type bag ( optional :gusseted bag ) |
| Packing speed |
Max 50 bags/min ( for empty bag making) In the project, the working speed is around 15 bpm. |
Feature

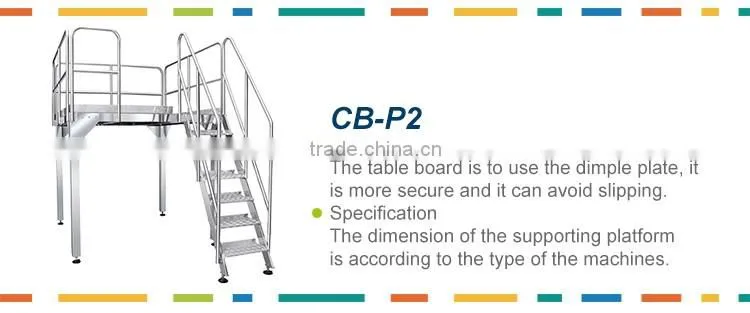

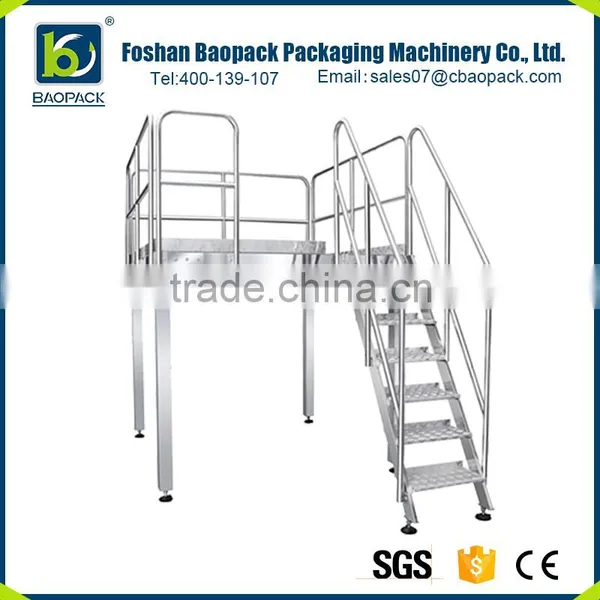

The supporting platform is solid will not affect the measurement accuracy of the combination weigher.
In addition, the table board is to use the dimple plate, it is more secure, and it can avoid slipping.
Specification
The size of the supporting platform is according to the type of the machines.
Pre-sales Services:
BAOPACK have the best salesmen to provide the most professional services.
Standing in the perspective of the customer to solve your queries.
Medium-sales Services:
BAOPACK have the trained team to follow your orders methodically to guarantee
the products can be finished on time with high quality.
After-sales Services:
BAOPACK have the technician team with many years of technical experience to
provide you the most professional after-sales services.
Q1: Can you send me the video of this machine in operating mode?
A: Yes, please check the link for this video https://youtu.be/KtDbSC1yYSk
Q2: What is the material of contact food/material parts?
A: The contact food/material parts are made of 304# stainless steel. The machine body can be 304# stainless steel or carbon steel.
Q3: Can this machine make different bag sizes?
A: One former can make one bag width, and the bag length can be adjustable within a range. It should be ordered an extra former if you want to make the other bag width.
Q4: Does your company accept OEM?
A: Yes, we have a professional design and technical team to accept customization.
Q5: When you can deliver the machine after the order is placed?
A: We usually can arrange shipment after 30-40 working days, but it depends on the quantity of the products.
Q6: How about your warranty?
A: We provide one year warranty and lifelong maintenance.
Q7: What can you provide after service?
A: We can provide machine testing video and pictures before delivery, English manual, some free spare parts, installation in clients' factory and technical training.
