IW-83288 Pipe Inspection Camera With 8 Inch Monitor

IW-83288 Pipe Inspection Camera With 8 Inch Monitor thumbnail-1
IW-83288 Pipe Inspection Camera With 8 Inch Monitor thumbnail-2
IW-83288 Pipe Inspection Camera With 8 Inch Monitor thumbnail-3
IW-83288 Pipe Inspection Camera With 8 Inch Monitor thumbnail-4
IW-83288 Pipe Inspection Camera With 8 Inch Monitor thumbnail-5
IW-83288 Pipe Inspection Camera With 8 Inch Monitor thumbnail-6
IW-83288 Pipe Inspection Camera With 8 Inch Monitor photo-1
IW-83288 Pipe Inspection Camera With 8 Inch Monitor photo-2
IW-83288 Pipe Inspection Camera With 8 Inch Monitor photo-3
IW-83288 Pipe Inspection Camera With 8 Inch Monitor photo-4
IW-83288 Pipe Inspection Camera With 8 Inch Monitor photo-5
IW-83288 Pipe Inspection Camera With 8 Inch Monitor photo-6
US$ 1,800 - 2,200 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
i-watch
Model Number:
IW-83288
Contact Supplier Request Quote Chat Now
Miseng International Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Kaohsiung
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name i-watch
Model Number IW-83288


IW-83288 Pipe Inspection Camera with 8 inch monitor

IW-83288 Pipe Inspection Camera with 8 inch monitorIW-83288 Pipe Inspection Camera with 8 inch monitor
Product Description

 Specifications

sewer Pipe Inspection Camera
8 inch LCD monitor
CE, FCC, RoHS certification
stainless steel handle cable reel
USB keyboard

Video Pipe Inspection Camera Features



   Model

 IW-83288



  Features



    1. 1/3" Color CCD 600 TV lines ;
    2. Φ9mm x 120m Fibreglass push rod cable with meter counter;
    3. 8 inch full color LCD monitor;
    4. DVR control box ( audio / video / photo / microphone function);
    5. Sapphire glass lens for clear images;
    6. Built-in rechargeable Li-ion battery;
    7. Waterproof IP68;



 Video Pipe Inspection Camera Technical Specifications



  Camera Head



    * Camera size  Φ 50mm X 88mm for pipe Φ 55mm to 600mm;
    *  600 TV Lines CCD camera;
    *  Stainless steel case;
    *  Sapphire glass lens;
    *  Sensor size 1/3 inch;
    *  Viewing angle 90°;
    *  18 pcs white LEDs ;

    *  Total Pixels PAL 720X576 NTSC 720X 480



  Monitor



   * 8 inch HD LCD monitor ;
    * 4:3 display model;
    * Power supply DC12V
    * Brightness 400 cd/m2 ;



  DVR Control Box



    * 12V DVR work current 200mA;
    *  Storage medium SD card (max 64G);
    *  LED brightness adjustment;
    *  Audio / video / photo function;
    *  On/off microphone control button;



  Cable Reel



    * 60m Φ7mm fiberglass push rod cable (60m optional) with meter counter;
    *  Reel size L51 x W25 x H64 cm;



  Battery Pack & Charger



    * 6600mA Li-ion Battery pack power supply;
    *  AC110-240V 1.5A charger;
    *  Charging time 5 hours;
    *  Working time 6 hours;





  Keyboard



    * Removable waterproof keyboard;
    *  2m lead wire;
    *  USB plug for DVR control box;



  Carrying Case



   * ABS engineering case: 520 x 435 x 200mm;
    * Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum;
    * Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum;



 Our Advantages



1)     8 years experience in manufacturing and exporting,service will be more professional

2)     24-hour hotline,service more quick;

3)     Large-scale production line, more rapidly delivery

4)     Advance equipment , the quality are perfect

5)     Professional foreign trade operations, services are more circumspect



Application

* General Industrial Application: Pipe inspection, drain inspection, sewer inspection,chimney inspection,wall pipe inspection and other industrial pipe;
*   Special Industrial Application: Air industrial, nuclear-power industrial, oil exploration industrial application etc.;



Warranty



* One year warranty, whole life service;
* Any problem, freely return within one week;



Video Pipe Inspection Camera Photos

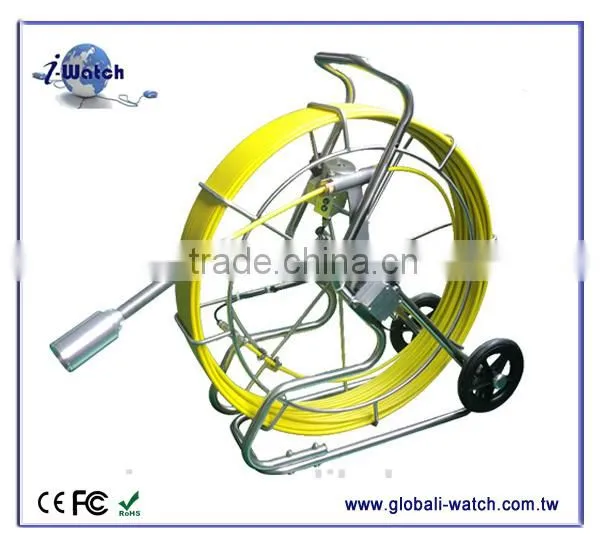

Stainless steel handle cable wheel with meter counter

IW-83288 Pipe Inspection Camera with 8 inch monitor

DVR Control Box

IW-83288 Pipe Inspection Camera with 8 inch monitor

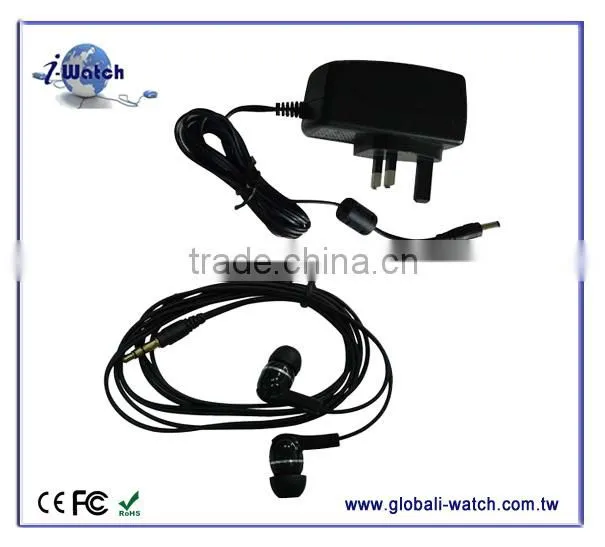

Power charger & Earphone

IW-83288 Pipe Inspection Camera with 8 inch monitor

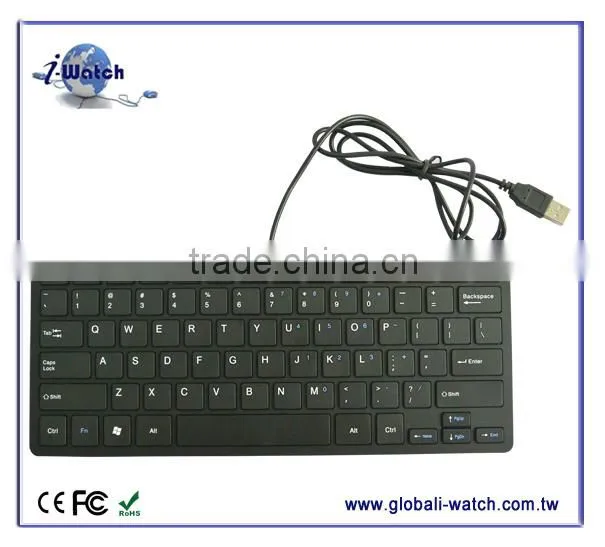

Keyboard

IW-83288 Pipe Inspection Camera with 8 inch monitorIW-83288 Pipe Inspection Camera with 8 inch monitor

Packaging & Shipping

IW-83288 Pipe Inspection Camera with 8 inch monitor

Company Information

IW-83288 Pipe Inspection Camera with 8 inch monitor

IW-83288 Pipe Inspection Camera with 8 inch monitor


IW-83288 Pipe Inspection Camera with 8 inch monitor

IW-83288 Pipe Inspection Camera with 8 inch monitorIW-83288 Pipe Inspection Camera with 8 inch monitor

Certifications

IW-83288 Pipe Inspection Camera with 8 inch monitor
