Jewellery Automatic Chain Making Machines With Plasma

Specifications

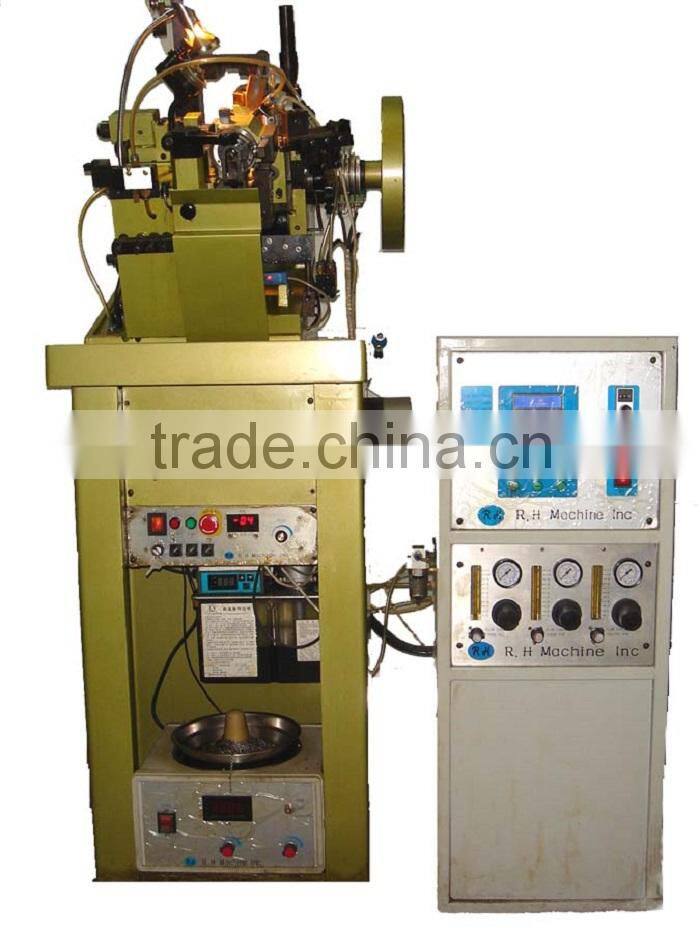

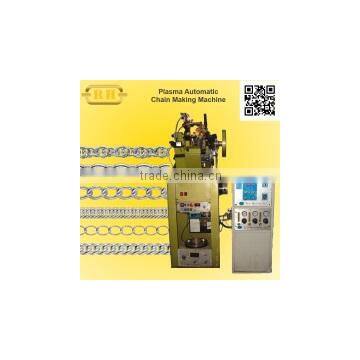

Jewellery Automatic chain making machine with plasma
Automatic plasma welding machine for the production of single, double and triple curb, rhombus chain and single, double and triple cable chain, suitable for different materials including AG, AU24KT and PT. Its cams are movable having various positions for different chain settings for 7 basic chain designs, from Cable, Curb to Corda Chain, with the help from our Chain Hammering Machine (FSCL-B) and Chain Compacting Machine (FSTM-B),  the 7 basic chain designs can transform more than 40 different varieties.

1) Dimension                      : 450mm L x 760mm W x 1050mm H
2) Weight                            : 120 KG
3) Speed                            : 80-180 links per minute.
4) Wire Dimension              : 0.19MM-0.80MM
5) Lubrication System         : Automatic force feeding lubrication type
6) Sensor Control               : CFD checking for absence of chain fall, density and completion
7) Power                             : 220V Single Phase 50HZ
8) Gas Feeding (Argon)     : 5 Bar
9) Excellent for                   : Gold, silver, ferrous, non-ferrous wires and hard alloys
