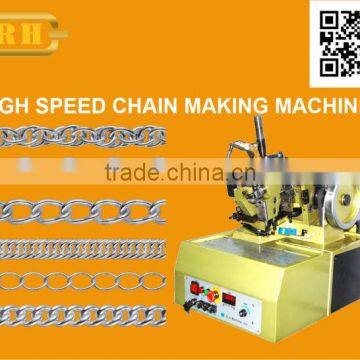

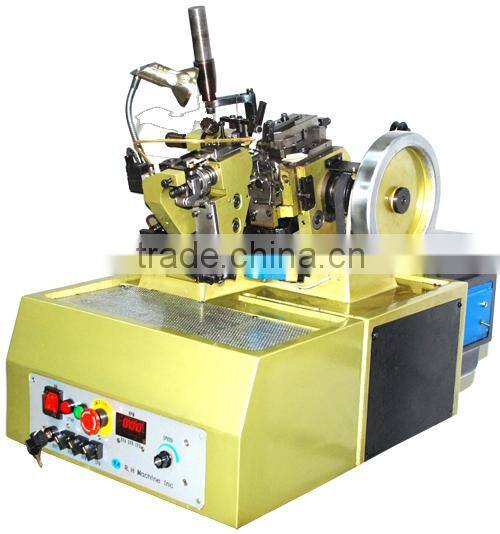

Gold High Speed Chain Making Machine

Specifications

High Speed Chain Making Machine

Our high speed chain making machine can weave up to 7 basic chain designs, from Cable, Curb to Corda Chain, with the help from our Chain Hammering Machine (FSCL-B) and Chain Compacting Machine (FSTM-B),  the 7 basic chain designs can transform more than 40 different varieties.

1)    Dimension                             : 500mm L x 800mm W x 580 H
2)    Weight                                   : 70kg
3)    Working Wire Dimensions     : 0.19mm – 0.60mm
4)    Speed Range                        : 80-450 links per minute
5)    Power                                    : 220V Single Phase 50Hz
6)    Sensor Control                      : CFD checking for absence of chain fall, density and completion
7)    Lubrication System                : Automatic force feeding lubrication type
8)    Excellent for                           : Gold, silver, ferrous and non-ferrous wires
