Help CenterDIN Standard F4 Gate Valve
Related Products
-
Resilient Seated Water Gate ValveUS$ 10 - 10MOQ: 1 Set -
Non Rising Stem Resilient Seated Cast Iron Gate ValveUS$ 10 - 10MOQ: 1 Set
-
F4 Resilient Seated Gate Valve-Cast Iron Gate ValvesUS$ 10 - 10MOQ: 1 Set
-
DIN3352 F4 Resilient Seated Gate ValveUS$ 10 - 10MOQ: 1 Set
-
GGG40 Gate ValveUS$ 10 - 10MOQ: 1 Set
Non-rising Gate Valve
Size: DN50~DN600
Pressure: PN1.0/1.6MPa
End flange: EN 1092
F/F: EN 558-1
Product Advantages:
1) On-line replacement of top seal: Easy installation and maintenance
2) Integral rubber-clad disc: The ductile iron framework is thermal-clad integrally with high-performance rubber, ensuring tight seal and rust prevention
3) Integrated brass nut: By menas of special casting process, the brass stem nut is integrated with the disc with secure connection, thus the product is safe and reliable.
4) Flat-bottom seat: The sealing surface of the body is flat without hollow, avoiding any dirt deposit.
5) Wholly-through flow channel: The whole flow channel is through, giving "zero" pressure loss.
6) Dependable top sealing: With multi-oring structure adopeted, the sealing is dependable.
7) Epoxy resin coating: The cast is sprayed with epoxy resin coat both inside and outside, and the disc is wholly clad with rubber in accordance with food hygiene requirement, so it is safe and resistant to corrosion.

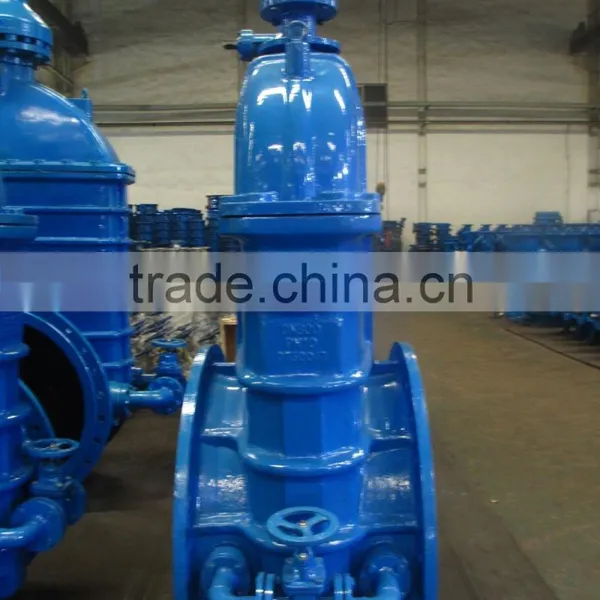

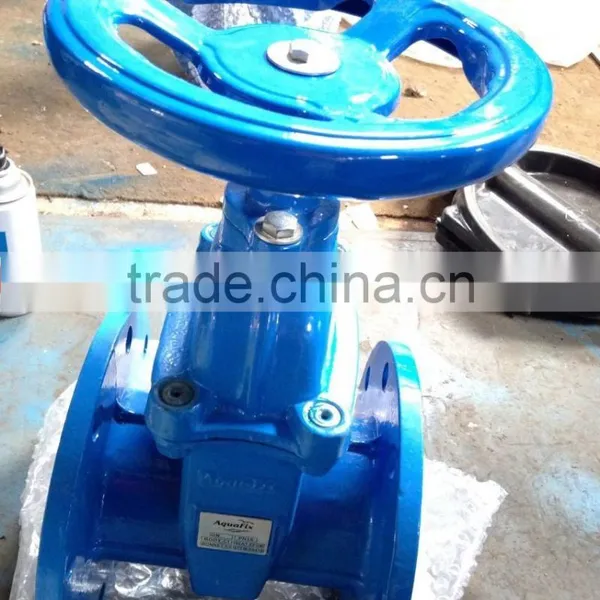

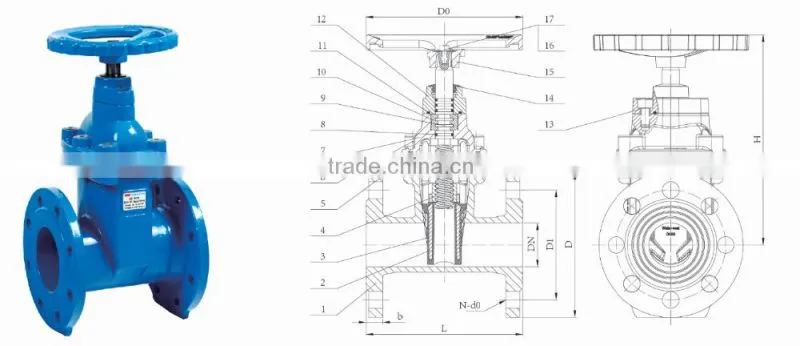

Image of the gate valve:

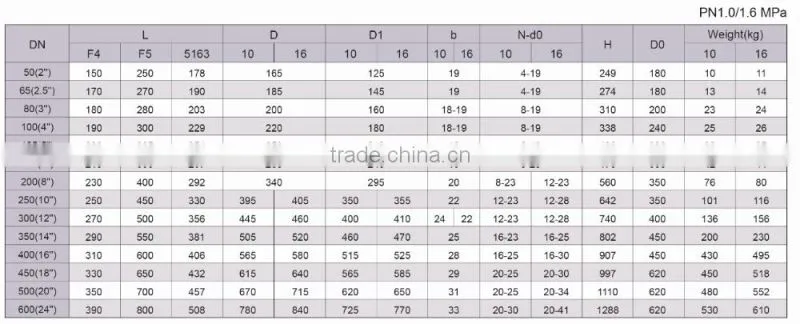

Main technical data:

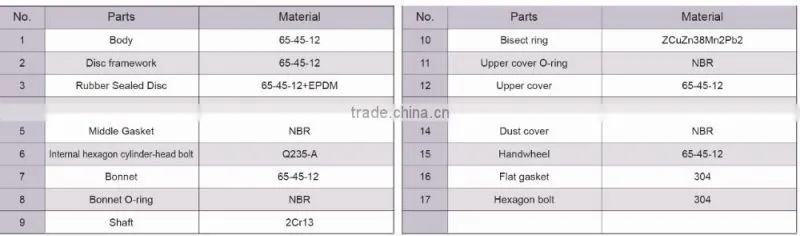

Materials of Main Parts:

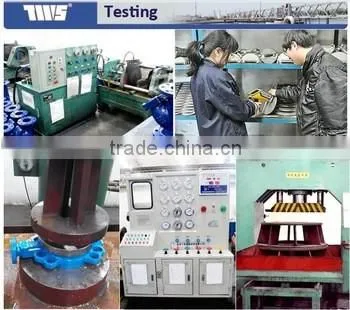

Testing:
