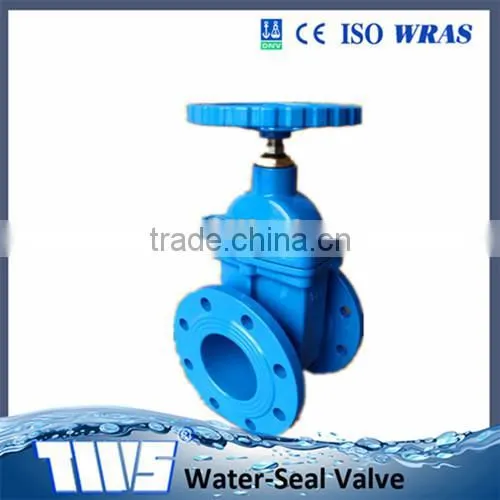

Help CenterDN 65-DN300 PN16 Resilient Seated Gate Valve(Worm Gear Actuator )
Related Products
Characterist of Products
On-line replacement of top seal:esay installation and maintenance.
Integral rubber-clad disc:The ductile Iron framework is thermal -clad intergrally with high-performance rubber, ensuring tight seal and rust prevention.
Integrated brass nut: By means of special casting process, the brass stem nut is integrated with the disc with secure conection, thus the products is safe and reliable.
Flat-bottom seat: The sealing suface of the body is flat without hollw, avoiding any dirt deposit.
Wholly-throgh flow channel: The whole flow channel is through, giving ZERO pressure loss.
Resilient Seat/Soft Sealing Gate valve
Resilient Seat/Soft Sealing Gate valve Material:
| NO. | Name | Materail |
| 1 | Gate Valve Body | HT200 ASTM A216 CL.B |
| 2 | Gate Valve Disc | HT200 ASTM A216 CL.B |
| 3 | Gate Valve Stem | Q235 Cr.33 |
| 4 | Gate Valve Seal | ZQAI9-4 |
| 5 | Gate Valve Nuts | HT200 ASTM A216 CL.B |
| 6 | Gate Valve Head | HT200 ASTM A216 CL.B |
Resilient Seat/Soft Sealing Gate valve
Before the packing and shipment,all the valves be tested by our instrument by our techinical department, this ensures the valves can be used well. Our valves factory have advanceand testing instrument to satisfy no matter the product or the customers' requirements .
Tianjin Tanggu Water-Seal Valve Co., Ltd. is an industrialized, joint-stock company, whose original name was Tianjin Tanggu Valve Plant. Our main products include center line butterfly valves, flanged butterfly valves, metal butterfly valves, check valves, gate valves, waterpower control-valves, micro-resistance slow close check valves, multi-function pump control valves and related series products.
Our company theory of "all for customers and all from innovation",Welcome your come and inquiry.
We offer you directly the valves with the better quality& price, including butterfly valves, check valves,gate valves, ball valves, strainers and other valves.
We offer you the products' technical supports ensure that the valves that can be used well both for you and your clients.
If quantiy is large enough, we can do the Customized production.
1. What about your company? Wether your company are valves manufactures?
We are the valve manufactures, we have our own factory producing butterfly valve, check valve, gate valve,and other kinds of valves.
2.What to do if I want to order ?
In order to ensure your requirement for usage, please explain in details in your order:type, specification, material, nominal pressure, working pressure, and temperature used, maximum flow rate, pressure difference, medium composition of valve, drving type of valve and standard for connection of valve with pipes etc.
3. How about the payment term?
We normally accept the 30% TT Payment in advance, and the balance payment before shipping.
