Home > Industrial Equipment & Components > Valve > Ball Valve > DN50,85,105,150 PN16 Cast Iron Handle Lever Wafer Butterfly Valves

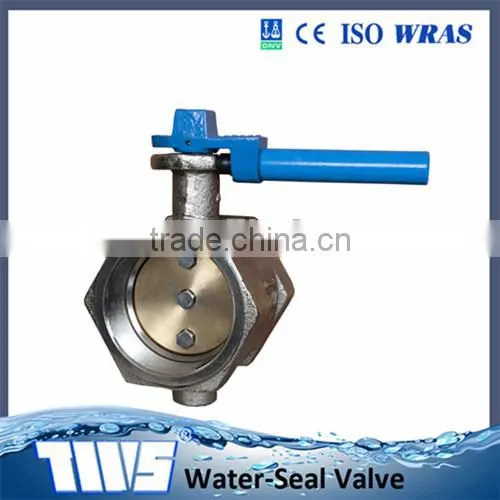

DN50,85,105,150 PN16 Cast Iron Handle Lever Wafer Butterfly Valves

DN50,85,105,150 PN16 Cast Iron Handle Lever Wafer Butterfly Valves thumbnail-1
DN50,85,105,150 PN16 Cast Iron Handle Lever Wafer Butterfly Valves photo-1
US$ 7.25 - 1,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Butterfly
Pressure:
High Pressure
Contact Supplier Request Quote Chat Now
Tianjin Tanggu Water-Seal Valve Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Butterfly
Pressure High Pressure
Power Other, Handle Lever
Material Casting
Temperature of Media Other, -45 ~150
Media Other, Water,Sewage, Air ,Vapour, Food,Medicial, Oils, Acids, Alkalis, Salts,
Port Size DN50 DN8 DN85 DN150
Place of Origin Tianjin, China
Model Number Butterfly Valve
Brand Name TWS
Application General
Product Description

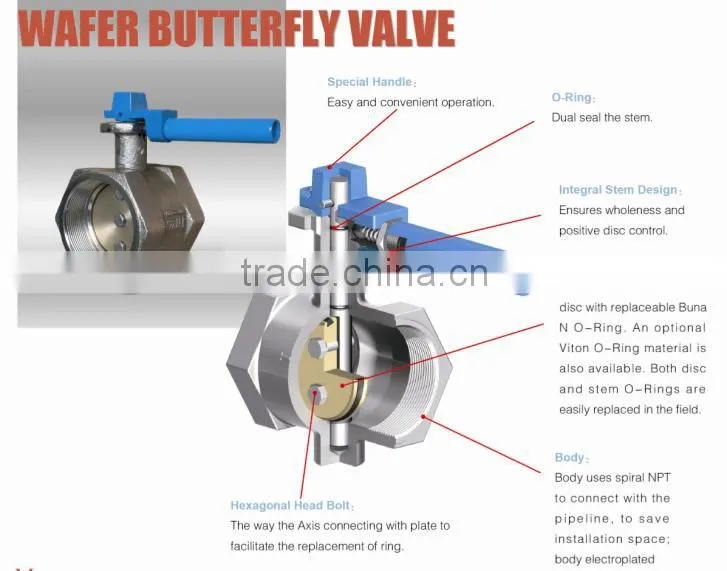

Butterfly valve is mainly consisted of body, stem, disc, seat and driver(lever, gearbox, pneumatic and electric Actuator) and so on. On off and controlling flow of valve are made by turning stem and disc together.



Valves Name: Cast Iron  Handle Lever Wafer Butterfly Valves



Butterfly Valves Size: DN40-DN600



Butterfly Valves Body: Cast Iron, (Other:Duticle Iron WCB, CF8, CF8M ,ALB )



Butterfly Valves Seat:  NR (0ther:Hypalon, EPDM, NBR, Neoprene, Viton,  EPDM(NSF) and so on )



Butterfly Valves Disc: Cast Iron(Other:Duticle Iron WCB, CF8, CF8M ,ALB,Rubber lined DIsc, Duplex Stainless steel (1.4469/2507))



Butterfly Valves Actuator: Handle Lever (other: Bare Shaft,Worm Gear, Pneumatic, Electric Actuator )



Butterfly Valves  Pressure:1.0Mpa&1.6Mpa(150Psi,200 Psi)



Butterfly Valves  Product  standard:ANSIB16.1,EN1092,AS2129.

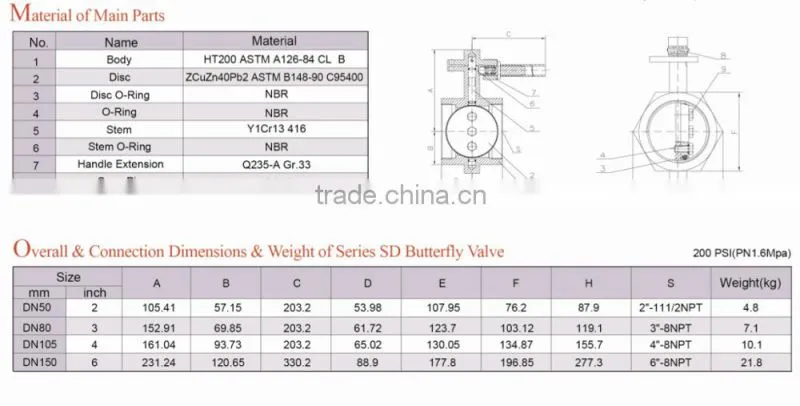

Cast Iron Handle Lever Wafer Butterfly Valves breif introduction (SD Series )



DN50,85,105,150 PN16 Cast Iron Handle Lever Wafer Butterfly Valves



Product Testing

 Before the packing and shipment,all the valves be tested by our instrument by our techinical department, this ensures the valves can be used well. Our valves factory have advanceand testing instrument to satisfy no matter the product or the customers' requirements .

DN50,85,105,150 PN16 Cast Iron Handle Lever Wafer Butterfly Valves



Packaging & Shipping

 DN50,85,105,150 PN16 Cast Iron Handle Lever Wafer Butterfly Valves

DN50,85,105,150 PN16 Cast Iron Handle Lever Wafer Butterfly Valves

Company Information

 DN50,85,105,150 PN16 Cast Iron Handle Lever Wafer Butterfly Valves



      Tianjin Tanggu Water-Seal Valve Co., Ltd. is an industrialized, joint-stock company, whose original name was Tianjin Tanggu Valve Plant. Reformed in 2004, our company has registered capital of RMB28,090,000. We are a class-two national enterprise. Our main products include center line butterfly valves, flanged butterfly valves, metal butterfly valves, check valves, gate valves, waterpower control-valves, micro-resistance slow close check valves, multi-function pump control valves and related series products.



        Tianjin Tanggu Water-Seal Valve Co., Ltd. has been the special base which manufactures and exports center line butterfly valves, flanged butterfly valves and check valves. We have passed ISO9001 international quality system certification (2000 edition). Our company reaches a high level on design and development, manufacture and testing.



      Our company theory of "all for customers and all from innovation",Welcome your come and inquiry.



Our Services

We offer you directly the good quality and better price of  valves including butterfly valves, check valves,gate valves, ball valves, and other valves.





We  offer you the products technical supports to ensure that the valves that can be used for you and your customers.



If quantiy is enough, we can do the Customized production.

FAQ



1. What about your company? Wether your company are  valves manufactures?



        We are the valve manufactures, we have our own factory producing butterfly valve, check valve, gate valve,and other kinds of valves.



2.What to do if I want to order ?



     In order to ensure your requirement for usage, please explain in details in your order:type, specification, material, nominal pressure, working pressure, and temperature used, maximum flow rate, pressure difference, medium composition of valve, drving type of valve and standard for connection of valve with pipes etc.





3. How about the payment term?



    We normally accept the 30% TT Payment in advance, and the balance payment before shipping.
