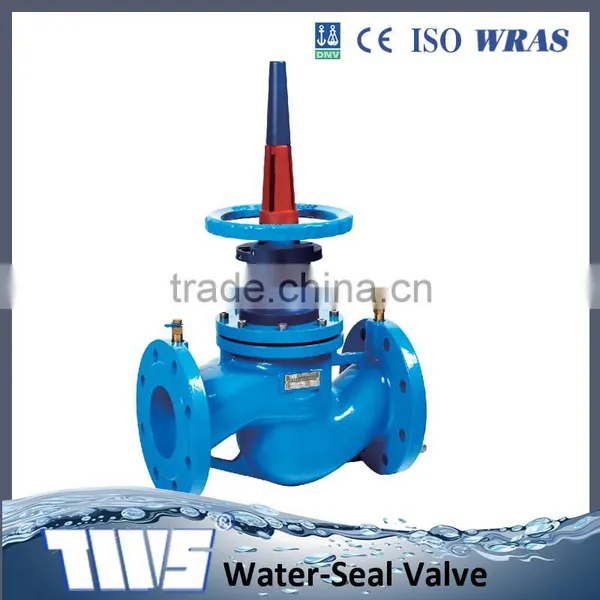

New Design Factory Supplier Balance Covers Balance Valve With Prices

New Design Factory Supplier Balance Covers Balance Valve With Prices thumbnail-1
New Design Factory Supplier Balance Covers Balance Valve With Prices photo-1
US$ 40 - 929 MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Regulating
Pressure:
Medium Pressure
Contact Supplier Request Quote Chat Now
Tianjin Tanggu Water-Seal Valve Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Regulating
Pressure Medium Pressure
Power Manual
Material Other, CI, DI, WCB, EPDM
Temperature of Media Normal Temperature
Media Other, Water, Water
Port Size Standard
Place of Origin Tianjin, China
Model Number KPF
Brand Name TWS
Application Other, Precise flow regulating, HVAC water system



                   New Design Factory Supplier balance Valve With Prices



Product Description

New Design Factory Supplier balance Gate Valve With Prices

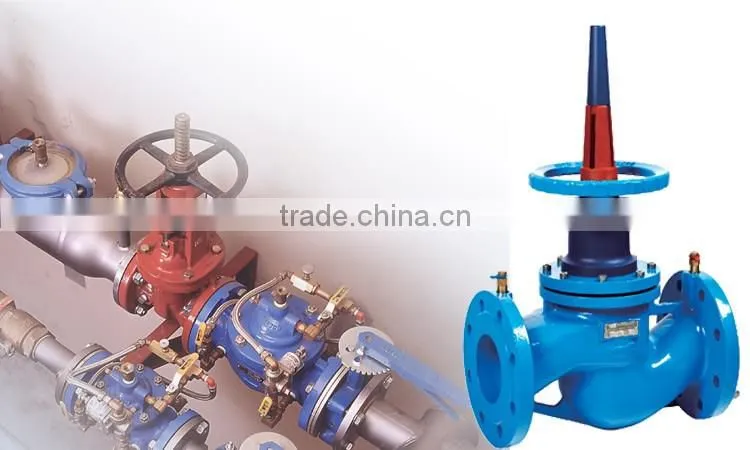

Static balancing valve series flanged static balancing valve is a key hydraulic balance product used for precise flow regulating of water pipelines system in HVAC application to ensure static hydraulic balance across whole water system. The series can ensure the actual flow of each terminal equipment and pipeline in line with the design flow in the phase of system initial commisiioning by site commissiong with flow measuring computer. The series are widely used in main pipes, branch pipes and terminal equipment pipelines in HVAC water system. It also can be use in other application with the same function requirement.



New Design Factory Supplier Balance Covers balance Valve With Prices



Material of Main parts



Description Material
Body, Bonnet, Handwheel CI, DI, WCB

Stem

 SS416/304
Disc WCB
Seating face  EPDM
Test Cocks Brass
Stroke display ABS Plastic





Specification

Norminal Pressure  PN Testing Pressure (MPa) Suitable Media Working Temperature     ℃
Shell Sealing
1.6 2.4 1.76 Water -10-120



Overall & Connection Dimensions & Weights



New Design Factory Supplier Balance Covers balance Valve With Prices

DN L H D K n*d Weight(kg)
65 290 364 185 145 4*19 19.5
80 310 394 200 160 8*19 24.3
100 350 472 220 180 8*19 34.5
120 400 510 250 210 8*19 54.3
150 480 546 285 240 8*23 70.7
200 600 676 340 295 12*23 146
250 730 830 405 355 12*28 265
300 850 930 460 410 12*28 360
350 980 934 520 470 16*28 535



Certifications

               Famous Brand in China. CE ISO WARS

New Design Factory Supplier Balance Covers balance Valve With Prices         TCS                        WARS                   DNV                       CE             ISO etc.





Packaging & Shipping

1.One piece wafer butterfly valve in one poly bag;
2.Some pieces butterfly valves in one wooden carton;
3.Then container.



Ways of shipping: by air, by sea, by express.

 New Design Factory Supplier Balance Covers balance Valve With Prices

Company Information

We are a manufacturer specialised in valves producing since 1997, which located in Tianjin, next to Xingang port, Tianjin, China. The main products include centerlined butterfly valve, flanged butterfly valve, mental butterfly valve, check valve, ball valve, gate valve etc. They are widely used in water supply and drainage, electric power, petrol chemical industry etc.

New Design Factory Supplier Balance Covers balance Valve With Prices

Application

* Water works and water resource projects     *Enviroment protection     * Public Facilities       * Power and public Utilities

*Building industry      *Petroleum/chemical        * Steel,Metallurgy          *Paper making industry    * Food, Beverage

New Design Factory Supplier Balance Covers balance Valve With Prices

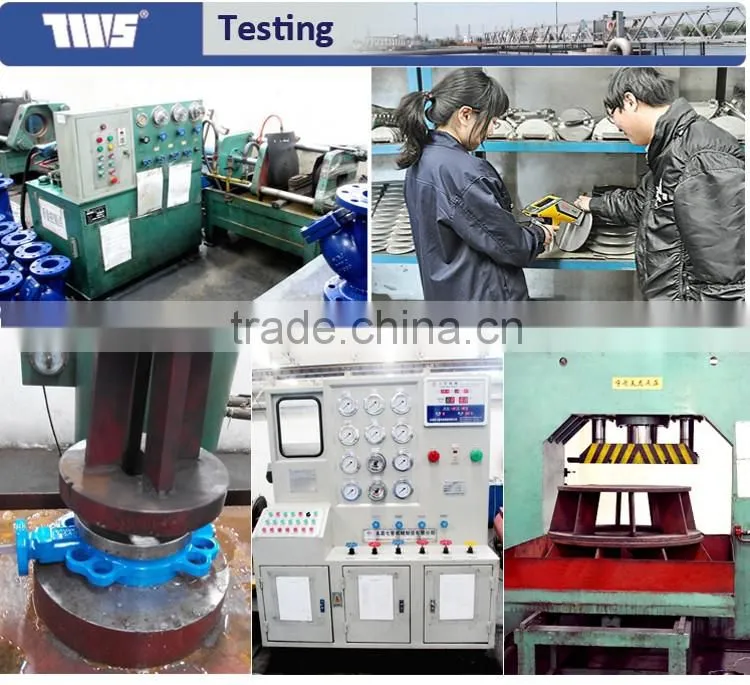

Testing

1. Before produced, every material will be confirmed and checked strictly by our QC.

2. Every products has to be test before packing

3. Before delievery, the products can be test by our QC or the thrid-party detection instituation ordered by our client.

New Design Factory Supplier Balance Covers balance Valve With Prices
