Home > Instruments & Meters > Meter for Liquid & Gas > Thermometer & Hygrometer > RTD Temperature Transmitter

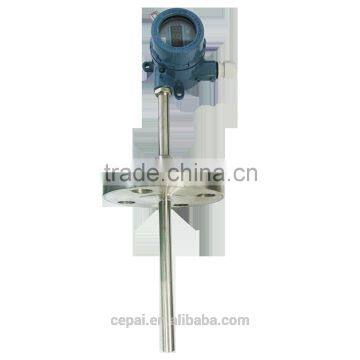

RTD Temperature Transmitter

Name: RTD Temperature Transmitter
Brand: CEPAI
SKU: 132693913
Availability: InStock

US$ 125 - 319 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

CEPAI

Model Number:

SBWZ

Contact Supplier Request Quote Chat Now

Cepai Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai jiangsu

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name CEPAI

Model Number SBWZ

Usage Industrial

Theory Temperature Transmitter

Accuracy 1.5%

Temperature Range -200~500℃

Product Description

Integrated small module, wide university;

Two-wire system 4~20mADC output, far transmission distance, strong interference-resistance performance;

Cold end, temperature drift, non-linearity self-compensation;

High accuracy with long-term stability;

Temperature module is pouring with epoxy resin inside, applicable to various harsh and dangerous occasions;

Integrated simple structure, can replace thermocouples and thermal resistances;

When use thermocouple temperature transmitter, you can save compensation wire which reduces cost;

Liquid crystal display, nixie tube and needle are optional which are convenient in field to monitor on time;

When field environment temperature>70℃, transmitter and filed displayer can install separately;

Explosion-proof class: dIIBT4,dIIBT5

Protection class: IP54

Model

specifications

Temperature

General type

Thermal resistance

Thermocouple

Output and corresponding temperature in linearity

Output and corresponding input signal in linearity

Output

General type

Thermocouple

E NiCr-CuNi

K NiCr-NiSi

S PtRh10-Pt

B PtRh30-PtRh6

T Cu-CuNi

J Fe-CuNi

N NiCrSi-NiSi

Thermal resistance

Cu50

Pt100

Sensor

Isolation type with temperature element

Non-isolation type with temperature element

Circuit

Standard

Smart

Digital Display

Needle type

Smart display

Smart needle

With HART

Fixed thread

Fixed flange

Fixed thread taper tube

Female thread

Thermowell tube

Mounting

Explosion-proof

Junction box

PT100

Thermocouple

insulation(sheathed)

Shell(sheathed)

Tri-type

Sheathed

Explosion-proof

Intrinsic safe

Packaging & Shipping

Our Services

SBW temperature transmitter with industrial thermocouple and thermal resistance is a field-installed temperature transmitter unit of DDZ series instruments. It combines thermocouple or thermal resistance with transmitter together to measure temperature of medium (liquid, steam and gas) of which temperature is between -200℃ and 1600℃, and convert the temp into the signal of 4-20mA which will be displayed in recorder, display instrument or computer. As temperature - measuring instrument of new generation, it could be widely used in metallurgy, petroleum chemical, power station, light industry, textile, foodstuff, national defense, and scientific research field, etc.
