Brief Description
Armored thermocouple has many advantages, such as flexible, high pressure- resistant, fast thermal response time and durability and so on. it is can be used as a temperature sensor which is the same to the industrial fabricated thermocouple. It is usually used with display instrument, record instrument and electronic regulator, at the same time, also can be temperature components for the fabricated thermocouple. In the process of production it can directly measure all liquid, steam and gas and solids surface temperature from 0℃~800 ℃, should comply with GB/T18404-2001 standard.
Category |
Code |
Graduation |
Tube O.D |
Temperature |
Max |
difference t Allowed error |
|
Measure range |
Allowed error |
||||||
NiCr-CuNi |
WREK |
E |
≥φ3 |
600 |
700 |
0~700 |
±2.5°C or±0.0075|t| |
NiCr-NiSi |
WRNK |
K |
≥φ3 |
800 |
950 |
0~900 |
±2.5°C or±0.0075|t| |
Cu-CuNi |
WRCK |
T |
≥φ3 |
350 |
400 |
<-200 |
No data |
-40~350 |
±1°C or ±0.0075|t| |
||||||
Product's Technical Parameters
Sheathed thermocouple O.D |
φ8 |
φ6 |
φ5 |
φ(4) |
φ4 |
φ3 |
φ2 |
Code and size of fixed device | |||||||
D |
φ60 |
φ50 |
|||||
D0 |
φ42 |
φ36 |
|||||
D1 |
φ24 |
φ20 |
|||||
S |
22 |
19 |
|||||
d0 |
φ9 |
φ7 |
|||||
Model Explanation
W |
Temperature meter |
R |
Thermocouple |
thermocouple wire material |
R)platinum rhodium30-platinum rhodium6 |
P)platinum rhodium10-platinum | |
N)nickel chromium-nickel silicon | |
E)nickel chromium -copper nickel | |
K |
sheathed type |
install structure |
1) without fixed device |
2)fixed thread type | |
3)movable flange | |
4)fixed flange | |
5)movable flange type | |
| |
junction box (head) |
0)simple type |
2)splash proof type | |
3)waterproof type | |
7)hands type | |
8)small junction box type | |
9)with compensating lead wire | |
design series number |
0)ø16mm protecting tube |
1)ø25mm protecting tube(double tubes) | |
2)ø16mm high aluminum tube(single tube) | |
3)ø20mm high aluminum tube |
Name |
Model |
Graduation |
Working-end |
Simplex NiCr-CuNi |
WREK-101 WREK-121 WREK-131 WREK-181 WREK-187 WREK-191 |
E |
Insulation type |
|
WREK-102 WREK-122 WREK-132 WREK-182 WREK-188 WREK-192 |
Connected with shell |
||
Duplex NiCr-CuNi |
WREK2-121 WREK2-131 |
Insulation type |
|
|
WREK2-122 WREK2-132 |
Connected with shell |
||

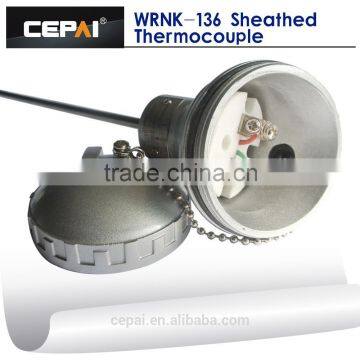

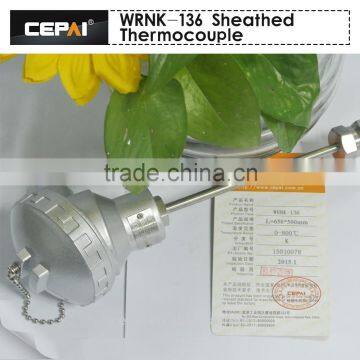

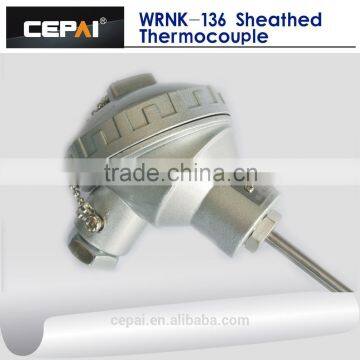

Simplex NiCr-NiSi |
WRNK-101 WRNK-121 WRNK-131 WRNK-181 WRNK-187 WRNK-191 |
Insulation type |
|
|
WRNK-102 WRNK-122 WRNK-132 WRNK-182 WRNK-188 WRNK-192 |
Connected with shell |
||
Duplex NiCr NiSi |
WRNK2-121 WRNK2-131 |
Insulation type
|
|
|
WRNK2-122 WRNK2-132 |
Connected with shell |
||
Simplex Cu-CuNi |
WRCK-101 WRCK-121 WRCK-131 WRCK-181 WRCK-187 WRCK-191 |
Insulation type |
|
|
WRCK-102 WRCK-122 WRCK-132 WRCK-182 WRCK-188 WRCK-192 |
Connected with shell |
||
Duplex Cu-CuNi |
WRCK2-121 WRCK2-131 |
Insulation type |
|
|
WRCK2-122 WRCK2-132 |
Connected with shell |
