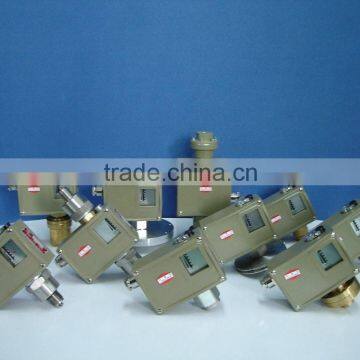

D500/7D Explosion-proof Pressure Controller

Brief Description

D500/7D explosion-proof pressure controller has diaphragm type sensor, can be used in neutral gas and water, hydraulic oil, lubricating oil, light fuel oil etc. Controller setting value is adjustable, range is 0~2.5MPa.

Technical Parameters

Working viscosity: <1Χ10-3m2/s

Switch: micro switch

Housing protection: IP65 (DIN40050, same as IP65 in GB4208)

Environment temperature: -5~40℃

Medium temperature: 0~90℃

Vibration-resistant: D500/7D:40m/s2  D500/7DK:20m/s2

Repeatability error: ≤1.5%

Contact capacity: AC 380V 6A(resistance)DC 24   0.25A

Explosion-proof: Ex ed II CT4~CT6

Specifications

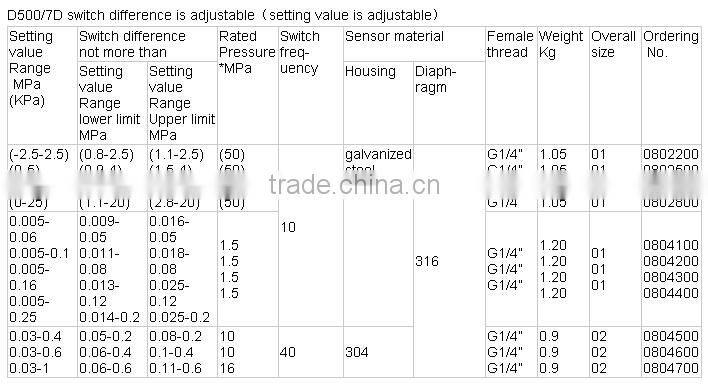

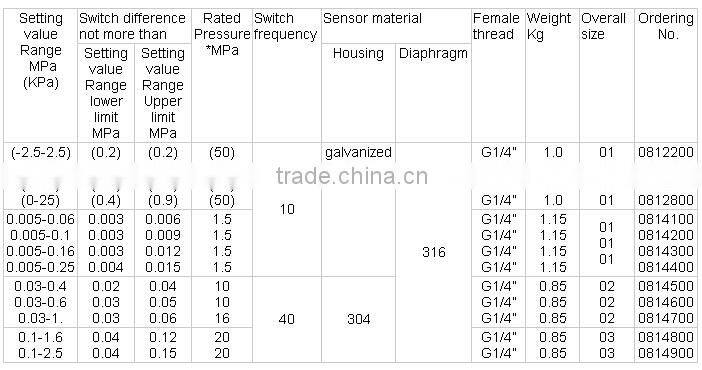

D500/7D switch difference is not adjustable(setting value is adjustable)
