Help CenterSuper Quality Classical 125kh Rfid Reader Moudle
Related Products
Specifications
Size: 32*21*4.5mmVotage: 5V, current: 50mA
Super quality classical 125kh rfid reader moudle :

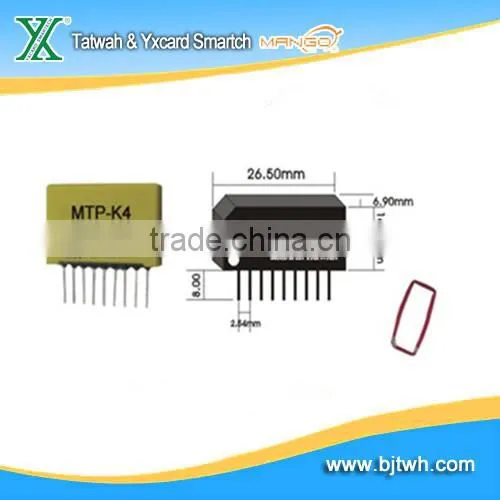

125 KHZ Taiwan original RFIDK4 rf read/write module (optional black, yellow, or whether the RoHS process) Size: 26.5 * 16.5 * 16.5 mm, pin 8 mm long, pin needle spacing of 2.5 mm Low power consumption, card read distance can be up to 30 cm (far) WEIGAND26 / optional 34, RS232 standard format. LED/buzzer straight by driver, very easy to build high quality card reader. Other special circuit package, customer service, the product itself, such as temperature and drift of defects. To adapt to the card: EM/TEMIC/MICROCHIP non-contact induction card is mainly used in identification, access control, attendance, patrolling, electronic locks, in-room safe, car alarm, etc.

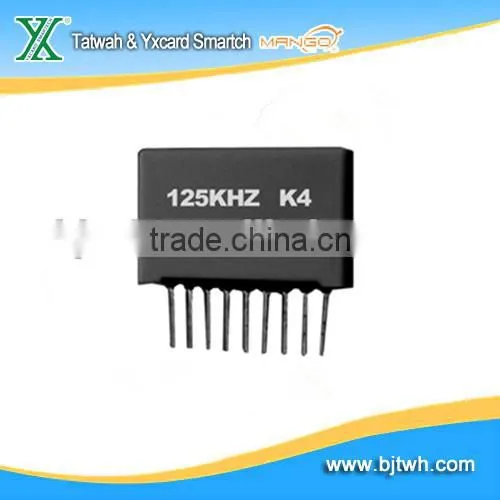

125KHz K4 is module special designed for EM card reader. output format: Wiegand 26 or RS232.
When used as EM reader, it can read only, and the data output from DATA0 and DATA1.
When used as TEMIC reader, it can read and write, and the data output from DATA0 and DATA1.
ITEM |
125KHz K4 |
DEMENSION |
26.5mm×16.5mm×6.9mm |
OPERATING FREQUENCY |
AM 125KHZ |
Operating Voltage |
VCC=5V |
Consumption : |
40mA(5V) nominal |
I/O |
25mA sink/source |
Operating Temperature |
-40℃~85℃ |
Storage Temperature |
-40℃~85℃ |
Storage Humidity |
5~95% RH |
Applications:
- Access control, attendance control, identification, logistic, industrial automation,
- skating, tickets, casino token, membership, public transportation, e-payment, animal tracking,
- multi-purpose-card system, catering, swimming pool, laundry, massage center, recreation center.
Competitive Advantage:
- The best price;
- Excellent quality;
- Fast delivery;
- Large capacity and a wide range of products;
- ODM and OEM products according to customer's demand

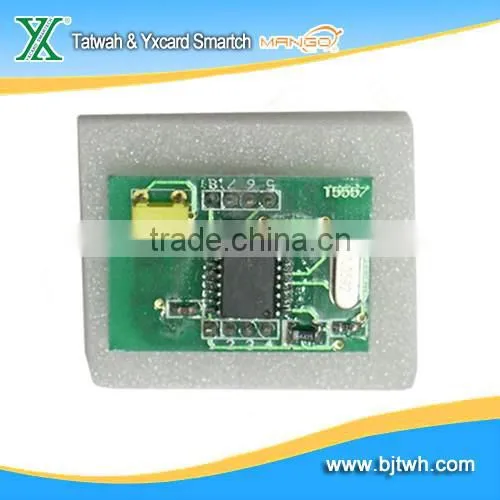

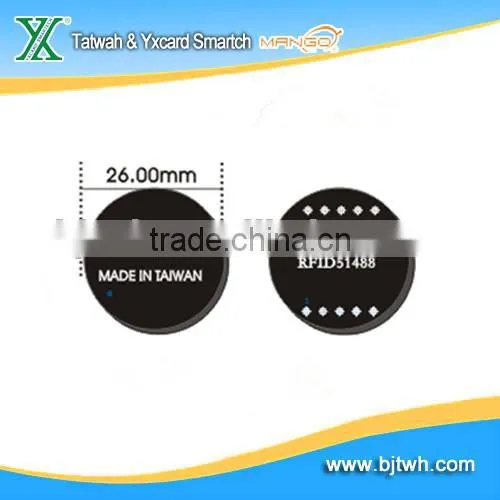

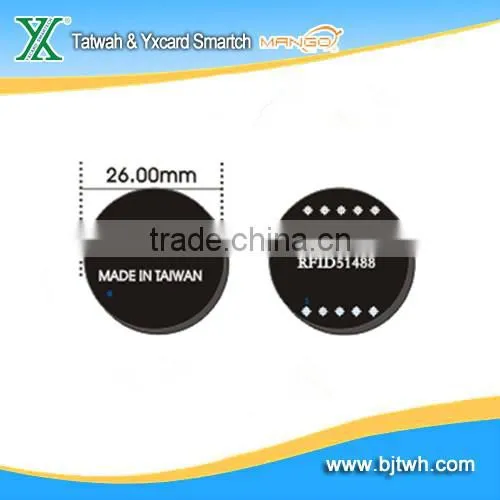

Product Pictures
About us:
1.More than 10 years of professional experience in card manufacturing.
2.Over 1,000 employees and 32,000 square meters' factory.
3.The output is more than 100 millions of RFID cards, labels and Tags, and more than 100,000 units of readers, writers and modules per year.
4.We have the Indigo advanced personalization printing machines, large-scale lamination production line and low-cost smart labels production line with innovative technology, and focus on R&D of LF/HF/UHF RFID tags and industrial application, as a manufacturer with the most comprehensive types of chips.
