Specifications
soybean oil extraction mill .-combined with heater, fryer, squeezer, filter function in one,
-size 1.22*1.16*1.89m,

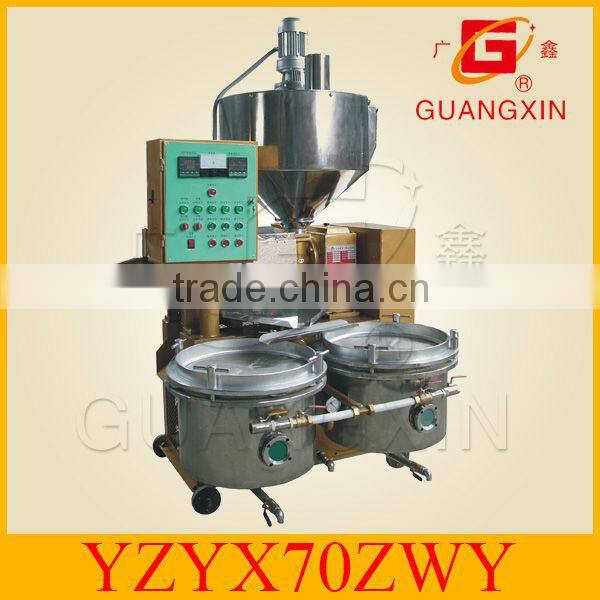

YZYX70ZWY integrated screw soybean oil extraction mill advantages
1. Has combined functions in one—auto warming up, frying, squeezing and crude oil's filtrating, therefore saves labor cost and
time consumption. Users no need to buy a frier for hot pressing.
2. The function of auto-heating the press cage has replaced the traditional way by squeezing residue cake, which shortened the
preparation work and reduced the energy consumption. When the squeezing is suspended, the temperature can be
maintained at a certain degree by this system.
3. The two vacuum filters equipped on the machine has advantages of easy operating, high output and the filtration result is
precise.

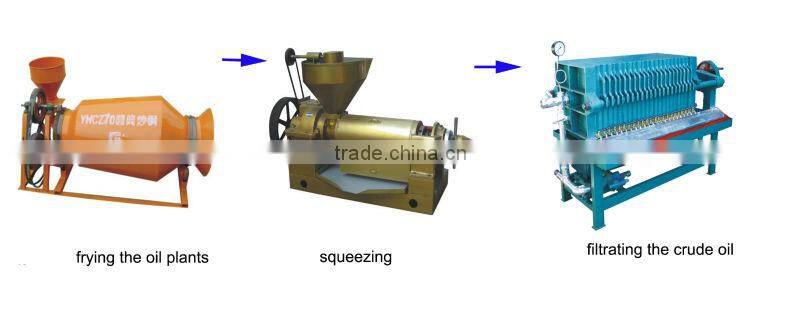

One YZYX70ZWY has functions of below three machines! High integration!
YZYX70ZWY specification
Model |
YZYX70ZWY |
Processing capacity (t/24h) |
1.0 |
Oil content of dry cakes (%) |
≤8 |
Squeezing power (k.W) |
4 |
Frying power(k.W) |
6 |
Filter power(k.W) |
0.55 |
Temperature control power(k.W) |
1.2 |
Mixing power(k.W) |
0.25 |
Measurement (mm) |
1218×1160×1882 |
Spiral axes rotate speed (r/min) |
32-42 |
Weight (KG) |
650 |
Main Oil Plants | ||
Oil Plants |
Processing Capacity (t/24h) |
Oil Content of Dry Cakes (%) |
Rapeseed |
≥0.8 |
≤8.0 |
Cottonseed |
≥0.8 |
≤7.5 |
Soybean |
≥0.8 |
≤7.0 |
Peanut |
≥0.8 |
≤8.0 |
What oil seeds can be processed by YZYX70ZWY?
More than 30 kinds of oil material, such as rapeseeds, cotton seeds, soybean, shelled peanut, flax seeds, sunflower seeds
and palm kernel, etc. Especially for making refined high class plant oil.
What business can be done with YZYX70ZWY?
Producing oil for clients with supplied oil seeds or produce oil at farmer market. Clients could see how the oil being extracted out and trust the oil quality.
Quality standard
Conform to JB/T9793·1-1999 of the People's Republic of China & ISO9001:2008.
After-sale service
1. We supply spare all year around.
2. We supply technical solutions and helps for buyers at any time.
Certificate
Our product range
Send me inquiry or talk with me on line for more information
