easy operating small cheap integrated small refinery use screw oil presser
- 800 Piece / Pieces per Month
- Chongqing Guangzhou Shanghai or any china port
- T/T L/C D/P D/A Credit Card PayPal
- used for stone pe-250x400 quartz small jaw crushers
- low comsuption mini rock diesel engine jaw crusher
- china manufacturer provide used jaw crusher price
- high efficiency pe 400 x 600 old mini jaw crusher for sale
- manufacturer provide toggle platepe 150x250 jaw crusher machine
- pe 400x600 mobile jaw crusher price with spare parts
Product Details
Condition: | New | Usage: | Sesame Oil | Type: | Other, Cold & Hot Pressing Machine |
Automatic Grade: | Automatic | Production Capacity: | 54kg processing capacity per hour | Place of Origin: | Sichuan, China |
Brand Name: | GUANGXIN | Model Number: | YZYX70ZWY | Voltage: | 380V |
Power(W): | 4KW | Dimension(L*W*H): | 1218*1160*1882 | Weight: | 560KG |
Certification: | ISO | After-sales Service Provided: | No overseas service provided |
Product Description
Specifications

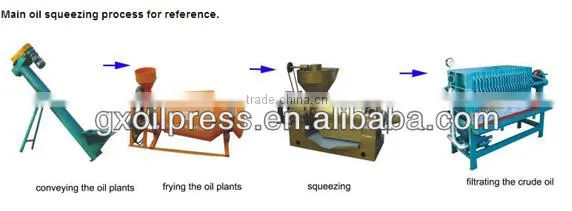

small cheap integrated small refinery use screw oil presser-with frying, squeezing, filtering in one,
-easy operating
Features Of Our Products
1. Mini size, requires small land to set and run.
2. Healthy! Pure mechanical squeezing craft maximally keeps the nutrients of the oil plants. No chemical substances left.
3. High working efficiency! Oil plants only need to be squeezed by one time when using hot pressing. The left oil in cake is low.
4. Long durability! All the parts are made of the most suitable material and treated with refined crafts, such as cemented quenching and tempering to increase the hardness, consequently the durability.
5. Cost-effective! Low investment! The wearing parts on the machine such as the squeeze loop, squeeze spiral and squeeze bar are designed to be dismountable. When they are out of service period, users only need to replace them and no need to displace the whole machine.
6. Easy operation and low labor investment. One or two person are enough to run the machine and complete the oil making process.
Compare With Peers
Weight
For the same capacity machine, our machine is heavier than other machine from different factory (ours is 1.5 times as heavy as others). both the better quality and more materials will make the machine heavier.
The use-life of gear
The gears in the gearbox can be used continuously for 10,000 hours.
Replacement frequency of important parts
For the squeeze spiral, ours needs to replace after a month of continues work
For the squeeze loop, ours needs to replace after two month or two and a half month of continues work
Special manufacturing process
All the squeeze spirals and loops are quenched and forged. This special process is not only ensuring the hardest but also increasing the flexibility, that’s why our accessories are more wearable.

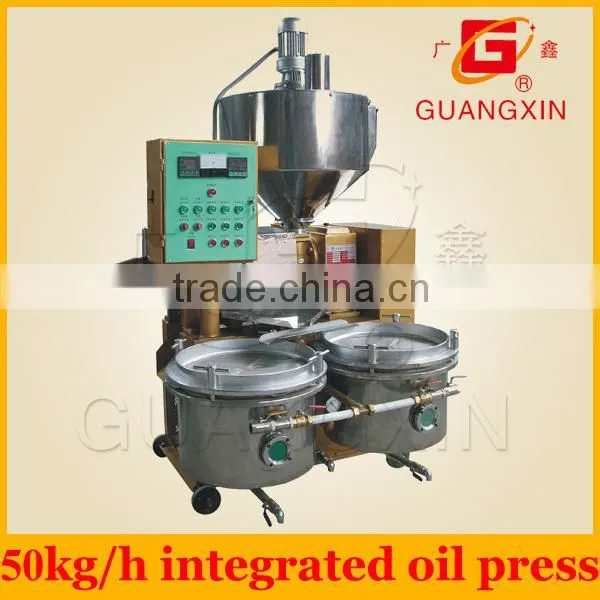

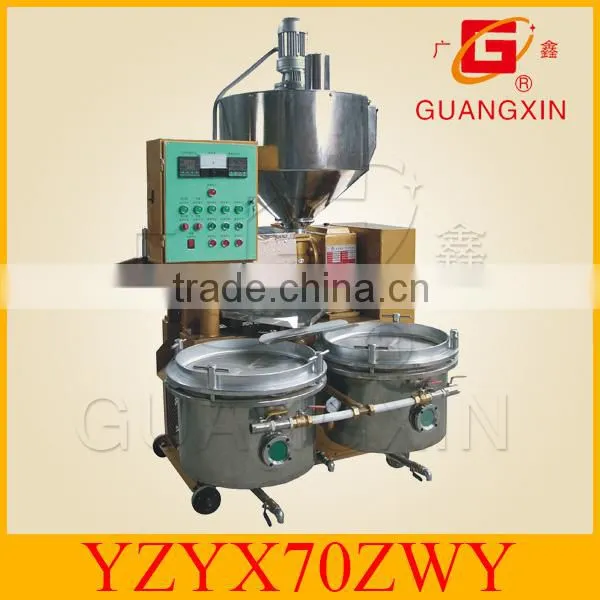

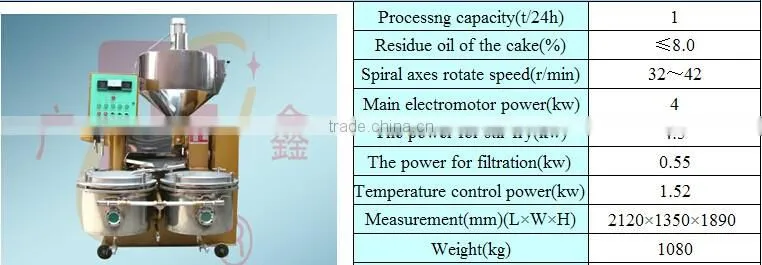

YZYX70ZWY Characteristics

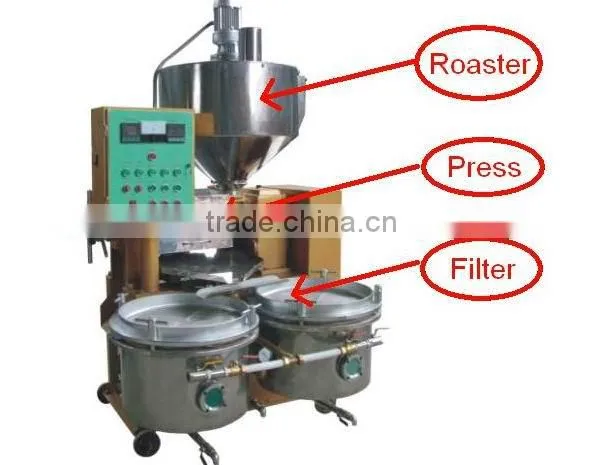

1. Has combined functions in one—auto heating, frying, squeezing and crude oil's filtrating, therefore saves labor cost and time consumption. Users no need to buy a frier for hot pressing.
2. The function of auto-heating the press cage has replaced the traditional way by squeezing residue cake, which shortened the preparation work and reduced the energy consumption. When the squeezing is suspended, the temperature can be maintained at a certain degree by this system.
3. The two vacuum filters equipped on the machine has advantages of easy operating, high output and the filtration result is precise.
4. Day output 0.70ton/24h, oil content of residue cake ≤8%.
- Many oil plants, such as rapeseeds, cotton seeds, soybean, shelled peanut, flax seeds, sunflower seeds and palm kernel, etc.
- Medium and small oil refinery, oil mill and private oil squeezing workshop.
- Performs well both in cold pressing and hot pressing.
Exhibition And Communication:

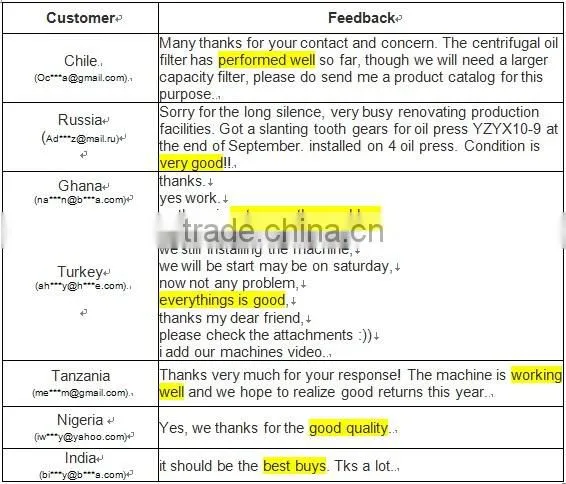

Feedback:
Certifications:
Test Standard:
Our oil press strictly conforms to GB/T9793.1-19999 of the People’s Republic of China and has been ISO and BV certified.
Warranty Terms:
A. Free replacement of accessories in 6 months from the date of purchasing.
B. Free replacement of main body in 12 months from the date of purchasing
Payment:
30% deposit to run order by T/T, the balance be paid up before shipment. Or LC, western union, paypal are acceptable.
FAQ:
- Delivery time.

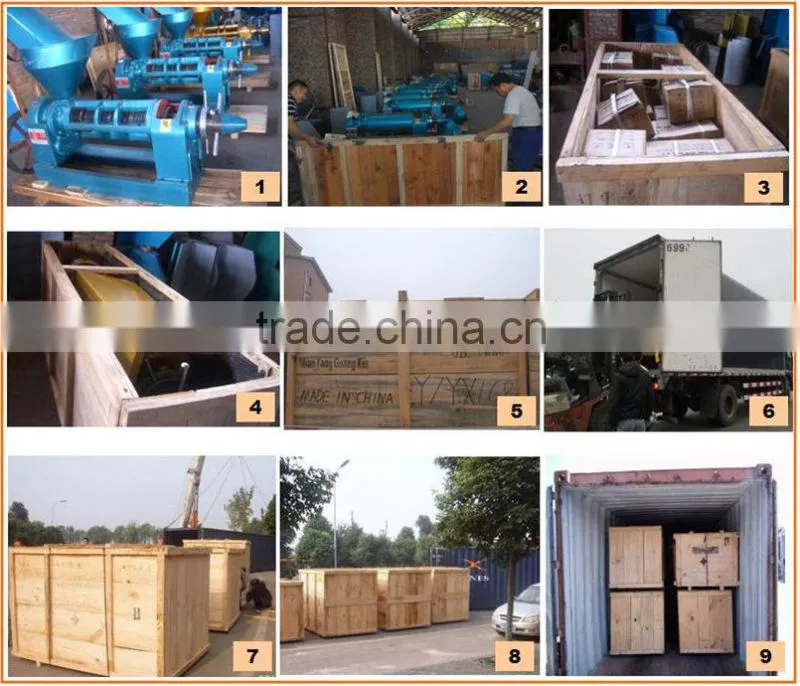

---20~30 days after order confirmation. We need time to prepare machine according to exporting standard, wear-in, making wooden box, fumigation and suitable ship arrangement from forwarder. - If I don't know how to operate this machine? how can I do?
----Our machine has been tested OK and fully assembled before shipping, customer just needs to make
2~4 hours wear-in and then can work. - What's wear-in for new machine?
---- use 10 KG oil cake + 1KG sand + 1KG water, mix them, put in oil press, wear in 3~4hs.
1st hour, adjust oil cake thickness as 3mm.
2nd hour, adjust oil cake thickness as 2.5mm.
3rd hour, adjust oil cake thickness as mm. - What are cold press and hot press?
----Cold press is pressing dry and raw seeds. Usually need to press 2 times to get maximum oil.
----Hot press is pressing roasted seeds. Usually only press 1 time to get maximum oil. peanuts roast
to 125~130 degree with 1~2% moisture. (We produce seeds roaster heated by economical fuel.)
Working video:
/programs/view/pbRq-oFkXqk/
/programs/view/brm25g0aoRA/
/programs/view/yjbmmhPJfb8/
/programs/view/CTJ3xTsmApY/
/programs/view/z3okMxUJl10/
