Specifications
oil presser-mini, but has auto warming up, frying, squeezing, filtering in one,
-capacity 1.0 ton/day,
-hot and cold press
1. Guangxin Oil Presser General Description
Adopting spiral squeezing structure and physical squeezing craft, the oil presser made by Guangxin is widely used in oil refinery and rural enterprises for squeezing oil from rapeseed, cottonseed, peanut, soybean, flax seed, tung oil seed, sunflower seed and palm kernel, etc. It has advantages of small investment, easy operating, high efficiency and strong compatibility, etc. Users could obtain good economic benefit from it.
- Healthy! Physical squeezing craft maximally keeps the nutrients such as the protein, fatty acids and minerals, etc.
- High working efficiency! The spiral squeezing structure can achieve high oil output, the oil content of the residue cake is low. Oil plants only need to be squeezed by one time when using hot pressing.
- Long durability! Long durability: all the parts are made of the most suitable material and treated with refined crafts, such as cemented quenching and tempering to increase the hardness, consequently the durability.
- Cost-effective! The wearing parts on the machine such as the squeeze loop, squeeze spiral and squeeze bar are designed to be dismountable. When they are out of service period, users only need to replace them and no need to displace the whole machine.

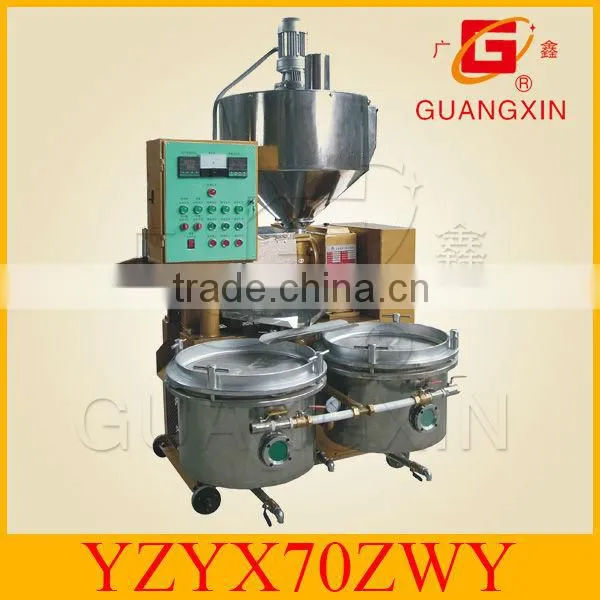

2. YZYX70ZWY Mini Oil Presser Characteristics
- Has combined functions in one—auto warming up, frying, squeezing and crude oil's filtrating, therefore saves labor cost and time consumption. Users no need to buy a frier for hot pressing.
- The function of auto-heating the press cage has replaced the traditional way by squeezing residue cake, which shortened the preparation work and reduced the energy consumption. When the squeezing is suspended, the temperature can be maintained at a certain degree by this system.
- The two vacuum filters equipped on the machine has advantages of easy operating, good ability and the filtration result is precise.
- Day output 1.0 ton/24h, oil content of residue cake is ≤8%.
3.YZYX70ZWY Specification
Product Name |
Automatic temperature control combined oil press |
Model |
YZYX70ZWY |
Processing capacity (t/24h) |
1.0 |
Oil content of dry cakes (%) |
≤8 |
Squeezing power (k.W) |
4 |
Frying power(k.W) |
6 |
Filter power(k.W) |
0.55 |
Temperature control power(k.W) |
1.2 |
Mixing power(k.W) |
0.25 |
Measurement (mm) |
1218×1160×1882 |
Spiral axes rotate speed (r/min) |
32-42 |
Weight (KG) |
650 |
Main Oil Plants | ||
Oil Plants |
Processing Capacity (t/24h) |
Oil Content of Dry Cakes (%) |
Rapeseed |
≥0.8 |
≤8.0 |
Cottonseed |
≥0.8 |
≤7.5 |
Soybean |
≥0.8 |
≤7.0 |
Peanut |
≥0.8 |
≤8.0 |
4. Applicable oil seeds
- Many oil plants, such as rapeseeds, cotton seeds, soybean, shelled peanut, flax seeds, sunflower seeds and palm kernel, etc. Especially for making refined high class plant oil.
5. Quality Standard
- Conform to JB/T9793·1-1999 of the People's Republic of China & ISO9001:2008.
6. After-Sale Service
- We supply spare all year around.
- We supply technical solutions and helps for buyers at any time.

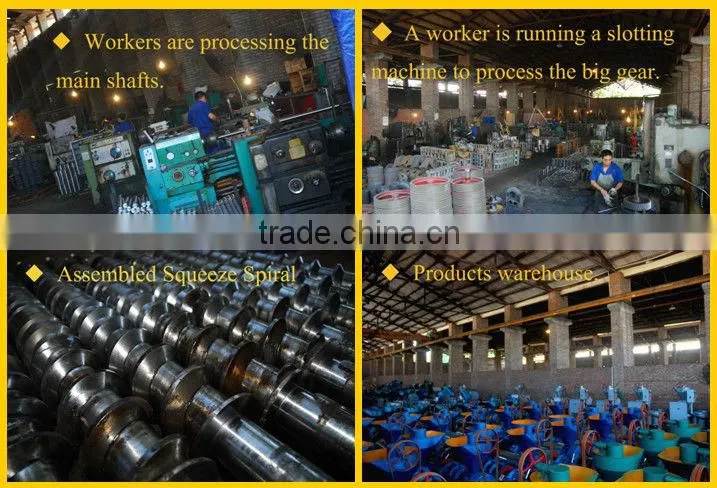

7. Company display
We are your professional, reliable and cooperative parter & support in cooking oil press industry! Feel free to contact me for any information!
