Home > Manufacturing & Processing Machinery > Agricultural Machinery > Oil Presser > Automatic Screw Oil Press Expeller
Automatic Screw Oil Press Expeller
US$ 3,000 - 4,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Usage:
Peanut Oil
Type:
Other, Cold & Hot Pressing Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing Guangzhou Shanghai or any other China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Water Cooling Oil Squeezing Machine Pure Water MachineUS$ 1,800 - 2,300MOQ: 1 Piece -
2015 New Arrival! Seed Oil Squeezing Machine ExpellerUS$ 1,800 - 2,300MOQ: 1 Piece
-
Made in PRC Sesame Oil Press Machinery for Latin MarketUS$ 3,000 - 4,000MOQ: 1 Piece
-
Advanced Integrated Plant Seed Vegetable Cooking Oil Presser Oil Making MachineUS$ 3,000 - 4,000MOQ: 1 Piece
-
Integrated Mini Oil Presser Oil Extractor Essential Oil ExtractorUS$ 3,000 - 4,000MOQ: 1 Piece
Condition
New
Usage
Peanut Oil
Type
Other, Cold & Hot Pressing Machine
Automatic Grade
Automatic
Production Capacity
1.0 ton/24hours
Place of Origin
Sichuan, China
Brand Name
GUANGXIN
Model Number
YZYX70ZWY
Voltage
380V
Power(W)
4k.W
Dimension(L*W*H)
1218*1160*1882mm
Weight
650kgs
Certification
ISO, BV
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
automatic screw oil press expeller-auto warming up, frying, squeezing, filtering in one,
-capacity 1.0 ton/day,
-hot press
1. Guangxin Oil Press Expeller Extractor General Description
The oil press made by Guangxin is widely used in oil refinery and rural enterprises for squeezing oil from oil
seeds, nuts, etc. It is welcomed by users because of the fatures below:
- Healthy! Physical squeezing craft maximally keeps the nutrients such as the protein, fatty acids and minerals, etc.
- High working efficiency! The spiral squeezing structure can achieve high oil output, the oil content of the residue cake is low. Oil plants only need to be squeezed by one time when using hot pressing.
- Long durability! Long durability: all the parts are made of the most suitable material and treated with refined crafts, such as cemented quenching and tempering to increase the hardness, consequently the durability.
- Cost-effective! The wearing parts on the machine such as the squeeze loop, squeeze spiral and squeeze bar are designed to be dismountable. When they are out of service period, users only need to replace them and no need to displace the whole machine.
2. Quality Standard
- Conform to JB/T9793·1-1999 of the People's Republic of China & ISO9001:2008.
3. After-Sale Service
- We supply spare all year around.
- We supply technical solutions and helps for buyers at any time.

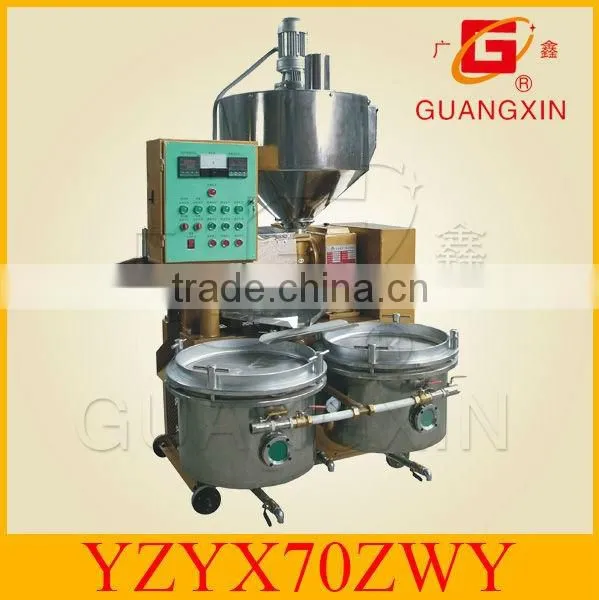

4. YZYX70ZWY Mini screw oil press peanut oil expeller characteristics
- Has combined functions in one—auto warming up, frying, squeezing and crude oil's filtrating, therefore saves labor cost and time consumption. Users no need to buy a frier for hot pressing.
- The function of auto-heating the press cage has replaced the traditional way by squeezing residue cake, which shortened the preparation work and reduced the energy consumption. When the squeezing is suspended, the temperature can be maintained at a certain degree by this system.
- The two vacuum filters equipped on the machine has advantages of easy operating, high output and the filtration result is precise.
- Day output 1.0 ton/24h, oil content of residue cake is ≤8%.
5.YZYX70ZWY Specification
Model |
YZYX70ZWY |
Processing capacity (t/24h) |
1.0 |
Oil content of dry cakes (%) |
≤8 |
Squeezing power (k.W) |
4 |
Frying power(k.W) |
6 |
Filter power(k.W) |
0.55 |
Temperature control power(k.W) |
1.2 |
Mixing power(k.W) |
0.25 |
Measurement (mm) |
1218×1160×1882 |
Spiral axes rotate speed (r/min) |
32-42 |
Weight (KG) |
650 |
6. YZYX70ZWY Suitable for
- Many oil plants, such as rapeseeds, cotton seeds, soybean, shelled peanut, flax seeds, sunflower seeds and palm kernel, etc. Especially for making refined high class plant oil.
- Medium and small oil refinery, oil mill. Especially good for processing materials supplied by clients .
- Performs well both in cold pressing and hot pressing.
We are developing sales agents for our products, feel free to contact me for any information!
