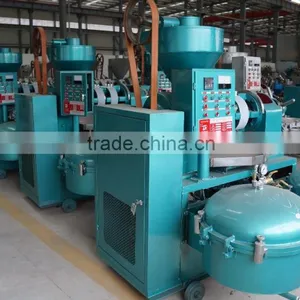

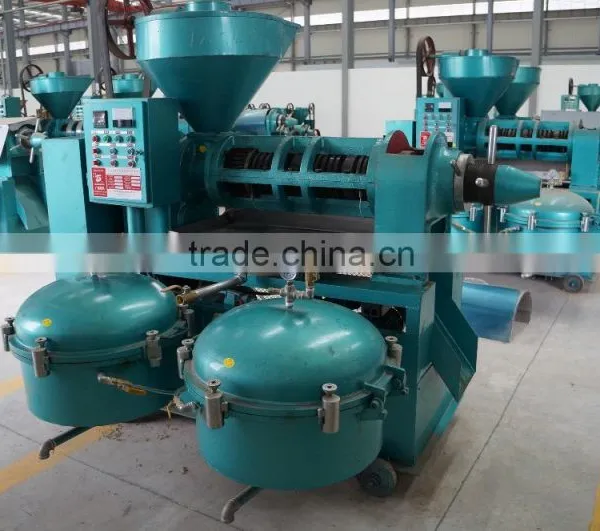

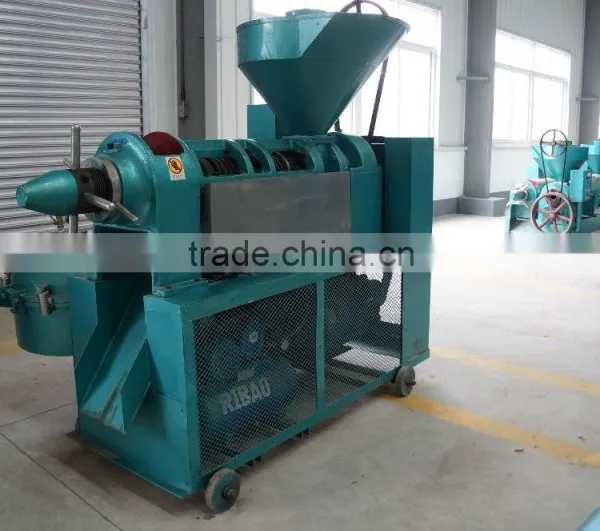

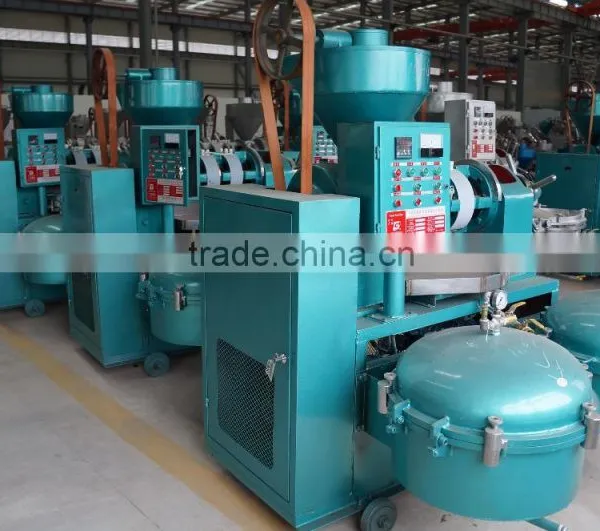

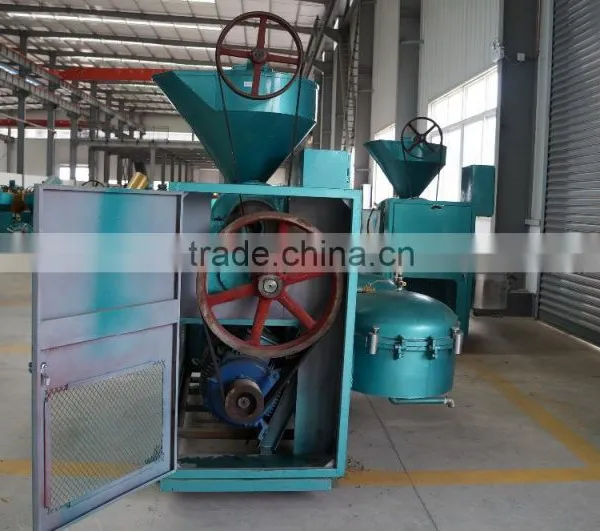

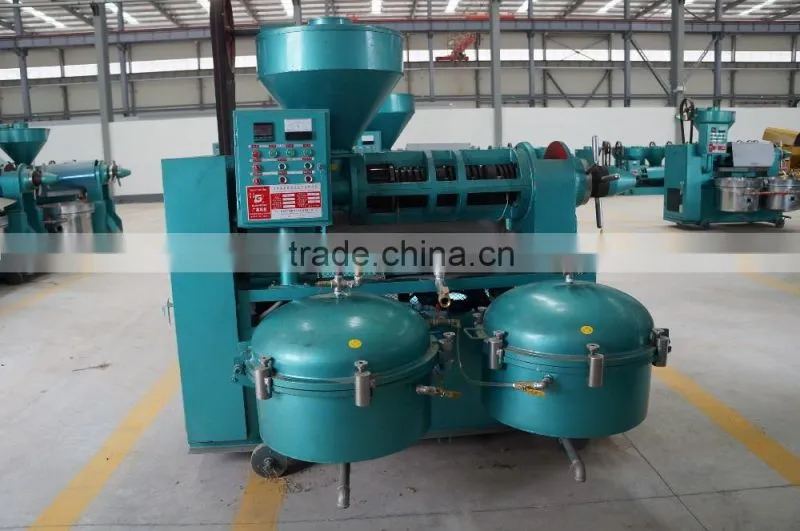

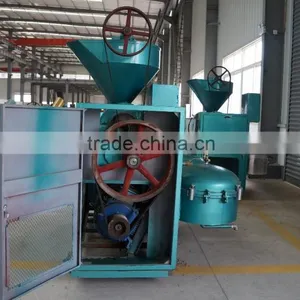

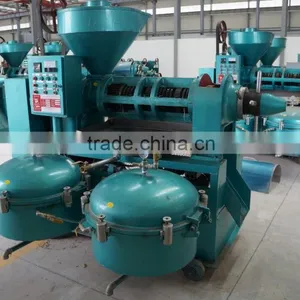

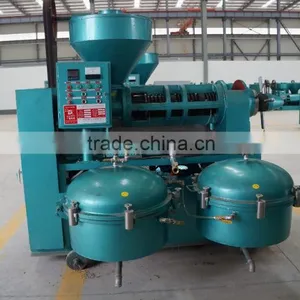

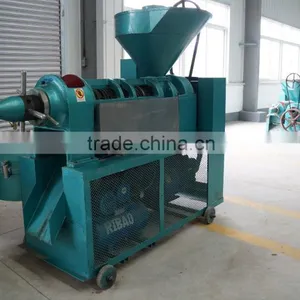

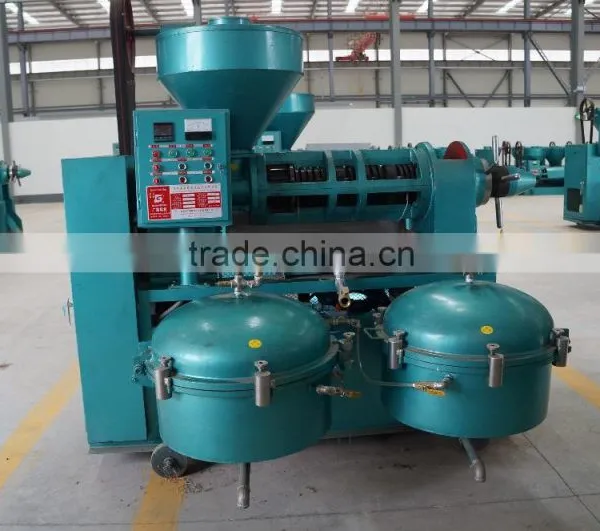

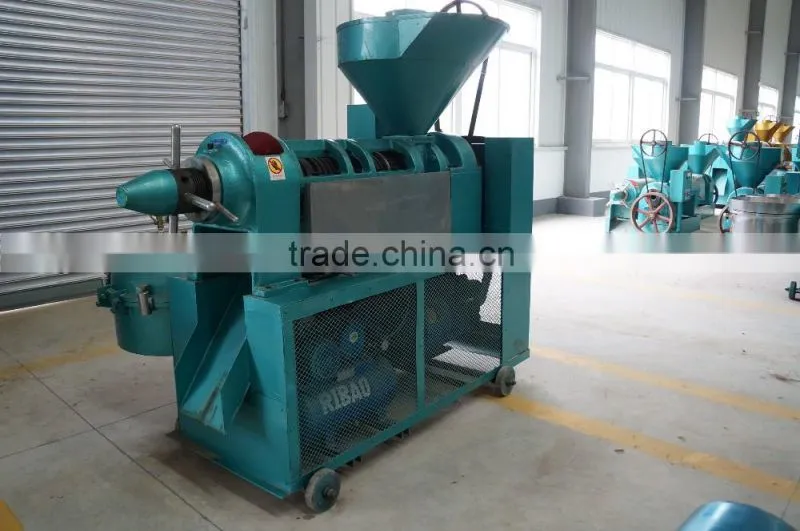

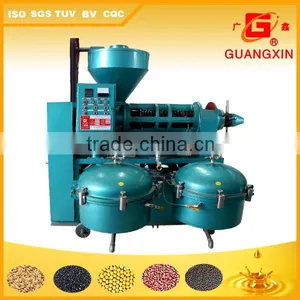

Screw type soybean oil extruding machine :
YZLXQ130 Characteristics

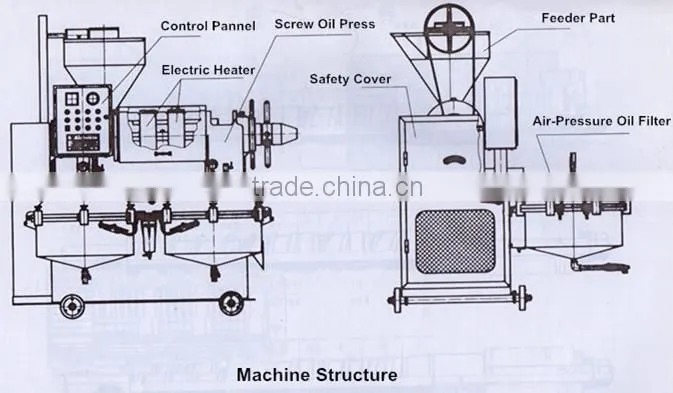

1. Has multi functions in one—electric heater, press machine and air pressure filters.
2. The electric heater can auto heat the press cage. When the squeezing is suspended, the temperature can be maintained.
3. The two air pressure filters can precisely get rid of the residues in the crude oil.
4. Day output 8ton/24h, oil content of residue cake ≤8%.
Processing Capacity (T/24H): 8.0
Oil Content Of Dry Cakes (%): ≤8
Squeezing Power (KW): 15
Heating Power (KW): 4.0
Filtration Power (KW): 1.5
Measurement (Mm): 2005*1522*1915
Spiral Axes Rotate Speed (R/Min): 28-40
Weight (Kg): 1400
1. Making oil from many seeds such as rapeseeds, cotton seeds, soybean, peanut, flax seeds, sunflower seeds and palm kernel, etc.
2. Has the function of auto temperature control to save the warm up time and maintain the constant temperature in squeezing cage.
1. Made by ISO,SGS approved factory.
2. High oil output.
3. Durable spare parts.
4. Low energy consumption and less manpower (one person can operate).
5. 24 hours continuous working.
6. Competitive price with high oil yield.
7. Easy maintenance.
8. Perfect technical design with less labor.
9. Stable and durable equipment function
| Model | YZLXQ10(95) | YZLXQ10-6 | YZLXQ120 | YZLXQ140 |
| Processing capacity (t/24h) | ≥3.5 | ≥4.0 | ≥6.5 | ≥10.0 |
| Oil content of dry cakes (%) | ≤8.0 | ≤8.0 | ≤6.0 | ≤8.0 |
| Main electromotor power (KW) | 7.5 | 11 | 15 | 22 |
| Temperature control power (KW) | 3.6 | 3.6 | 4.0 | 4.0 |
| Filtration Power (KW) | 1.5 | 1.5 | 1.5 | 1.5 |
| Spiral axes rotate speed (r/min) | 32-40 | 32-40 | 32-42 | 28-40 |
| Measurement (mm) | 1790*1520*1915 | 1890*1520*1915 | 1948*1522*1915 | 2120*1350*1890 |
| Weight (KG) | 1023 | 1075 | 1115 | 1400 |
Since 1980s
Expert manufacturer of
oil press machine, oil filter, oil refinery equipment.
Passed ISO9001:2008, SGS, TUV, BV and CQC assessment.
Export to more than 70 countries, including Europe and North America
Owned Guangxin Import & Export Co., Ltd and Oil and Grease Machinery Research Institute.
Guangxin factory is focus on oil press , we believe we will be your good partner in china. Welcome to visit our factory . we will have enough production capacity to meet your requirement.
1. One year warranty.
2. Supplying wearing parts all year around.
3. Supplying technical solutions at any time.
4. Helping design and plan the oil plant's construction.
5. Providing installation video.
6. Tried orders are available.
7. Developing agents with good policies around world.
--------------------------------------------------------------------------------
FAQ:
Q1 :Do you have inspection procedures for oil press ?
A: 100% self-inspection before packing
Q2:Can we mix the 20ft container?
A: Yes,if the items are meet our min order qty.
Q3:Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Here is our factory address:MianYang City,China.
Our factory is near to Mianyang Airport.We can pick you up in the airport.
Hotel booking service is available .
