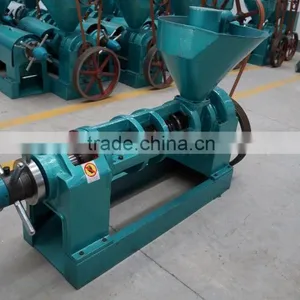

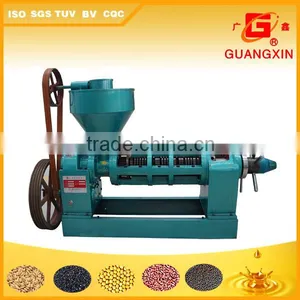

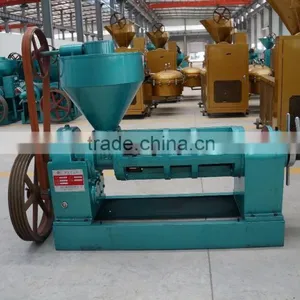

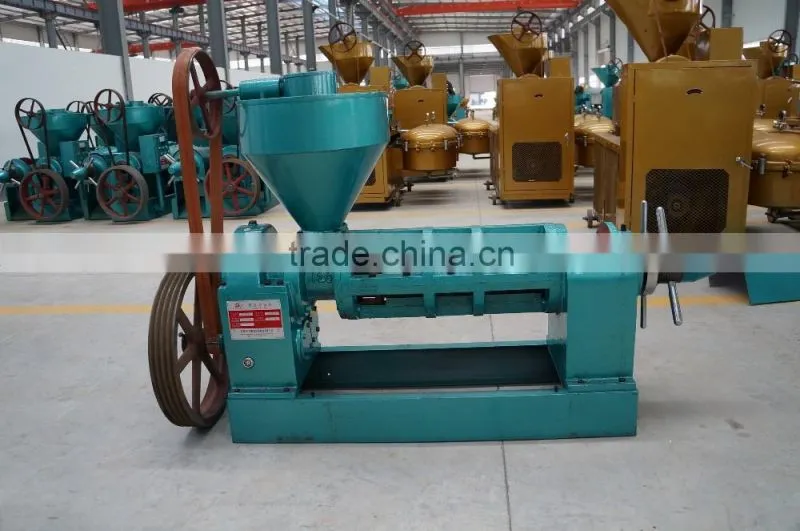

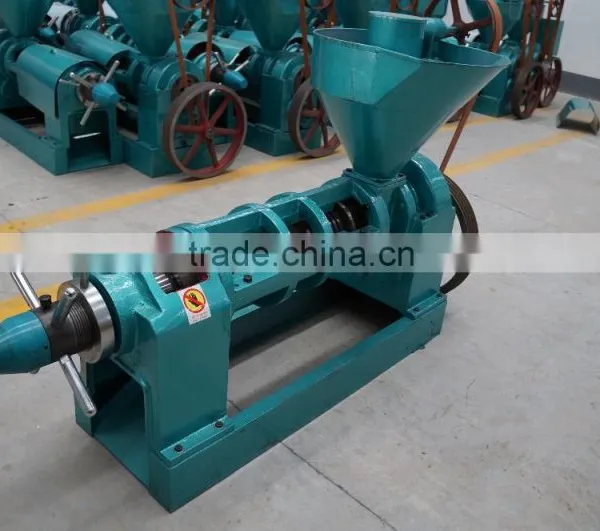

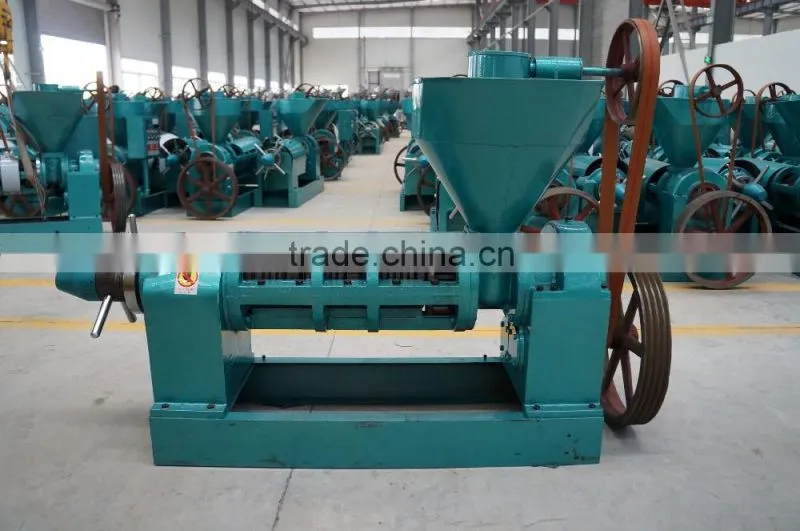

6.5 TPD manual oil extractor electric vegetable oil extractor :
- 2-step oil pressing type, strong power, able to process all kinds of oil seeds.
- can process oil seeds 270kgs/h.
- High oil output, the left oil in cake is only 6.5%. This point can increase the profit for users.
Product Name |
Spiral Oil Expeller |
Model |
YZYX120 |
Processing Capacity (t/24h) |
270kgs/h |
Oil Conten of dry cakes (%) |
≤6.5 |
Power Required (KW) |
11-15 |
Measurement (mm) |
1860*622*1275mm |
Spiral axes rotate speed (r/min) |
32-40 |
Weight (KG) |
680 |
1. Making oil from many seeds such as rapeseeds, cotton seeds, soybean, peanut, flax seeds, sunflower seeds and palm kernel, etc.
2. Has the function of auto temperature control to save the warm up time and maintain the constant temperature in squeezing cage.
1. Made by ISO,SGS approved factory.
2. High oil output.
3. Durable spare parts.
4. Low energy consumption and less manpower (one person can operate).
5. 24 hours continuous working.
6. Competitive price with high oil yield.
7. Easy maintenance.
8. Perfect technical design with less labor.
9. Stable and durable equipment function
Model |
YZYX70 |
YZYX90 |
YZYX10 |
YZYX120 |
YZYX130 |
YZYX140 |
YZYX168 |
Processing capacity (t/24h) |
≥1.3 |
≥3.0 |
≥4.5 |
≥6.5 |
≥8.0 |
≥10.0 |
≥20.0 |
Oil content of dry cakes (%) |
≤8.0 |
≤8.0 |
≤8.0 |
≤6.5 |
≤8.0 |
≤8.0 |
≤8.0 |
Main electromotor power (KW) |
4.0 |
5.5 |
7.5 |
15 |
18.5 |
22 |
45 |
Measurement (mm) |
1090*405*806 |
1200*550*1000 |
1620*580*1165 |
1860*622*1275 |
1950*742*1500 |
2010*690*1430 |
2670*1000*1726 |
Spiral axes rotate speed (r/min) |
36-42 |
32~42 |
32~40 |
32~40 |
28~40 |
28~38 |
32~38 |
Weight (KG) |
195 |
285 |
570 |
680 |
825 |
806 |
1710 |
Since 1980s
Expert manufacturer of
oil press machine, oil filter, oil refinery equipment.
Passed ISO9001:2008, SGS, TUV, BV and CQC assessment.
Export to more than 70 countries, including Europe and North America
Owned Guangxin Import & Export Co., Ltd and Oil and Grease Machinery Research Institute.
Guangxin factory is focus on oil press , we believe we will be your good partner in china. Welcome to visit our factory . we will have enough production capacity to meet your requirement.
1. Warranty Terms:
A. Free replacement of accessories in 6 months from the date of purchasing.
B. Free replacement of main body in 12 months from the date of purchasing.
2. Supplying wearing parts all year around.
3. Supplying technical solutions at any time.
4. Helping design and plan the oil plant's construction.
5. Providing installation video.
6. Tried orders are available.
7. Developing agents with good policies around world.
--------------------------------------------------------------------------------
FAQ:
- Delivery time.
---20~30 days after order confirmation. We need time to prepare machine according to exporting standard, wear-in, making wooden box, fumigation and suitable ship arrangement from forwarder. - If I don't know how to operate this machine? how can I do?
----Our machine has been tested OK and fully assembled before shipping, customer just needs to make
2~4 hours wear-in and then can work. - What's wear-in for new machine?
---- use 10 KG oil cake + 1KG sand + 1KG water, mix them, put in oil press, wear in 3~4hs.
1st hour, adjust oil cake thickness as 3mm.
2nd hour, adjust oil cake thickness as 2.5mm.
3rd hour, adjust oil cake thickness as mm. - What are cold press and hot press?
----Cold press is pressing dry and raw seeds. Usually need to press 2 times to get maximum oil.
----Hot press is pressing roasted seeds. Usually only press 1 time to get maximum oil. peanuts roast
to 125~130 degree with 1~2% moisture. (We produce seeds roaster heated by economical fuel.)
