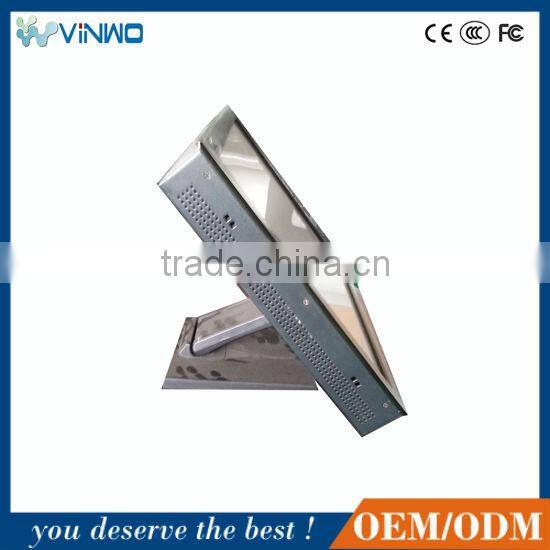

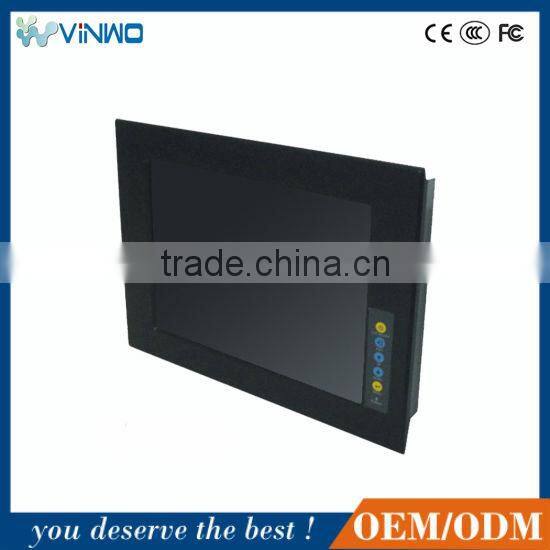

Small Screen 10.4'' Security Lcd Monitor

Specifications

Small Screen 10.4'' Security Lcd Monitor

EM-104  industrial LCD Monitor

Body Parameter:

u  Front Surface:      Aluminum Alloy

u  Anti-Seismic:       IP65

u  Box Structure:      Anti-Corrosion

u  Install Way:         Wall Mounted,

u  Power Input:      DC12V

u  Color:                 Black

LCD Screen Specification:

u  Type:                          10.4’’ TFT LCD

u  Max Resolution:        1280X1024

u  Display Color:           16.7M

u  Response Time:       8ms

u  Life:                            50000h

u  Brightness:                400cd/m²

u  Contrast Ratio:          500:1

u  Viewing Angle:          80/80/80/80(Min.)

Touch Screen (optional):

u  Type:                             Analog resistive

u  Resolution:                 4096X4096

u  Response Time:         <10ms

u  Hardness:                    3H

u  Touch Life:                  250g, 10 million times

u  Stylus Life:                  250g, 1 million times

u  Transmittance:            more than 81%

u  Connecting:                 RS232, USB

Environment:

u  Work Temperature:       0-50°C

u  Storage Temperature:  -20-60°C

u  Relative Humidity:         10-95@40°C

u  Vibration:                       1.0G,50-500Hz

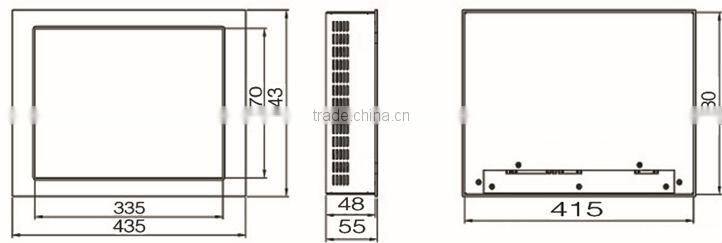

Specification:

Contact Us:

E-mail: vinwo12(@)

Tel: 0086-020-37036181

Fax: 0086-020-37036172

Company Image:

GUANGZHOU VINWO ELECTRONIC CO., LTD was establish in 2008 , located in Tianhe area Guangzhou, our factory covers an area over 2300 square meters.

We specialized in produce,sales and provide good techniques support for Digital Signage,Information Kiosk,LCD video wall,LCD Television,Electronic Whiteboard for Education,Multimedia exhibition planning and Film production planning.

Certificate:
