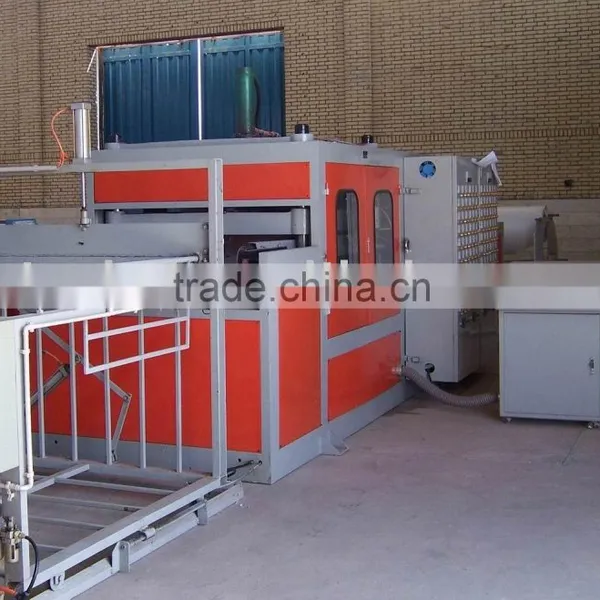

(Tianhai )Fully Automatic Vacuum Forming Machine

Specifications

(Tianhai )Fully Automatic Vacuum Forming Machine can produce ps fast food box ,foam tray ,hamburger box ,fruit tray etc

(Tianhai )Fully Automatic Vacuum Forming Machine is an all-powerful thermal forming machine with integration of vacuum forming ,press forming and synthetical forming .It can be used for processing many  kinds of plastic sheet .The machine adopts digital system , fully automatic PLC mechanical and electronic integration control ,touch screen to control the working programme .It is easy to operate and of high efficiency .It features reliable stability ,large forming area ,fast speed,highly degree of automation and economic on manpower .

Main technical parameters

parameter	Unit	Model
		TH-640/850	TH-1100/1250
Forming area	MM	640×850	1100×1250
Forming depth	MM	130
Production Efficiency	S/Die	3-5
Heating area	MM	750×1700	1200×2800
Installed power	KW	75	120
Installation Dimension	M	13×2.5×1.6	15×2.6×1.8
Adjusting temperature points	point	34	64
Power supply	380V 50HZ          220V 60HZ 3 phase  380V 50HZ      3 phase  220V 60HZ
