EPS /PS Food box/ container projects machine1. Fully automatic line
2. Temperature Digital Display
3. CE & ISO standard

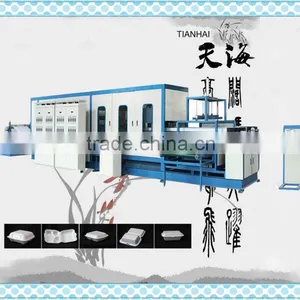

EPS/PS Food box/ container projects machine
The working process as below:
Feeding ---heating area (heating by remote infrared ceramic heater)--forming area (vacuum Forming, press forming and synthetically forming) --Pneumatic cutting knife (cut the shaped sheet into pieces) --winding scrap.
1. It is an all-powerful thermal forming machine with integration of vacuum forming and cutting.
2. It can produce PS foam food box/container, foam (egg/meat) tray, hamburger box, foam plates/bowl, fruit tray, etc. The foam container has feature of shock-resistance ,crush-resistance , heat insulation ,etc . It is widely used to pack the heat and frozen food in supermarket, store and etc.
3. It adopts remote infrared ceramic heater in heating zone, with which the machine get the most stable and even temperature.
4. It adopts temperature digital system, which is convenient for the workers to know the temperature of each heating zone quickly. Also it is easily operate and make more efficiency.
5. It adopts Japanese servo motor & drive, Mitsubishi PLC mechanical and electronic integration control, touch screen for operating.
6. It features reliable stability, large forming area and fast speed,as well as highly degree of automation & economic on manpower.
7. It adpots automatic pneumatic device in feeding area, which reduces the labor force.
8. We have been in this field for 15 years. You can trust the machine quality and after-sale serivce. Welcome you to visit our factory.
Technical Parameters
|
Parameters |
Unit |
YTTH-1100/1250 |
YTTH-1100/850 |
|
Forming area |
mm |
1100x1250 |
1100x850 |
|
Cutting height |
mm |
160 |
160 |
|
Production efficiency |
S/Die |
3-8 |
3-8 |
|
Installed dimension |
m |
16X6X3.5 |
12x5x3.5 |
|
Installation power |
Kw |
150kw |
120kw |
|
Power supply |
380V 50HZ 220V 60HZ 3 phase 380V 50HZ 3 phase 220V 60HZ |
||
