Super Critical CO2 Extraction Equipment

Supercritical co2 extraction adobt Co2 as solvent to Get Best Extraction and Separation Effects Under Super Critical Condition.

CO2 has many predominant characteristics compare with traditional solvent-extraction process: innocuity, smelless, incombustible, free from corrosion and residues, circulating, little energy cost during state changing, easy to operate at ordinary temperatures. etc.

Our Supercritical CO2 Extraction plant can separate the active ingredients from the raw material easily and selectively, energy-saving and Environment-friendly. The extractive and essential oil are widely used in food additive, cosmetic, medicine and many other fields. Such as extract smell from flowers for perfume, extractive from spice for medicine and essential oil from crops for food industrial. etc.

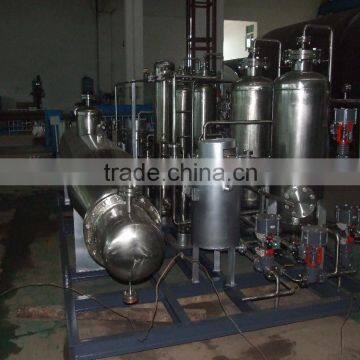

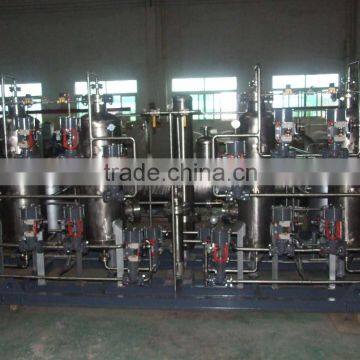

The supercritical CO2 extraction device designed by our company, adopt advanced technology, such as CO2 main system, refrigeration system, hot water constant temperature system, CO2secondary system , air elimination and clean system and automatic control system etc., which up to the advanced levels in the world.

1.CO2 main system, namely CO2 circulatory system: In the system, carries on the extract and the separation to the material, this system consists of the high pressure and medium-pressure vessels. the equipments including: 1) Extract autoclave:Used for extraction as main equipment, The full bore fast open structure makes the operation time of cover open /close in 1 minute. A material basket in autoclave is applied for loading and unloading. In the basket, the precise durable filtrating device can prevent the material access in pipe and other equipment.

2) Separation autoclave: It is used in separating material by the system may consist of 1 autoclave or 1 column 1 autoclave or 2 autoclaves, or according to the user request.

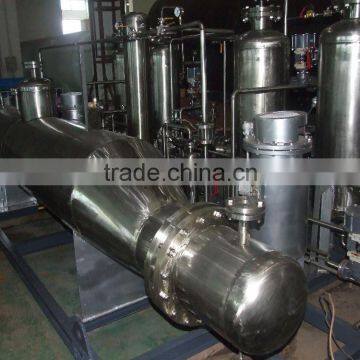

2.Heat exchanger:The primary functions of Heat exchanger are:

1)To ensure the temperature of CO2 achieves the extract temperature and separation temperature.

2)To ensure the CO2`s liquefaction.

3)To ensure the CO2 can enter in the high-pressured CO2 pump to carry on the circulation, this system has 4 heat exchangers. CO2 high-pressure pump:building up the pressure of CO2 to enable its pressure achieves the extraction pressure, the top pressure limits to 45MPa. The velocity modulation system is equipped for flow control, and it is equipped with level 3 overpressure protective measure.

4)CO2 buffer tank:for liquid CO2.

5)CO2 storage tank:CO2 storage.

2. Refrigeration system:

3.Hot water constant temperature system:

4.Electric instruments control:

5.Safty:

6.CO2 secondary system:

7.Air elimination and clean system.

Full-range of service

The combination of eight key elements is Process Design,Equipment Design,Automatic Control System Design,Manufacture, Engineering Design,Installation,Commissioning & Training, After-sales Service,providing the company with the ability of undertaking turnkey projects independently.

Company Profile

ZhuHai GongTong Low Carbon Technology Co., Ltd.,located in ZhuHai City(a special zone of reforming and opening),Guangdong Province,is a professional corporation of designing and manufacturing complete equipments for gas separation,purification,liquefaction and storage.The conpamy has deep research and extensive practice in adsorption and rectification process,equipment and automatic control etc. Main products include CO2 Recovery Plant,LNG Liqudfaction Plant, Air Separation Plant,Cryogenic Liquid Storage & Transportation System etc. We can customizedly designed according to actual requirements of users.

Besides self scientific research system and manufacture system, the company owns import-export license. The company has obtained the ISO 9001 Quality System Certificate by QA Corporation in Britain, the U Stamp certificate Authorized by American Society of Mechanical Engineer(ASME),and certificate of design, manufacture,and installation for Grade 1,2,3 pressure vessels awarded by General Administration of Quality Supervision, Inspection and Quarantine of People’s Republic of China.

Company Qualification

Manufacture License of Type Three Low Pressure,Medium Pressure and High Pressure cessel authorized by AQSIQ(State Adminstration for Quality Supervision and Inspection and Quarantine)with capacity of manufacturing pressure vessels of design pressure 0~100MPa.

Design License of Type Three Low Pressure and Medium Pressure Vessel authorized by AQSIQ(State Adminstration for Quality Supervision and Inspection and Quarantine)with capacity of manufacturing pressure vessels of design pressure 0~10.0MPa.

“NB”Stamp Manufacture Certificate authorized by American Society of Mechanical Engineer(ASME)

“U”Stamp Manufacture Certificate authorized by American Society of Mechanical Engineer(ASME)

GC1 Grade Industrial Pipeline Installation,Alteration,Repair & Maintenance License authorized by AQSIQ(State Adminstration for Quality Supervision and Inspection and Quarantine)

ISO9001:2008 Quality System Certificate authorized by QA corporation in Britain.

UL Certificate for “Underground Flammable-Liquid Tank”authorized by Underwriters Laboratories.

National patent of invention:“Hydrocarbon Removal Technology of Carbon Dioxide”

Credentials of Non-governmental-run Manufacturing Science and Technology Enterprise authorized by Zhuhai Science & Technology Bureau

Our self designed and manufactured automatic CO2 purification and liquefaction equipment has been authenticated by CCIEA

Member of China Chemical Industry Equipment Association(CCIEA)

National High-tech Enterprise Certificate authorized by Guangdong Science and Technology Department.

Our company is the teaching practise base for Beijin Institute of Technology.
