Home > Products > Deep Groove Ball Bearing > 604-2RS Ball Bearing Made in China

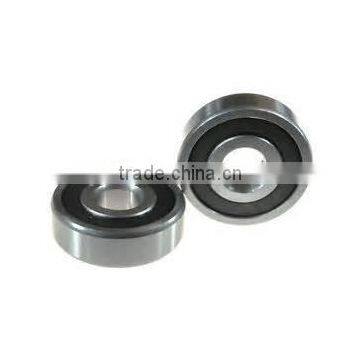

604-2RS Ball Bearing Made in China
- Shanghai
- T/T D/P D/A Credit Card
You May Like
Product Details
| Brand Name | P&D | Bore Size | 3, 65 | |
| Outside Diameter | 9, 90 | Model Number | 604-rs | |
| Precision Rating | P0 P6 P5 P4 P2 | Seals Type | ZZ 2RS OPEN | |
| Number of Row | Single Row | Place of Origin | Jiangsu, China |
Product Description

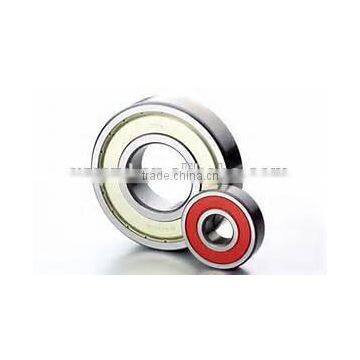

Deep groove ball bearing is a kind of the most common rolling bearing. The basic type of deep groove ball bearing is composed of an outer ring, a ring, a group of steel ball and a group of retainers. Deep groove ball bearing has a single row and double row two types, and also has sealed bearing and open bearing, open refers to the bearing without sealing structure,sealing type deep groove ball into the dust seal and oil seal. Dust seal cover material for steel plate stamping, plays only a simple prevent dust from entering the bearing raceway. Oil proof type contact type oil seal, can effectively prevent bearing grease inside the spillover.
Applications:
Deep groove ball bearing can be used for transmission, instruments and meters, electric machinery, household electrical appliances, internal combustion engines, transportation vehicles, agricultural machinery, construction machinery, engineering machinery, roller skate,yo-yo etc.
Deep Grove ( Radial ) – Quality bearing | ||
ISO Certificate | ISO 9001:2008 | |
Dimension | D (Outside) | 12 mm |
d (Inside) Bore | 4mm | |
B (Width) | 4 mm | |
ABEC Tolerance Codes | ABEC 1 | |
RPM Limit | Grease 33200 rpm | |
Vibration Level | V1 | |
Internal Clearance Codes | C3 | |
Cross Reference Interchange | SKF 2RS1 TORR PP FAA PP FAG 2RS NSK DDU NTN LLU | |
Basic Load Ratings | Cr KN = 2.358 | |
Cor KN = 0.954 | ||
Shield/Closure codes | 2RS (Two side rubber seals) | |
Lubrication | Greased– Wide Temperature Range: - 20 C to 120 C | |
|
| |
