water cooling heat exchanger
- 30000 Set / Sets per Month
- Shanghai China
- T/T Credit Card
You May Like
-
JQ2B gasket plate heat exchanger for oil
-
A1 series Plate Type heat exchanger for water
-
JQ8M plate heat exchanger,gasket type heat exchanger
-
JQ10B Plate heat exchanger ,high heat transfer efficiency,suit big flow rate,heat exchanger manufacture
-
JQ12B plate heat exchanger for oil,heat exchanger manufacture,suit high flow rate medium.
-
Brazed plate heat exchanger ,small and high efficiency,heat exchanger manufacture
Product Details
Condition | New | Place of Origin | Jiangsu, China | |
Brand Name | 6Z | Model Number | A1-A12 | |
Structure | Plate Heat Exchanger | Liquid Flow Rate | 10-1300 m3 | |
Maximum Working Pressure | 16 bar | Certification | CE | |
Warranty | 1year | After-sales Service Provided | Engineers available to service machinery overseas |
plywood case or upon your require
Product Description
Professional manufacture ,design PLATE HEAT EXCHANGER as client working condition.
Material of Plate | Suited Liquid Kinds | ||
Stainless Steel (SUS304.316 Etc) | Pure Water, Normal Water, Oil for eating, Mineral Oil | ||
Ti, Ti-pd | Sea Water, Saline Water, Mineral Water | ||
20Cr, 18Ni, 6Mo (254SMO) | Dilute Sulphuric Acid, Organic Water Solution | ||
Ni | High-temp and concentration caustic soda | ||
Hastelloy (C276, D205, B2G) | Concentration Sulphuric Acid, Hydrochloric acid, Phosphoric acid | ||
Material of Gasket | Operating Temperature ° C | Suited Liquid Kinds | |
NBR | -15~+135° C | Water, Sea Water, Mineral Oil, Salty Water | |
EPDM | -25~+180° C | Hot Water, Steam, Acid, Caustic | |
F26 | -55~+230° C | Acid, Caustic, Fluid | |
TPF | 0~+160° C | Concentrated Acid, Caustic, High-temperature Oil, Steam |

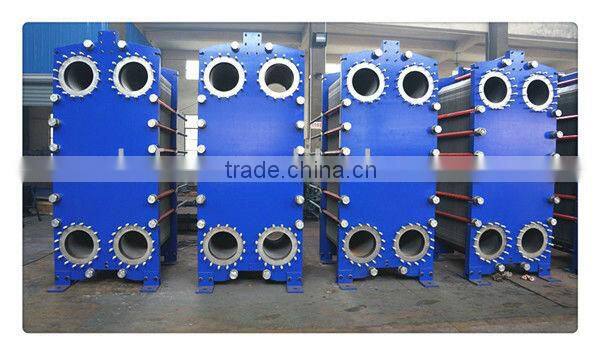

Production Display
Company Profile

WHO WE ARE Jiangyin 6Z Heat Exchanger Manufacturing Co., Ltd. was re-founded in 2011. Our company grew out of Jiangyin Jinan Machinery Company which was established in 2007. The registration capital is increased to RMB5,000,000. The plant covers an area of more than 3,000 square meters. Jiangyin 6Z Heat Exchanger Manufacturing Co., Ltd is a professional high-tech enterprise specialized in heat transfer product research and development, production, sales and service. We have more than 10 years of manufacturing experience. Our products include plate heat exchangers, intelligent heat exchanger units and related parts such as plates and gaskets, which are widely used in chemical, metallurgy, steel, electricity, pharmaceutical, HVAC, water supply and drainage. WHY CHOOSE US Our company specializes in manufacturing plate heat exchangers. We have 31 professional technicians and over 20 sets specialized equipment such as punching and drilling machines. The annual output of our company is around 50,000 units. The products have got ISO9001 certification. We strictly implement ISO9001 quality assurance system requirements in project design, procurement, and installation instructions. We take quality as life, take efficiency and environmental protection as business ideas, and take customer satisfaction as our ultimate goal. OUR CLIENTS Our company has annual sales of RMB 1.5 billion with the plate heat exchanger and part sales of RMB 0.3 million, among which exports covers 30% - 40%. The main export is going to Southeast Asia and Europe. The products are very popular there. WHERE WE ARE Jiangyin 6Z Heat Exchanger Manufacturing Co., Ltd is located in Jiangyin City, Jiangsu Province, which is near Shanghai with the convenient transportation access. COMPANY PHILOSOPHY Adhering to the business philosophy of "Use Golden Brand to Be a Model of the Industry ", we will provide you with first-class products and first-class service. We believe that we will always be your trusted partner.
